LCR-U02002 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K

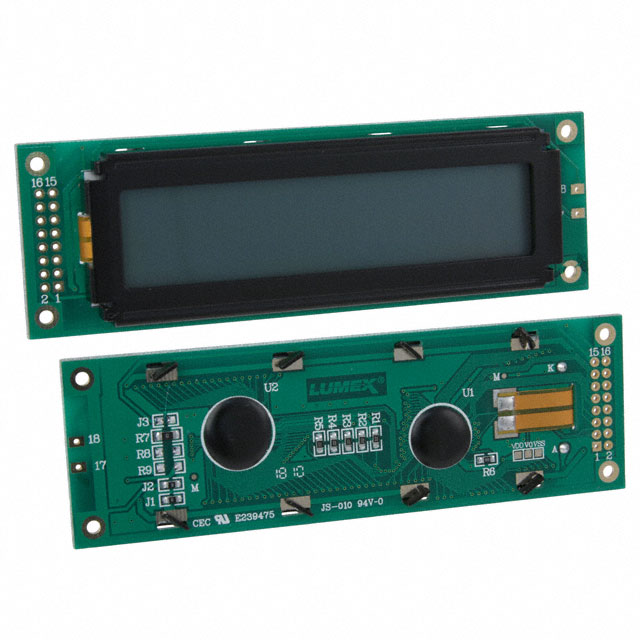

LCD MOD 40DIG 20X2 TRANSFLCT WHT
| Part | Interface | Voltage - Supply [Min] | Voltage - Supply [Max] | Backlight | Operating Temperature [Max] | Operating Temperature [Min] | Background Color | Display Type | Outline L x W x H [y] | Outline L x W x H [x] | Outline L x W x H [z] | Viewing Area [x] | Viewing Area [y] | Display Format [x] | Display Format [y] | Number of Characters | Character Size [y] | Character Size [z] | Dot Size [custom] | Dot Size [custom] | Display Mode | Character Format [x] | Character Format [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | Parallel | 4.7 V | 5.3 V | LED - White | 85 °C | -40 C | Green | STN - Super-Twisted Nematic | 37 mm | 116 mm | 9.8 mm | 83 mm | 18.6 mm | 20 | 2 | 40 | 3.7 mm | 5.88 mm | 0.65 mm | 0.6 mm | Transflective | 5 Dots | 8 Dots |
