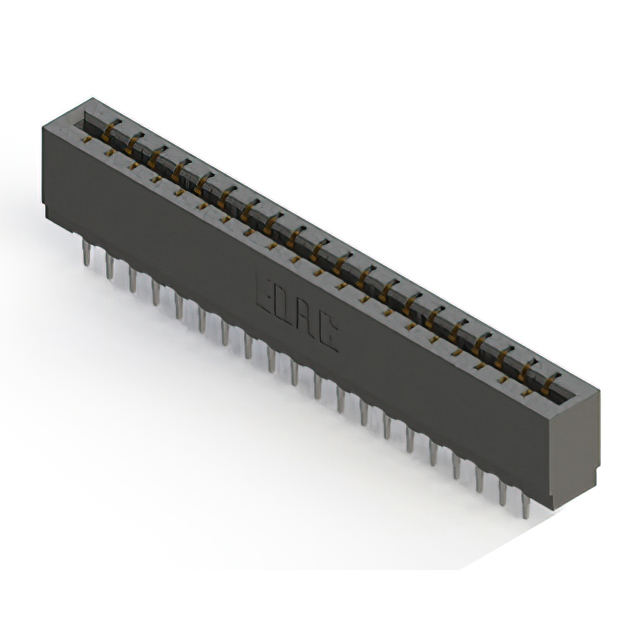

717-040 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 40POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Number of Positions/Bay/Row | Contact Material | Pitch | Pitch | Number of Rows [custom] | Mounting Type | Gender | Contact Finish Thickness | Contact Finish Thickness | Color | Card Thickness [Max] | Card Thickness [Min] | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Type | Contact Finish | Read Out | Termination | Termination Rows | Number of Rows | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | 20 Bay/Row | Copper Alloy | 3.96 mm | 0.156 in | 2 | Through Hole | Female | 30 Áin | 0.76 Ám | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | -40 C | 105 ░C | 40 | Cantilever Make Before Break | Gold | Dual | Press-Fit | |||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 3.96 mm | 0.156 in | Through Hole | Female | 30 Áin | 0.76 Ám | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | -40 C | 105 ░C | 40 | Cantilever | Gold | Single | Press-Fit Wire Wrap | 1 | 1 | 40 |
