3401-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC
| Part | Terminal Type | Contact Finish | Terminal Style | Insulation | Contact Material | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Contact Finish Thickness | Contact Finish Thickness | Length - Above Flange [x] | Length - Above Flange [x] | Length - Overall | Length - Overall | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Termination | Length - Below Flange [x] | Length - Below Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | PC Pin | Tin | Single End Slotted | Non-Insulated | Brass Alloy | 0.03 in | 0.76 mm | 200 Áin | 5.08 Ám | 0.361 in | 9.17 mm | 13.46 mm | 0.53 in | 1.45 mm | 0.057 in | Through Hole | 0.072 " | 1.83 mm | Press-Fit | 0.169 " | 4.29 mm | 0.02 in | 0.51 mm | |

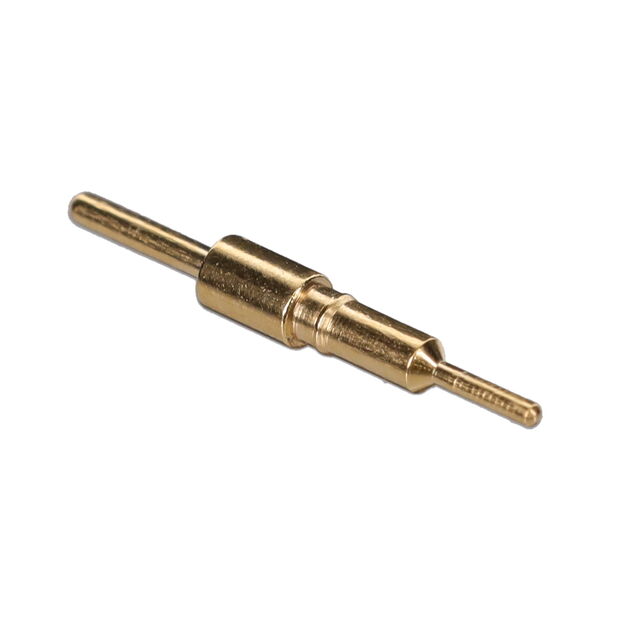

 Mill-Max Manufacturing Corp. | PC Pin | Gold | Double End | Non-Insulated | Brass Alloy | 0.02 in | 0.51 mm | 10 Áin | 0.25 Ám | 0.169 in | 4.29 mm | 13.46 mm | 0.53 in | 1.45 mm | 0.057 in | Through Hole | 0.072 " | 1.83 mm | Press-Fit | 0.261 " | 6.63 mm | 0.03 in | 0.76 mm | |

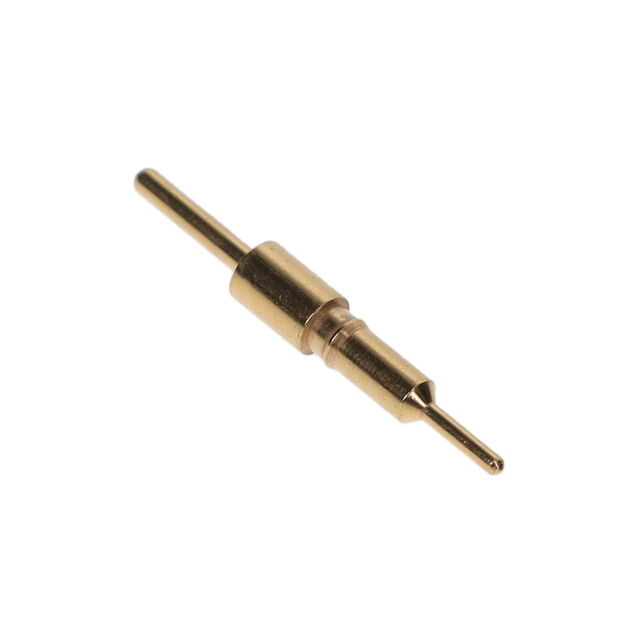

 Mill-Max Manufacturing Corp. | PC Pin | Gold | Double End | Non-Insulated | Brass Alloy | 0.02 in | 0.51 mm | 20 µin | 0.51 µm | 0.169 in | 4.29 mm | 13.46 mm | 0.53 in | 1.45 mm | 0.057 in | Through Hole | 0.072 " | 1.83 mm | Press-Fit | 0.261 " | 6.63 mm | 0.03 in | 0.76 mm |
