078347 Series

Manufacturer: Molex

Catalog

IMPACT PWR3PR RAHDR LTHDN PF.76A

Part	Contact Finish	Connector Type	Color	Voltage Rating	Number of Positions Loaded	Connector Style	Number of Rows	Material Flammability Rating	Mounting Type	Contact Layout, Typical	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Positions	Connector Usage	Number of Columns	Pitch [x]	Pitch [x]	Current Rating (Amps)
Molex 0783471044
Molex 0783472011	Gold	Header Male Blades	Black	250 VDC	All	Hold Down Right Impact	2	UL94 V-0	Board Edge Right Angle Through Hole	8 Power	85 °C	-55 °C	Press-Fit	0.76 Ám	30 Áin	Board Guide	8

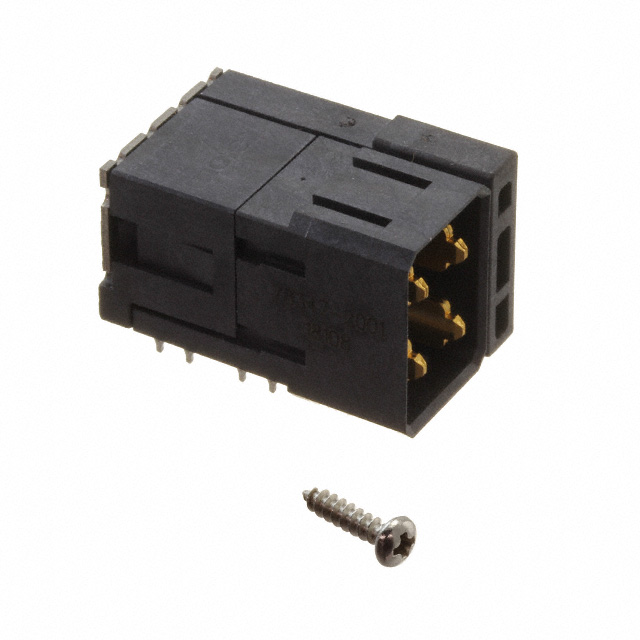

Molex 0783472001	Gold	Header Male Blades	Black	250 VDC	All	Hold Down Right Impact	2	UL94 V-0	Board Edge Right Angle Through Hole	4 Power	85 °C	-55 °C	Press-Fit	0.76 Ám	30 Áin	Board Guide	4
Molex 0783471033	Gold	Header Male Blades	Black		All	Impact	2	UL94 V-0	Through Hole Right Angle	8 Power	85 °C	-55 °C	Press-Fit	0.76 Ám	30 Áin	Board Guide	8	Backplane	4	5.2 mm	0.205 in
Molex 0783471001	Gold	Header Male Blades	Black	250 VDC	All	Hold Down Left Impact	2	UL94 V-0	Board Edge Right Angle Through Hole	4 Power	85 °C	-55 °C	Press-Fit	0.76 Ám	30 Áin	Board Guide	4
Molex 0783471042
Molex 0783471002	Gold	Header Male Blades	Black	250 VDC	All	Hold Down Left Impact	2	UL94 V-0	Through Hole Right Angle	4 Power	85 °C	-55 °C	Press-Fit	0.76 Ám	30 Áin	Board Guide	4		2	5.2 mm	0.205 in	15 A
Molex 0783471021	Gold	Header Male Blades	Black	250 VDC	All	Hold Down Left Impact	2	UL94 V-0	Board Edge Right Angle Through Hole	8 Power	85 °C	-55 °C	Press-Fit	0.76 Ám	30 Áin	Board Guide	8		4
Molex 0783472002	Gold	Header Male Blades	Black	250 VDC	All	Hold Down Right Impact	2	UL94 V-0	Board Edge Right Angle Through Hole	4 Power	85 °C	-55 °C	Press-Fit	0.76 Ám	30 Áin	Board Guide	4		2
