KLAPX-CP Series
Manufacturer: Kycon, Inc.
Beta
⌘K
COUPLER RJ45 8P8C SHIELDED WITH
| Part | Contact Material | Housing Material | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Convert To (Adapter End) | Shielding | Ratings | Type | Mounting Type | Convert From (Adapter End) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

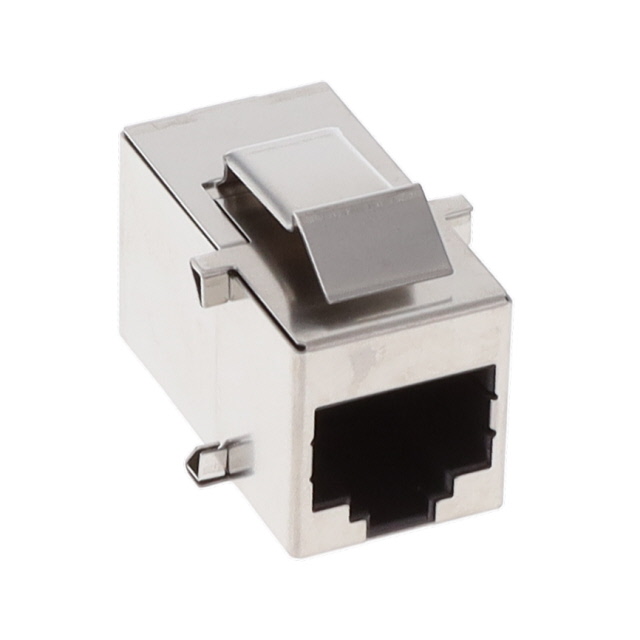

 Kycon, Inc. | Phosphor Bronze | Polyester | 50 µin | 1.27 µm | Gold | Stainless Steel | 85 °C | -40 C | Jack 8p8c (RJ45) | Shielded | Cat6 | Coupler | Panel Mount | Jack 8p8c (RJ45) | |

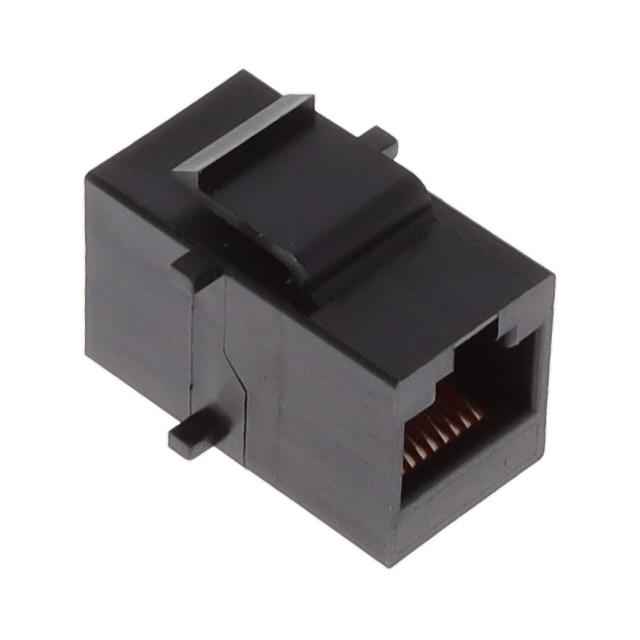

 Kycon, Inc. | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Gold | 85 °C | -40 C | Jack 8p8c (RJ45) | Unshielded | Coupler | Panel Mount | Jack 8p8c (RJ45) | Flash | ||||

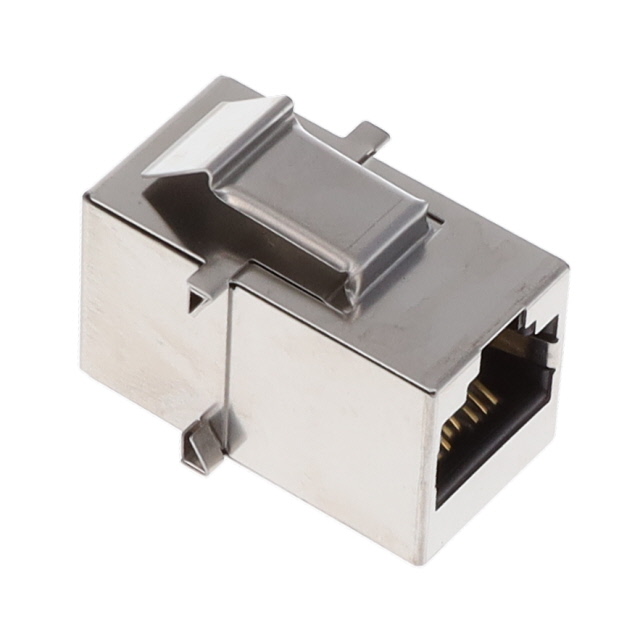

 Kycon, Inc. | Phosphor Bronze | Polybutylene Terephthalate (PBT) | 30 Áin | 0.76 Ám | Gold | Stainless Steel | Jack 8p8c (RJ45) | Shielded | Cat5e | Coupler | Panel Mount | Jack 8p8c (RJ45) | |||

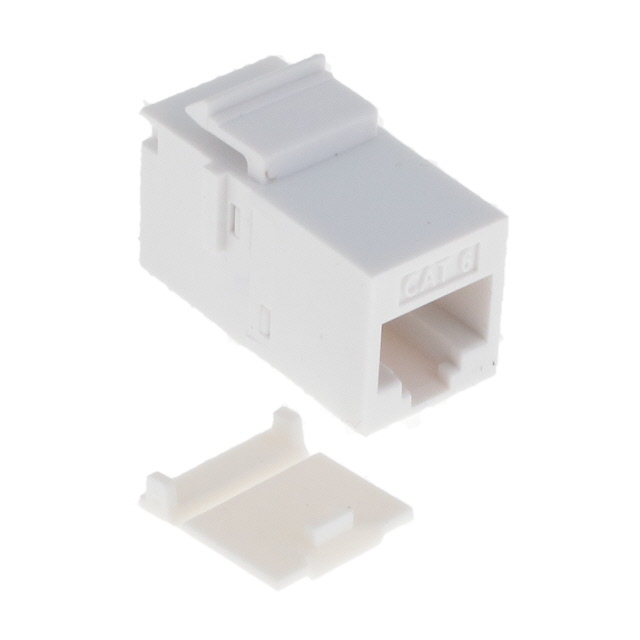

 Kycon, Inc. | Phosphor Bronze | Acrylonitrile Butadiene Styrene (ABS) | 50 µin | 1.27 µm | Gold | 60 °C | -40 C | Jack 8p8c (RJ45) | Unshielded | Cat6 | Coupler | Free Hanging (In-Line) | Jack 8p8c (RJ45) | ||
 Kycon, Inc. | Phosphor Bronze | Polyester | 15 µin | 0.38 µm | Gold | Stainless Steel | 85 °C | -40 C | Jack 8p8c (RJ45) | Shielded | Cat6 | Coupler | Panel Mount | Jack 8p8c (RJ45) |
