MB2085L Series

Catalog

SWITCH PUSHBUTTON DPDT 6A 125V

Part	Mechanical Life	Electrical Life	Actuator Marking	Switch Function	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Type	Actuator Type	Current Rating (Amps)	Circuit	Mounting Type	Features	Color - Actuator/Cap
NKK Switches MB2085LS1W03	100000 Cycles	25000 Steps	No Marking	On-On	30 V	6.5 mm	PC Pin	85 °C	-30 ░C	125 V	Standard	Plunger for Cap	3 A 6 A	DPDT	Panel Mount Rear	Epoxy Sealed Terminals

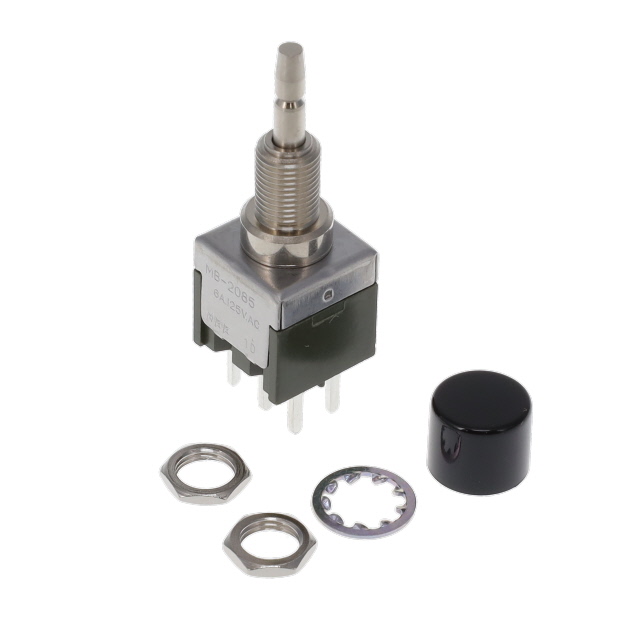

NKK Switches MB2085LS1W03-CA	100000 Cycles	25000 Steps	No Marking	On-On	30 V	6.5 mm	PC Pin	85 °C	-30 ░C	125 V	Standard	Button Round	3 A 6 A	DPDT	Panel Mount Rear	Epoxy Sealed Terminals	Black
NKK Switches MB2085LS1W03-BG	100000 Cycles	25000 Steps	No Marking	On-On	30 V	6.5 mm	PC Pin	85 °C	-30 ░C	125 V	Standard	Button Round	3 A 6 A	DPDT	Panel Mount Rear	Epoxy Sealed Terminals	Blue

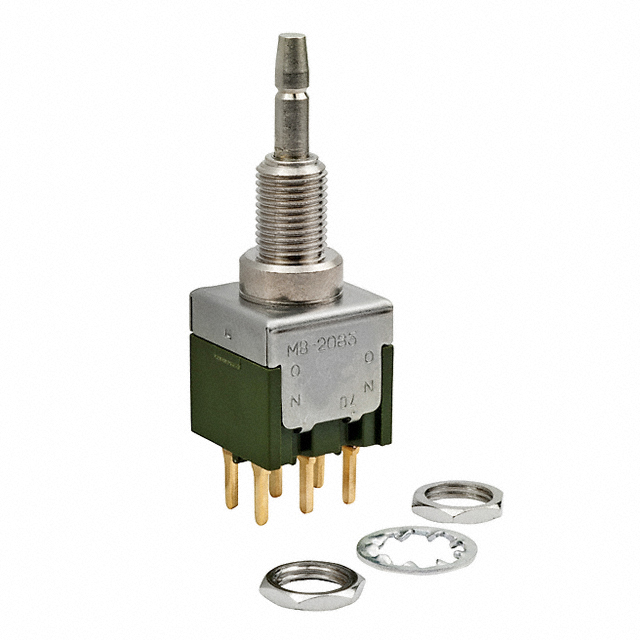

NKK Switches MB2085LD1G03	100000 Cycles	50000 Cycles	No Marking	On-On	28 V	6.5 mm	PC Pin	85 °C	-30 ░C	28 V	Standard	Plunger for Cap	0.4 VA	DPDT	Panel Mount Rear	Epoxy Sealed Terminals
NKK Switches MB2085LD1W01-CA	100000 Cycles	25000 Steps	No Marking	On-On	30 V	6.5 mm	Solder Lug	85 °C	-30 ░C	125 V	Standard	Button Round	3 A 6 A	DPDT	Panel Mount Rear	Epoxy Sealed Terminals	Black
NKK Switches MB2085LS1W01-BC	100000 Cycles	25000 Steps	No Marking	On-On	30 V	6.5 mm	Solder Lug	85 °C	-30 ░C	125 V	Standard	Button Round	3 A 6 A	DPDT	Panel Mount Rear	Epoxy Sealed Terminals	Red
NKK Switches MB2085LS1W01-CB	100000 Cycles	25000 Steps	No Marking	On-On	30 V	6.5 mm	Solder Lug	85 °C	-30 ░C	125 V	Standard	Button Round	3 A 6 A	DPDT	Panel Mount Rear	Epoxy Sealed Terminals	White
NKK Switches MB2085LD1W01	100000 Cycles	25000 Steps	No Marking	On-On	30 V	6.5 mm	Solder Lug	85 °C	-30 ░C	125 V	Standard	Plunger for Cap	3 A 6 A	DPDT	Panel Mount Rear	Epoxy Sealed Terminals
