UB-09 Series

Catalog

BUZZER PIEZO 35.81MM PNL MNT

Part	Termination	Approval Agency	Operating Mode	Sound Pressure Level (SPL)	Current - Supply [Min]	Current - Supply [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ingress Protection	Voltage Range [Min]	Voltage Range [Max]	Technology	Size / Dimension [diameter]	Size / Dimension [diameter]	Frequency	Driver Circuitry	Port Location	Input Type	Mounting Type	Termination	Termination

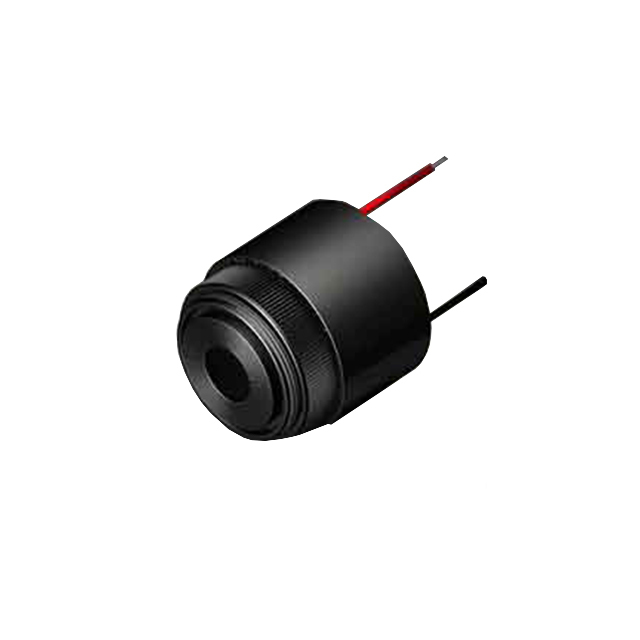

Floyd Bell Inc UB-09-515-W(S)	Wire Leads	UL UR	Pulse Slow	109 dB	30 mA	60 mA	1.38 in	35.05 mm	IP68 - Dust Tight Waterproof	5 VDC	15 V	Piezo	1.41 in	35.81 mm	2.1 kHz	Indicator Internally Driven	Top	DC	Panel Mount
Floyd Bell Inc UB-09-628-S(S)	Screw Terminal Quick Connect Tab	UL UR	Pulse Slow	109 dB	20 mA	50 mA	1.38 in	35.05 mm	IP68 - Dust Tight Waterproof	6 VDC	28 V	Piezo	1.41 in	35.81 mm	2.1 kHz	Indicator Internally Driven	Top	DC	Panel Mount	0.25 "	6.35 mm

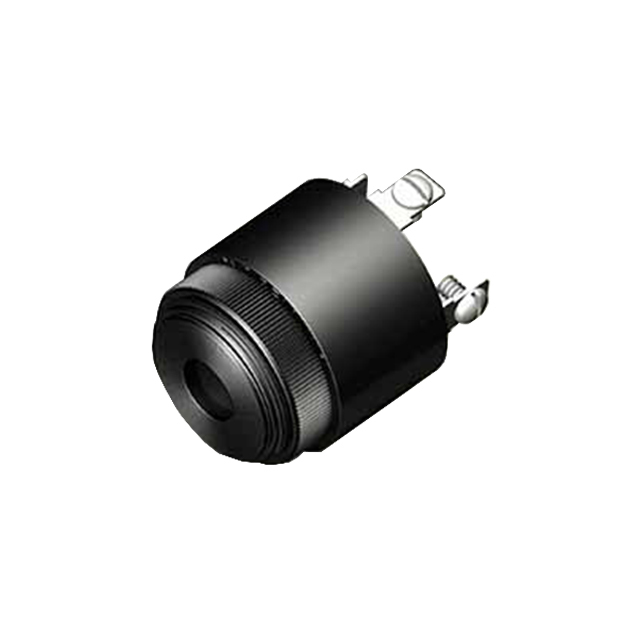

Floyd Bell Inc UB-09-515-S(F)D	Screw Terminal Quick Connect Tab	UL UR	Fast Pulse Single Tone	109 dB	30 mA	60 mA	1.38 in	35.05 mm	IP68 - Dust Tight Waterproof	5 VDC	15 V	Piezo	1.41 in	35.81 mm	2.1 kHz	Indicator Internally Driven	Top	DC	Panel Mount	0.25 "	6.35 mm
Floyd Bell Inc UB-09-628-W(F)	Wire Leads	UL UR	Fast Pulse	109 dB	20 mA	50 mA	1.38 in	35.05 mm	IP68 - Dust Tight Waterproof	6 VDC	28 V	Piezo	1.41 in	35.81 mm	2.1 kHz	Indicator Internally Driven	Top	DC	Panel Mount
Floyd Bell Inc UB-09-515-Q(S)D	Quick Connect Tab	UL UR	Pulse Single Tone Slow	109 dB	30 mA	60 mA	1.38 in	35.05 mm	IP68 - Dust Tight Waterproof	5 VDC	15 V	Piezo	1.41 in	35.81 mm	2.1 kHz	Indicator Internally Driven	Top	DC	Panel Mount	0.25 "	6.35 mm

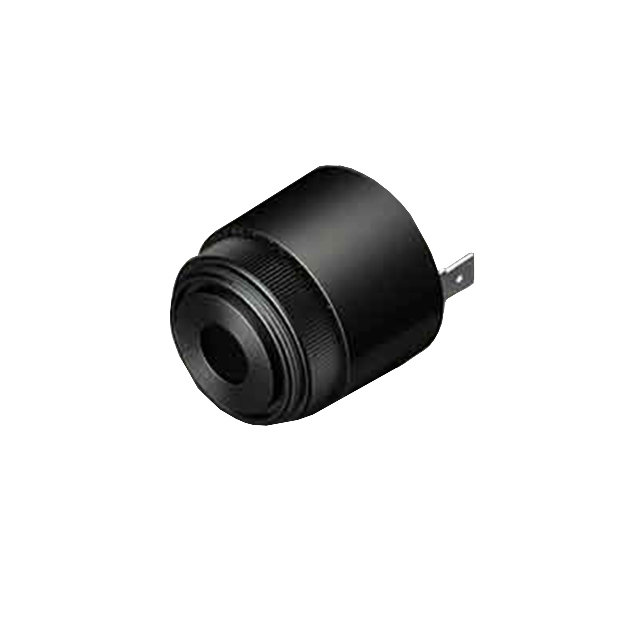

Floyd Bell Inc UB-09-515-Q(F)	Quick Connect Tab	UL UR	Fast Pulse	109 dB	30 mA	60 mA	1.38 in	35.05 mm	IP68 - Dust Tight Waterproof	5 VDC	15 V	Piezo	1.41 in	35.81 mm	2.1 kHz	Indicator Internally Driven	Top	DC	Panel Mount	0.25 "	6.35 mm
Floyd Bell Inc UB-09-515-S(S)D	Screw Terminal Quick Connect Tab	UL UR	Pulse Single Tone Slow	109 dB	30 mA	60 mA	1.38 in	35.05 mm	IP68 - Dust Tight Waterproof	5 VDC	15 V	Piezo	1.41 in	35.81 mm	2.1 kHz	Indicator Internally Driven	Top	DC	Panel Mount	0.25 "	6.35 mm
Floyd Bell Inc UB-09-515-S(S)	Screw Terminal Quick Connect Tab	UL UR	Pulse Slow	109 dB	30 mA	60 mA	1.38 in	35.05 mm	IP68 - Dust Tight Waterproof	5 VDC	15 V	Piezo	1.41 in	35.81 mm	2.1 kHz	Indicator Internally Driven	Top	DC	Panel Mount	0.25 "	6.35 mm
Floyd Bell Inc UB-09-628-S(S)D	Screw Terminal Quick Connect Tab	UL UR	Pulse Single Tone Slow	109 dB	20 mA	50 mA	1.38 in	35.05 mm	IP68 - Dust Tight Waterproof	6 VDC	28 V	Piezo	1.41 in	35.81 mm	2.1 kHz	Indicator Internally Driven	Top	DC	Panel Mount	0.25 "	6.35 mm
Floyd Bell Inc UB-09-628-Q(S)D	Quick Connect Tab	UL UR	Pulse Single Tone Slow	109 dB	20 mA	50 mA	1.38 in	35.05 mm	IP68 - Dust Tight Waterproof	6 VDC	28 V	Piezo	1.41 in	35.81 mm	2.1 kHz	Indicator Internally Driven	Top	DC	Panel Mount	0.25 "	6.35 mm
