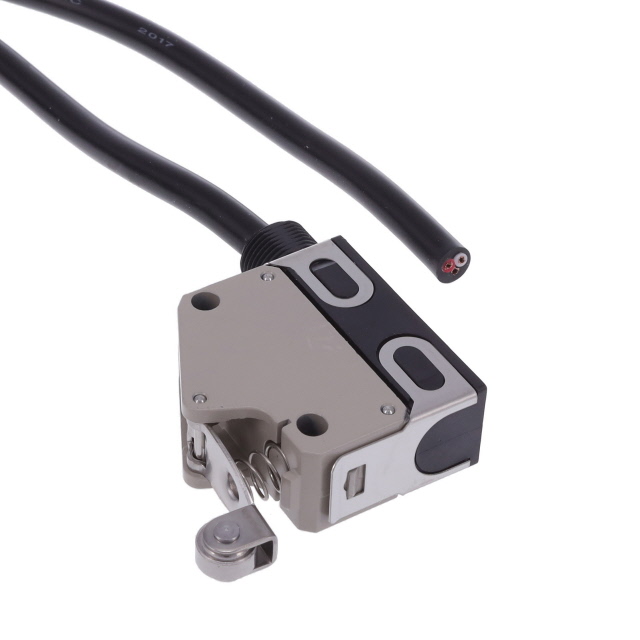

D4E-1G24 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACTION SPDT 5A 125V
| Part | Mechanical Life | Termination Style | Circuit | Overtravel [custom] | Overtravel [custom] | Pretravel | Pretravel | Differential Travel | Differential Travel | Actuator Type | Ingress Protection | Current Rating (Amps) | Operating Force | Release Force | Operating Position | Operating Position | Mounting Type | Voltage Rating - AC | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 10000000 Cycles | Cable Leads | SPDT | 0.158 in | 4 mm | 2 mm | 0.08 in | 0.012 in | 0.3 mm | Lever Roller | IP67 - Dust Tight Waterproof | 5 A | 400 gf | 80 gf | 23.1 mm | 0.909 in | Chassis Mount | 125 V | On-Mom | -10 °C | 80 °C | 30 V | 500000 Cycles |
