TPS40041 Series
Manufacturer: Texas Instruments
Beta
⌘K
2.25 TO 5.5 V INPUT, 600 KHZ, SYNCHRONOUS BUCK CONTROLLER WITH LOW PIN COUNT
| Part | Frequency - Switching | Control Features | Synchronous Rectifier | Output Configuration | Mounting Type | Supplier Device Package | Function | Duty Cycle (Max) | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Package / Case | Output Phases | Output Type | Clock Sync | Operating Temperature [Min] | Operating Temperature [Max] | Topology | Number of Outputs | Board Type | Utilized IC / Part | Regulator Topology | Supplied Contents | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output | Outputs and Type | Outputs and Type | Main Purpose |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | 600 kHz | Enable | Positive | Surface Mount | 8-SON (3x3) | Step-Down | 95 % | 2.25 V | 5.5 V | 8-VDFN Exposed Pad | 1 | Transistor Driver | -40 °C | 125 ¯C | Buck | 1 | |||||||||||||
 Texas Instruments | 600 kHz | Enable | Positive | Surface Mount | 8-SON (3x3) | Step-Down | 95 % | 2.25 V | 5.5 V | 8-VDFN Exposed Pad | 1 | Transistor Driver | -40 °C | 125 ¯C | Buck | 1 | |||||||||||||
Texas Instruments | 600 kHz | Enable | Positive | Surface Mount | 8-SON (3x3) | Step-Down | 95 % | 2.25 V | 5.5 V | 8-VDFN Exposed Pad | 1 | Transistor Driver | -40 °C | 125 ¯C | Buck | 1 | |||||||||||||

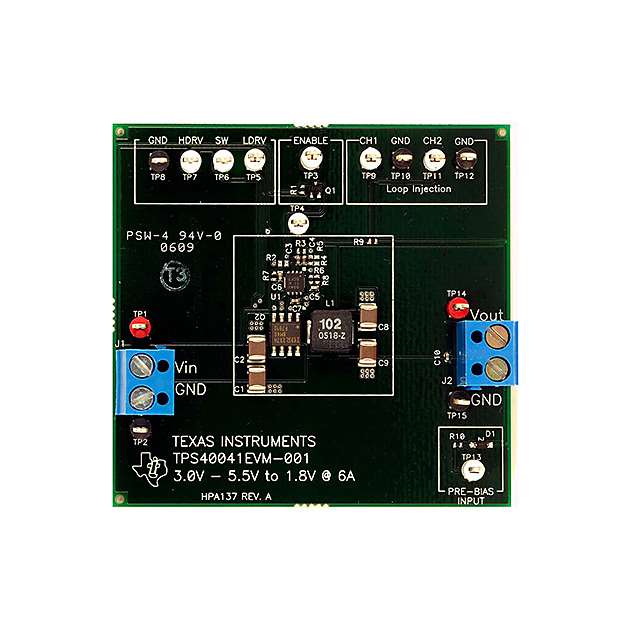

 Texas Instruments | 600 kHz | Fully Populated | TPS40041 | Buck | Board(s) | 1.8 V | 5.5 V | 3 V | 6 A | Non-Isolated | 1 | DC/DC Step Down |
