2.5 mm System Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

AUTOMOTIVE CONNECTORS 2.5SIG DLOCK PLG HSG 8P

Part	Note	Number of Positions	Color	Contact Type	Pitch	Pitch	Contact Termination	Mounting Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Connector Type	Fastening Type	Mated Stacking Heights	Applications	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Insulation Color	Voltage Rating	Overall Contact Length	Overall Contact Length	Contact Material	Features	Style	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Material Flammability Rating	Shrouding	Termination	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Pin or Socket	Contact Finish

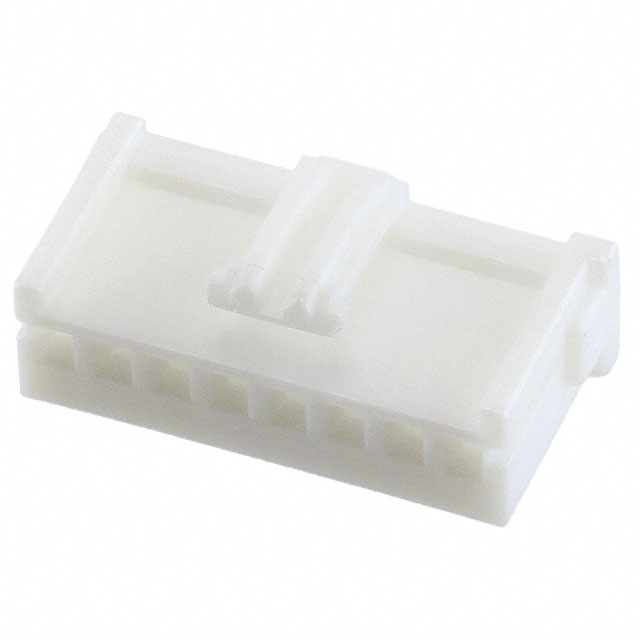

TE Connectivity AMP Connectors 917692-1	Contacts Not Included	8	Natural	Female Socket	2.5 mm	0.098 in	Crimp	Free Hanging (In-Line)	1	-30 ░C	105 ░C	Nylon 6/6 Polyamide (PA66)	Plug	Locking Ramp
TE Connectivity AMP Connectors 917727-1		7		Male Pin				Through Hole	1	-30 ░C	105 ░C	Glass Filled Nylon 6/6 Polyamide (PA66)	Header	Latch Holder	19.2 mm	General Purpose	Square	2.5 mm	0.098 in	Tin	Natural	50 V	0.626 in	15.9 mm	Copper Alloy	Board Guide	Board to Cable/Wire	4.7 mm	0.185 in	All	UL94 V-0	Shrouded - 4 Wall	Kinked Pin Solder	3 A	0.602 in	15.29 mm	0.126 "	3.2 mm
TE Connectivity AMP Connectors 917764-1							Crimp																																31.5 µin	0.8 µm	22 AWG	19.5 AWG	Tab	Tin
TE Connectivity AMP Connectors 917695-1	Contacts Not Included	11	Natural	Female Socket	2.5 mm	0.098 in	Crimp	Free Hanging (In-Line)	1	-30 ░C	105 ░C	Nylon 6/6 Polyamide (PA66)	Plug	Locking Ramp

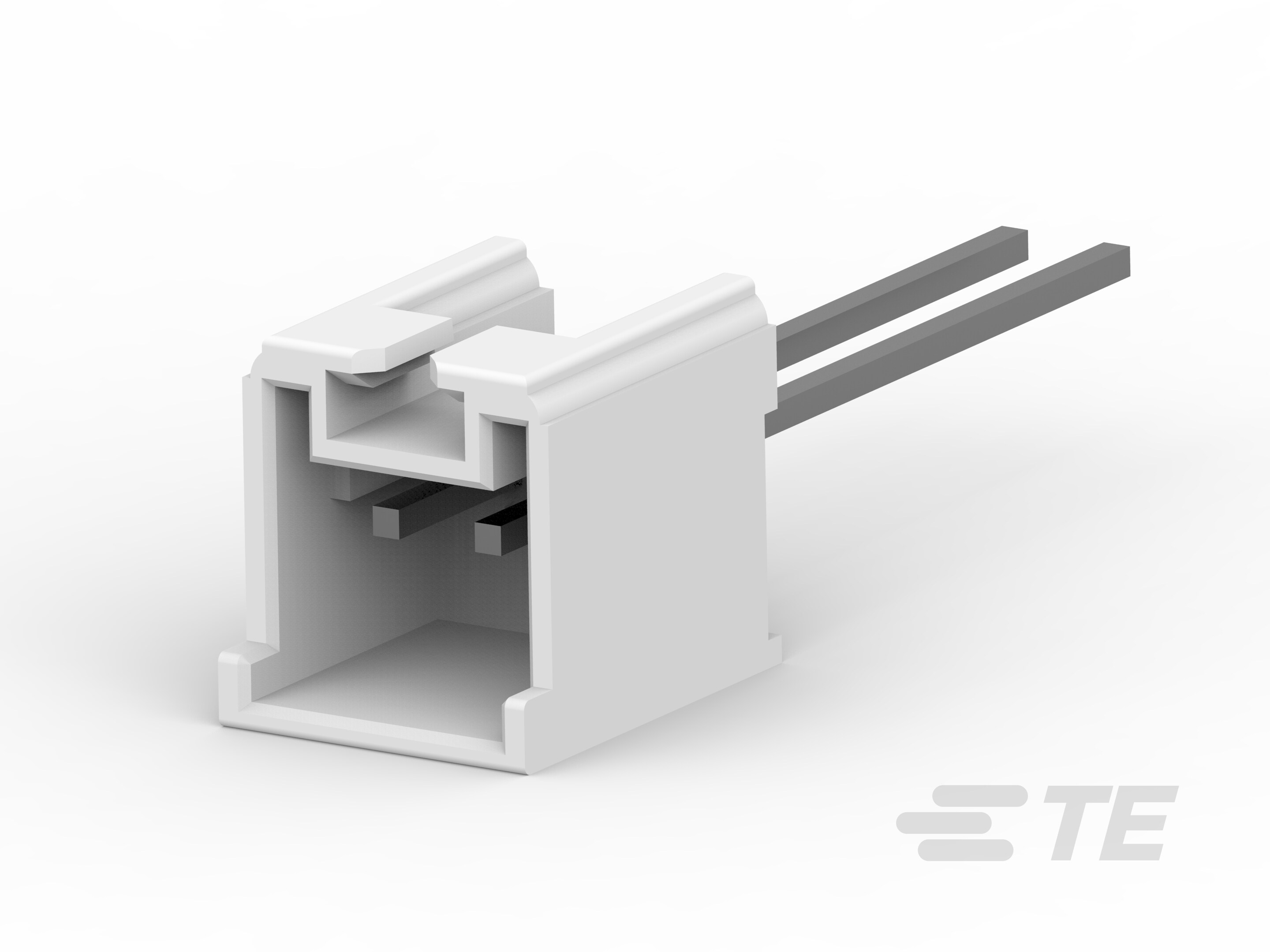

TE Connectivity AMP Connectors 917894-1		2		Male Pin				Through Hole	1	-30 ░C	105 ░C	Glass Filled Nylon 6/6 Polyamide (PA66)	Header	Latch Holder	13.7 mm	General Purpose	Square	2.5 mm	0.098 in	Tin	Natural	50 V	0.41 in	10.41 mm	Copper Alloy	Board Guide	Board to Cable/Wire	4.7 mm	0.185 in	All	UL94 V-0	Shrouded - 4 Wall	Kinked Pin Solder	3 A	0.386 in	9.8 mm	0.126 "	3.2 mm

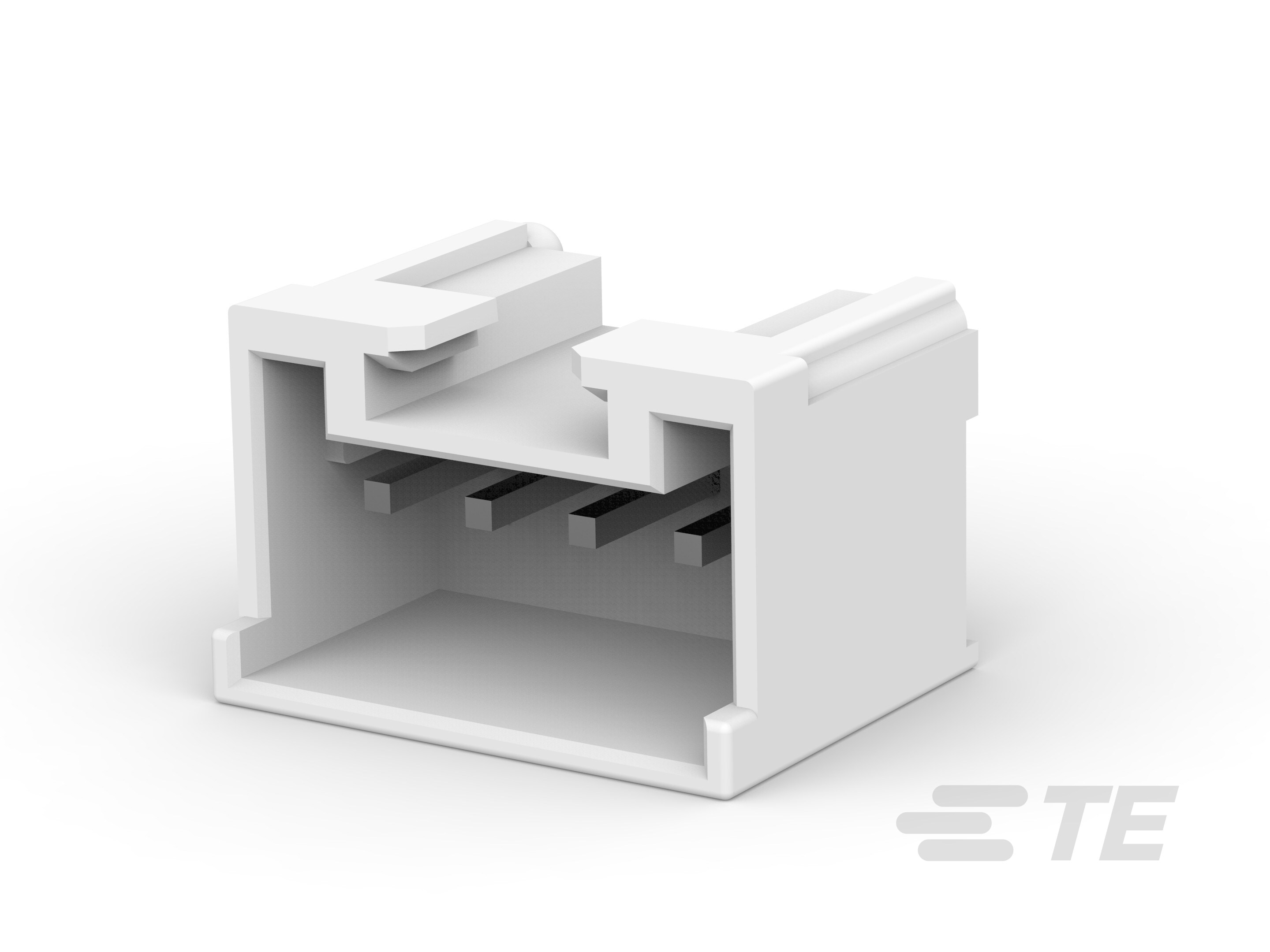

TE Connectivity AMP Connectors 917782-1		4		Male Pin				Through Hole	1	-30 ░C	105 ░C	Glass Filled Nylon 6/6 Polyamide (PA66)	Header	Latch Holder	13.7 mm	General Purpose	Square	2.5 mm	0.098 in	Tin	Natural	50 V	0.41 in	10.41 mm	Copper Alloy	Board Guide	Board to Cable/Wire	4.7 mm	0.185 in	All	UL94 V-0	Shrouded - 4 Wall	Kinked Pin Solder	3 A	0.386 in	9.8 mm	0.126 "	3.2 mm
