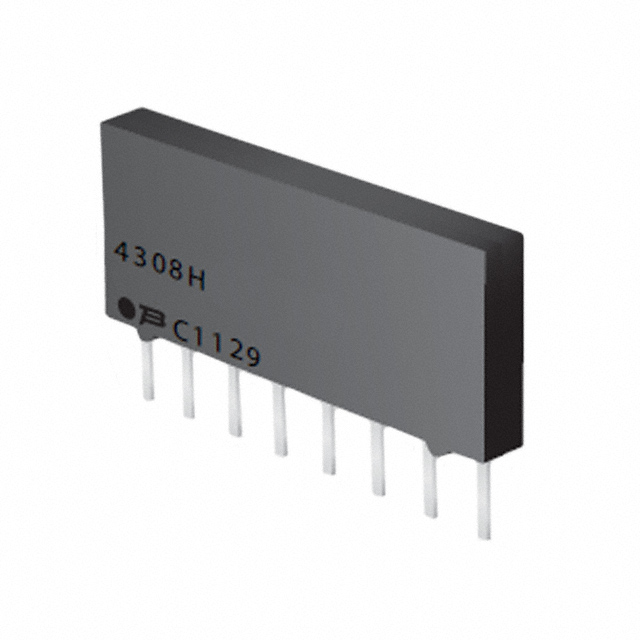

4308H Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES ARRAY 4 RES 33 OHM 8SIP
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) | Mounting Type | Temperature Coefficient | Resistor-Ratio-Drift | Number of Pins | Resistance (Ohms) | Package / Case | Number of Resistors | Circuit Type | Supplier Device Package | Tolerance | Power Per Element | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Tolerance | Resistance (Ohms) | Resistance (Ohms) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 0.35 in | 8.89 mm | Through Hole | 250 ppm/°C | 50 ppm/°C | 8 | 33 Ohms | 8-SIP | 4 | Isolated | 8-SIP | ±1Ohm | 500 mW | -55 C | 125 °C | 19.91 mm | 0.085 in | 0.784 in | 2.16 mm | |||
 Bourns Inc. | 0.35 in | 8.89 mm | Through Hole | 100 ppm/°C | 50 ppm/°C | 8 | 2.2 kOhms | 8-SIP | 4 | Isolated | 8-SIP | 500 mW | -55 C | 125 °C | 19.91 mm | 0.085 in | 0.784 in | 2.16 mm | 2 % | |||
Bourns Inc. | 0.35 in | 8.89 mm | Through Hole | 100 ppm/°C | 50 ppm/°C | 8 | 8-SIP | 4 | Isolated | 8-SIP | 500 mW | -55 C | 125 °C | 19.91 mm | 0.085 in | 0.784 in | 2.16 mm | 2 % | 6.8k | |||
Bourns Inc. | 0.35 in | 8.89 mm | Through Hole | 100 ppm/°C | 50 ppm/°C | 8 | 120 Ohms | 8-SIP | 4 | Isolated | 8-SIP | 500 mW | -55 C | 125 °C | 19.91 mm | 0.085 in | 0.784 in | 2.16 mm | 2 % | |||
Bourns Inc. | 0.35 in | 8.89 mm | Through Hole | 100 ppm/°C | 50 ppm/°C | 8 | 8-SIP | 4 | Isolated | 8-SIP | 500 mW | -55 C | 125 °C | 19.91 mm | 0.085 in | 0.784 in | 2.16 mm | 2 % | 330 Ohms | |||
Bourns Inc. | 0.35 in | 8.89 mm | Through Hole | 100 ppm/°C | 50 ppm/°C | 8 | 8-SIP | 4 | Isolated | 8-SIP | 500 mW | -55 C | 125 °C | 19.91 mm | 0.085 in | 0.784 in | 2.16 mm | 2 % | 4.7 kOhms | |||
Bourns Inc. | 0.35 in | 8.89 mm | Through Hole | 100 ppm/°C | 50 ppm/°C | 8 | 8-SIP | 7 | Bussed | 8-SIP | 300 mW | -55 C | 125 °C | 19.91 mm | 0.085 in | 0.784 in | 2.16 mm | 2 % | 750 Ohms | |||
Bourns Inc. | 0.35 in | 8.89 mm | Through Hole | 250 ppm/°C | 50 ppm/°C | 8 | 39 Ohms | 8-SIP | 4 | Isolated | 8-SIP | ±1Ohm | 500 mW | -55 C | 125 °C | 19.91 mm | 0.085 in | 0.784 in | 2.16 mm | |||
Bourns Inc. | 0.35 in | 8.89 mm | Through Hole | 100 ppm/°C | 50 ppm/°C | 8 | 8-SIP | 7 | Bussed | 8-SIP | 300 mW | -55 C | 125 °C | 19.91 mm | 0.085 in | 0.784 in | 2.16 mm | 2 % | 680 Ohms | |||
Bourns Inc. | 0.35 in | 8.89 mm | Through Hole | 100 ppm/°C | 50 ppm/°C | 8 | 8-SIP | Dual Terminator | 8-SIP | 300 mW | -55 C | 125 °C | 19.91 mm | 0.085 in | 0.784 in | 2.16 mm | 2 % | 180 Ohms 390 Ohms |
