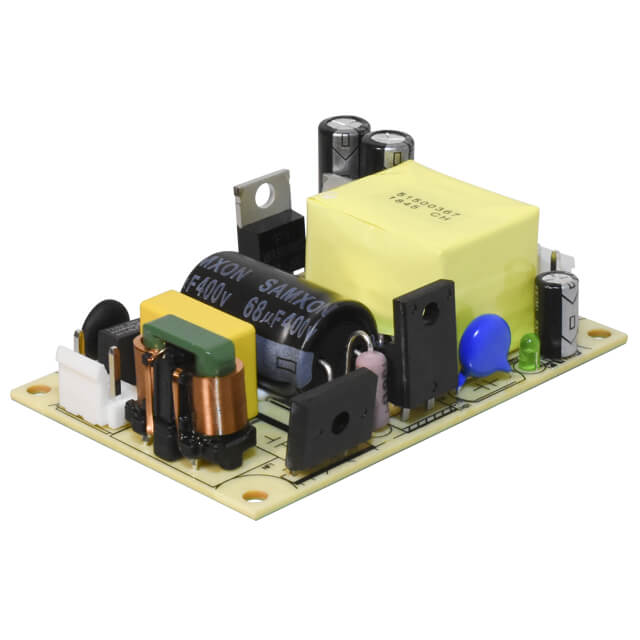

VOF-45C Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 24V 45W
| Part | Approval Agency | Voltage - Input [Min] | Voltage - Input [Max] | Features | Voltage - Output 1 | Number of Outputs | Type | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Mounting Type | Efficiency | Standard Number | Current - Output 1 | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | CB Scheme EN IEC UL | 85 VAC 100 V | 264 VAC 370 VDC | Universal Input | 24 V | 1 | Open Frame | 45 W | 70 °C | -25 °C | ITE (Commercial) | Chassis Mount | 86 % | 55024 55032 Class A 62368-1 | 1.875 A | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | 3000 V |
CUI Inc. | CB Scheme EN IEC UL | 85 VAC 100 V | 264 VAC 370 VDC | Universal Input | 48 V | 1 | Open Frame | 45 W | 70 °C | -25 °C | ITE (Commercial) | Chassis Mount | 87 % | 55024 55032 Class A 62368-1 | 940 mA | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | 3000 V |
CUI Inc. | CB Scheme EN IEC UL | 85 VAC 100 V | 264 VAC 370 VDC | Universal Input | 5 V | 1 | Open Frame | 40 W | 70 °C | -25 °C | ITE (Commercial) | Chassis Mount | 55024 55032 Class A 62368-1 | 8 A | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | 3000 V |
