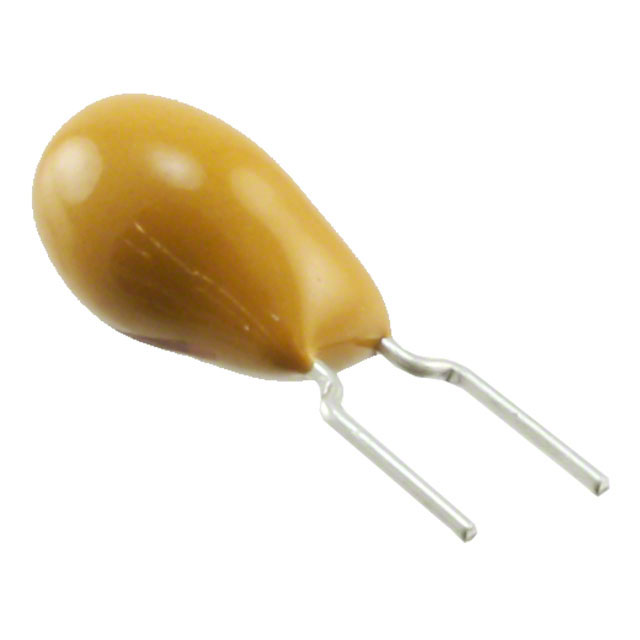

T356J Series

Manufacturer: KEMET

Catalog

CAP TANT 6.8UF 10% 50V RADIAL

Part	Capacitance	Voltage - Rated	Manufacturer Size Code	Type	Lead Spacing	Lead Spacing	Tolerance	Package / Case	Size / Dimension [diameter]	Size / Dimension	Mounting Type	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Features
KEMET T356J685K050AS	6.8 µF	50 VDC	J	Conformal Coated	0.2 in	5.08 mm	10 %	Radial	0.331 in	8.4 mm	Through Hole	2 Ohms	-55 C	125 °C	14 mm	0.551 in	General Purpose
KEMET T356J336K025AT	33 ÁF	25 VDC	J	Conformal Coated	0.2 in	5.08 mm	10 %	Radial	0.331 in	8.4 mm	Through Hole	1200 mOhm	-55 C	125 °C	14 mm	0.551 in	General Purpose
KEMET T356J476K016AS	47 µF	16 V	J	Conformal Coated	0.2 in	5.08 mm	10 %	Radial	0.331 in	8.4 mm	Through Hole	1.3 Ohm	-55 C	125 °C	14 mm	0.551 in	General Purpose
KEMET T356J157K006AS	150 µF	6.3 VDC	J	Conformal Coated	0.2 in	5.08 mm	10 %	Radial	0.331 in	8.4 mm	Through Hole	900 mOhm	-55 C	125 °C	14 mm	0.551 in	General Purpose
KEMET T356J157K006AT	150 µF	6.3 VDC	J	Conformal Coated	0.2 in	5.08 mm	10 %	Radial	0.331 in	8.4 mm	Through Hole	900 mOhm	-55 C	125 °C	14 mm	0.551 in	General Purpose
KEMET T356J107M010AT	100 µF	10 V	J	Conformal Coated	0.2 in	5.08 mm	20 %	Radial	0.331 in	8.4 mm	Through Hole	1 Ohm	-55 C	125 °C	14 mm	0.551 in	General Purpose
KEMET T356J156K035AT	15 µF	35 V	J	Conformal Coated	0.2 in	5.08 mm	10 %	Radial	0.331 in	8.4 mm	Through Hole	1.6 Ohm	-55 C	125 °C	14 mm	0.551 in	General Purpose
