90013 Series
Manufacturer: Preci-Dip
Beta
⌘K

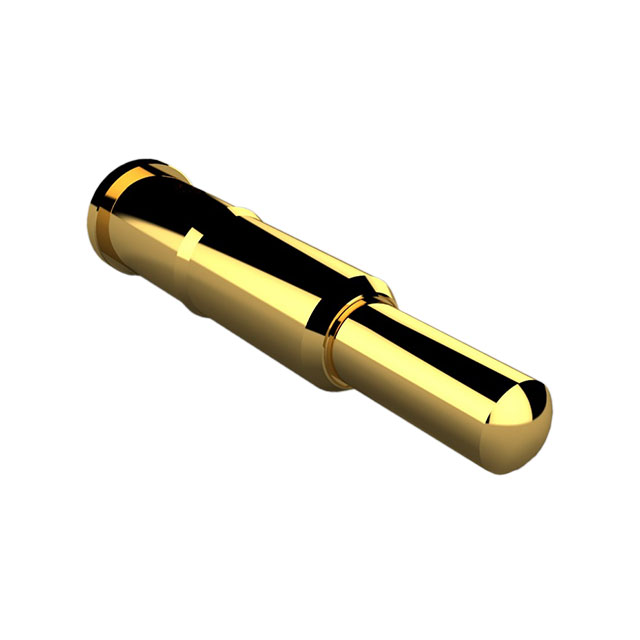

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Operating Force - Initial | Contact Type | Mating Cycles | Current Rating (Amps) | Minimum Working Height [z] | Minimum Working Height [z] | Operating Force - Mid Compression | Maximum Working Height | Maximum Working Height | Contact Material | Plunger Size [diameter] | Plunger Size [diameter] | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | 30 Áin | 0.76 Ám | Gold | 20.39 gf | Sleeve & Plunger (Pogo Pins) | 40000 | 3 A | 6 mm | 0.236 in | 132.56 gf | 0.323 in | 8.2 mm | Brass Alloy | 0.042 in | 1.07 mm | 0.071 in | 1.8 mm | Surface Mount |
