PA0002 Series
Manufacturer: Chip Quik Inc.
Beta
⌘K

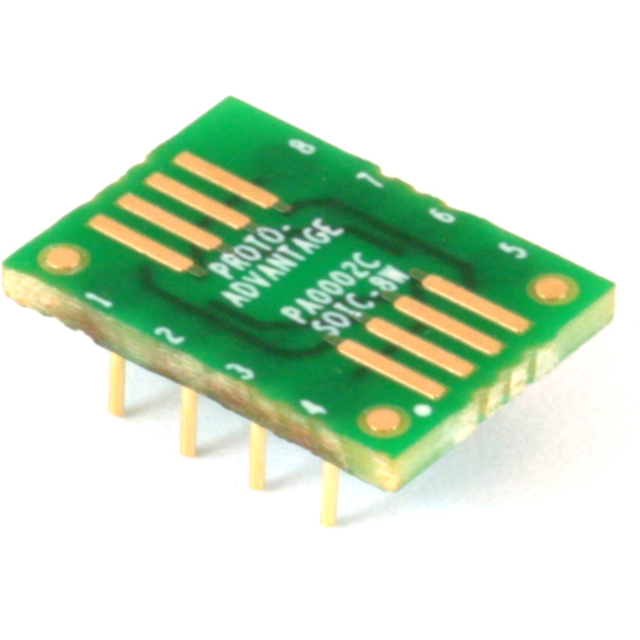

SOIC-8 TO DIP-8 SMT ADAPTER (1.2
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Number of Positions | Proto Board Type | Board Thickness | Board Thickness | Pitch | Pitch | Package Accepted | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Chip Quik Inc. | 13.97 mm | 0.4 " | 10.16 mm | 0.55 in | 8 | SMD to DIP | 0.063 in | 1.6 mm | 0.05 in | 1.27 mm | SOIC | FR4 Epoxy Glass |
