322994 Series

Catalog

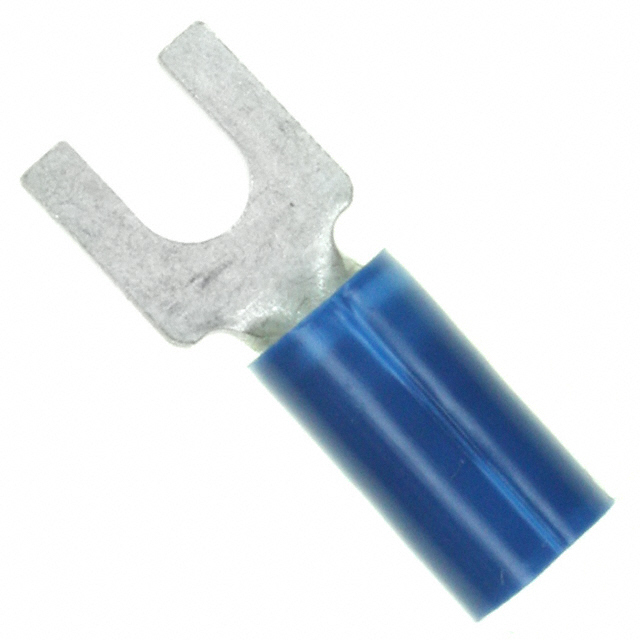

CONN SPADE TERM 14-16AWG #6 BLU

Part	Stud/Tab Size	Length - Termination	Length - Termination	Termination	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Contact Finish	Features	Mounting Type	Terminal Type	Contact Material	Insulation	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Material - Insulation	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Length - Overall [x]	Length - Overall [x]	Color	Width - Outer Edges [x]	Width - Outer Edges [x]
TE Connectivity Raychem Cable Protection 8-322994-1	6 Stud	10.57 mm	0.416 in	Crimp	3.68 mm	0.145 in	Tin	Serrated Termination	Free Hanging (In-Line)	Standard	Copper	Insulated	0.203 in	5.16 mm	Poly-Vinyl Chloride (PVC)	0.145 in 3.68 mm	0.105 in	2.67 mm	19.43 mm	0.765 in	Blue	0.297 in	7.54 mm
