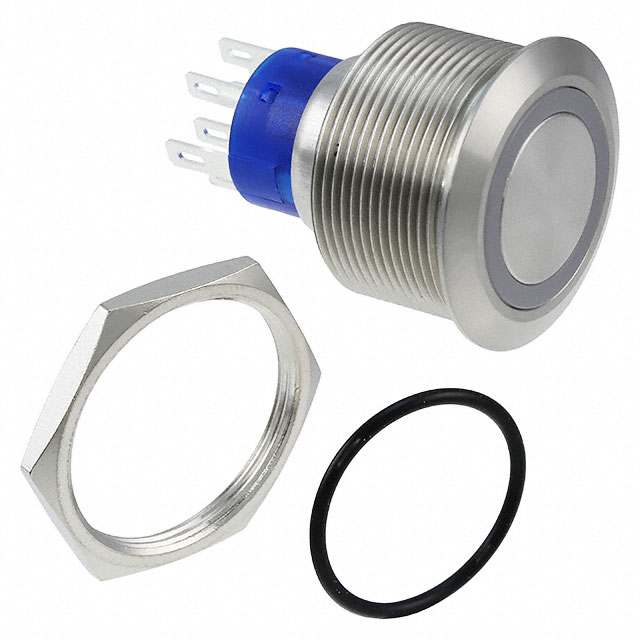

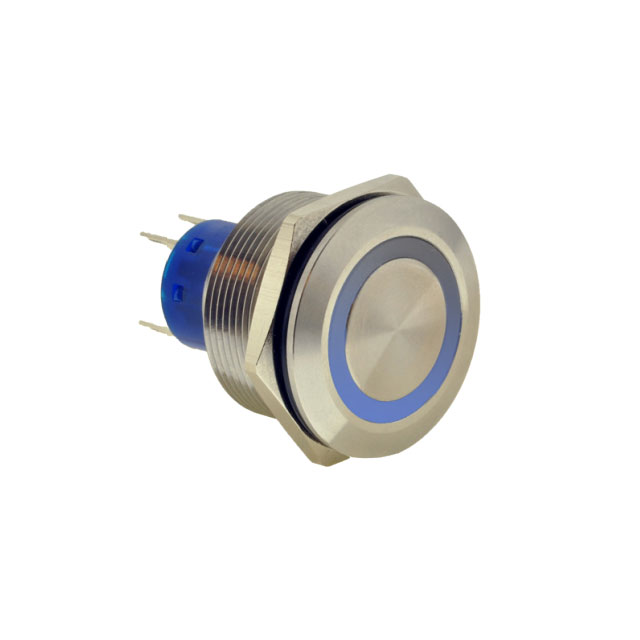

ULV8 Series

Manufacturer: E-Switch

Catalog

SWITCH PUSHBUTTON SPDT 3A 125V

Part	Ingress Protection	Panel Cutout Dimensions [diameter]	Actuator Type	Illumination Type, Color	Illumination Voltage (Nominal)	Switch Function	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Color - Actuator/Cap	Voltage Rating - AC	Circuit	Current Rating (Amps)	Termination Style	Mechanical Life	Electrical Life	Actuator Marking
E-Switch ULV8F2BSS331-M01	IP67 - Dust Tight Waterproof	25 mm	Button Flush Round	Green LED	3 VDC	On-Mom	Anti-Vandal Illuminated	55 °C	-20 ░C	Panel Mount Front	Silver	125 V	SPDT	3 A	Solder Quick Connect - 0.110" (2.8mm)
E-Switch ULV8F2GSS343	IP67 - Dust Tight Waterproof	25 mm	Button Flush Round	Blue LED	6 VDC	On-On	Anti-Vandal Illuminated	55 °C	-20 ░C	Panel Mount Front	Silver	125 V	DPDT	3 A	Solder Quick Connect - 0.110" (2.8mm)
E-Switch ULV8F2BSS3G4	IP67 - Dust Tight Waterproof	25 mm	Button Flush Round	Green/Red LED	12 VDC	On-Mom	Anti-Vandal Illuminated	55 °C	-20 ░C	Panel Mount Front	Silver	125 V	SPDT	3 A	Solder Quick Connect - 0.110" (2.8mm)	1000000 Cycles	50000 Cycles

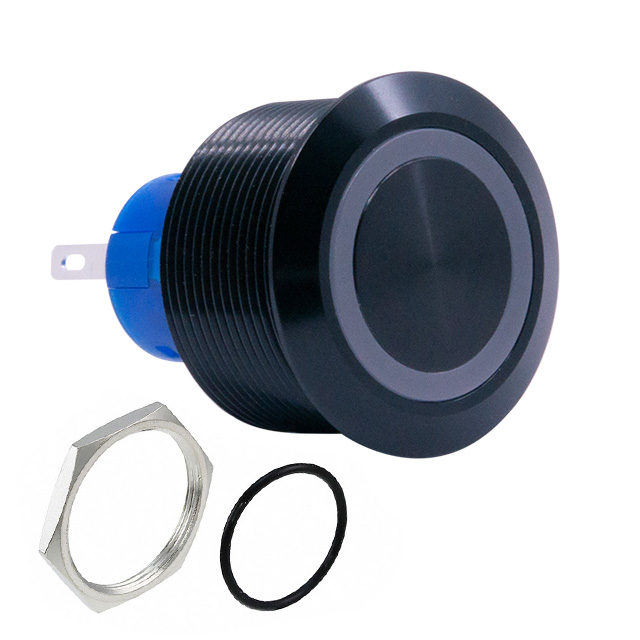

E-Switch ULV8F2311333	IP67 - Dust Tight Waterproof	25.2 mm	Button Flush Round	Green LED	6 VDC	On-On	Anti-Vandal Illuminated	55 °C	-20 ░C	Panel Mount Front	Black	250 V	SPDT	3 A	Solder Quick Connect - 0.110" (2.8mm)	500000 Cycles	50000 Cycles	No Marking
E-Switch ULV8FM3SS305	IP67 - Dust Tight Waterproof	25 mm	Button Flush Round	LED White	24 V	On-On	Anti-Vandal Illuminated	55 °C	-20 ░C	Panel Mount Front	Silver	125 V	SPDT	3 A	Wire Leads	500000 Cycles	50000 Cycles
E-Switch ULV8F2GSS341	IP67 - Dust Tight Waterproof	25.2 mm	Button Flush Round	Blue LED	3 VDC	On-On	Anti-Vandal Illuminated	55 °C	-20 ░C	Panel Mount Front	Silver	250 V	DPDT	3 A	Solder Quick Connect - 0.110" (2.8mm)	500000 Cycles	50000 Cycles	No Marking

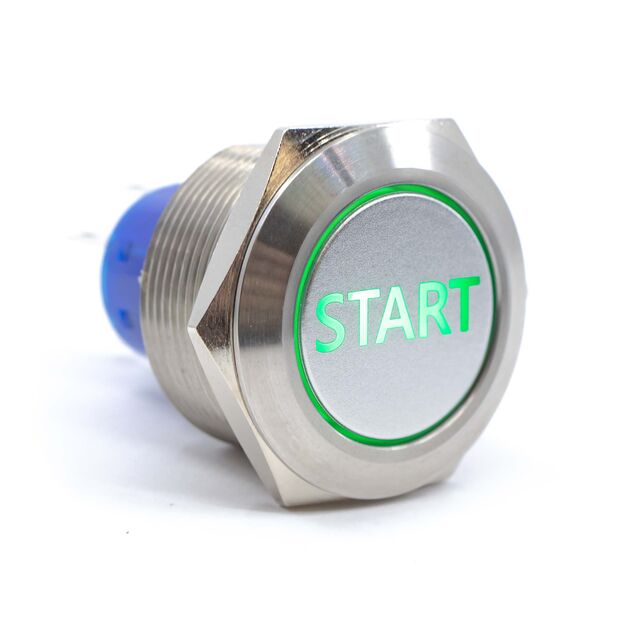

E-Switch ULV8F2BSLL34L20	IP67 - Dust Tight Waterproof	25 mm	Button Flush Round	Green LED	12 VDC	On-Mom	Anti-Vandal Illuminated	55 °C	-20 ░C	Panel Mount Front	Silver	125 V	SPDT	3 A	Solder Lug	1000000 Cycles	50000 Cycles	No Marking
E-Switch ULV8F2HSS341	IP67 - Dust Tight Waterproof	25.2 mm	Button Flush Round	Blue LED	3 VDC	On-Mom	Anti-Vandal Illuminated	55 °C	-20 ░C	Panel Mount Front	Silver	250 V	DPDT	3 A	Solder Quick Connect - 0.110" (2.8mm)	1000000 Cycles	50000 Cycles	No Marking
E-Switch ULV8F23SS305	IP67 - Dust Tight Waterproof	25 mm	Button Flush Round	LED White	24 V	On-On	Anti-Vandal Illuminated	55 °C	-20 ░C	Panel Mount Front	Silver	125 V	SPDT	3 A	Solder Quick Connect - 0.110" (2.8mm)	500000 Cycles	50000 Cycles
E-Switch ULV8F23SSG334	IP67 - Dust Tight Waterproof	25 mm	Button Flush Round	Green LED	12 VDC	On-On	Anti-Vandal Illuminated	55 °C	-20 ░C	Panel Mount Front	Silver	125 V	SPDT	3 A	Solder Quick Connect - 0.110" (2.8mm)	500000 Cycles	50000 Cycles
