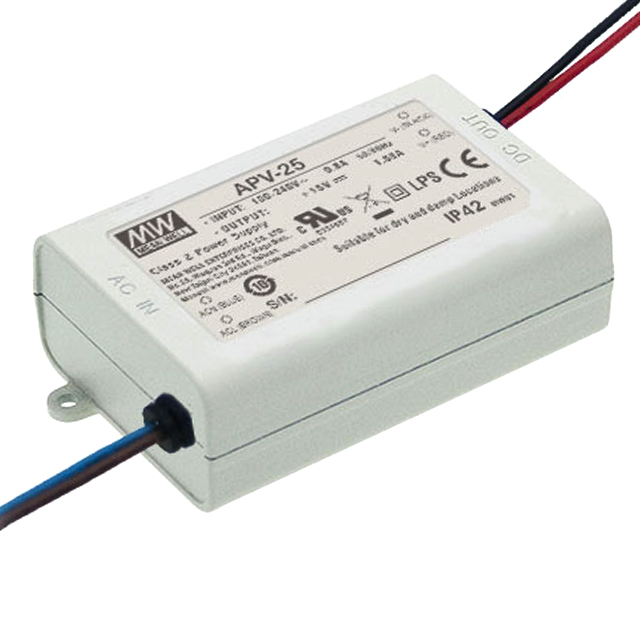

APV-25 Series

Catalog

LED DRIVER CV AC/DC 15V 1.68A

Part	Mounting Type	Voltage - Input (Max) [Max]	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Termination Style	Voltage - Isolation	Power (Watts)	Number of Outputs	Type	Voltage - Output	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Approval Agency	Topology	Ratings	Operating Temperature [Min]	Operating Temperature [Max]
MEAN WELL USA Inc. APV-25-15	Chassis Mount	264 VAC	83 %	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	OCP OVP SCP	Wire Leads	3000 V	25 W	1	Constant Voltage	15 V	1.68 A	90 VAC	CE cURus	AC DC Converter	IP42	-30 ░C	70 °C
MEAN WELL USA Inc. APV-25-12	Chassis Mount	264 VAC		2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	OCP OVP SCP	Wire Leads	3000 V	25 W	1	Constant Voltage	12 V	2.1 A	90 VAC	CE cURus	AC DC Converter	IP42	-30 ░C	70 °C
MEAN WELL USA Inc. APV-25-24	Chassis Mount	264 VAC	83 %	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	OCP OVP SCP	Wire Leads	3000 V	25 W	1	Constant Voltage	24 V	1.05 A	90 VAC	CE cURus	AC DC Converter	IP42	-30 ░C	70 °C
MEAN WELL USA Inc. APV-25-5	Chassis Mount	264 VAC	75.5 %	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	OCP OVP SCP	Wire Leads	3000 V	18 W	1	Constant Voltage	5 V	3.5 A	90 VAC	CE cURus	AC DC Converter	IP42	-30 ░C	70 °C
MEAN WELL USA Inc. APV-25-36	Chassis Mount	264 VAC	84 %	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	OCP OVP SCP	Wire Leads	3000 V	25 W	1	Constant Voltage	36 V	700 mA	90 VAC	CE cURus	AC DC Converter	IP42	-30 ░C	70 °C
