307-084 Series
Manufacturer: EDAC Inc.
Beta
⌘K

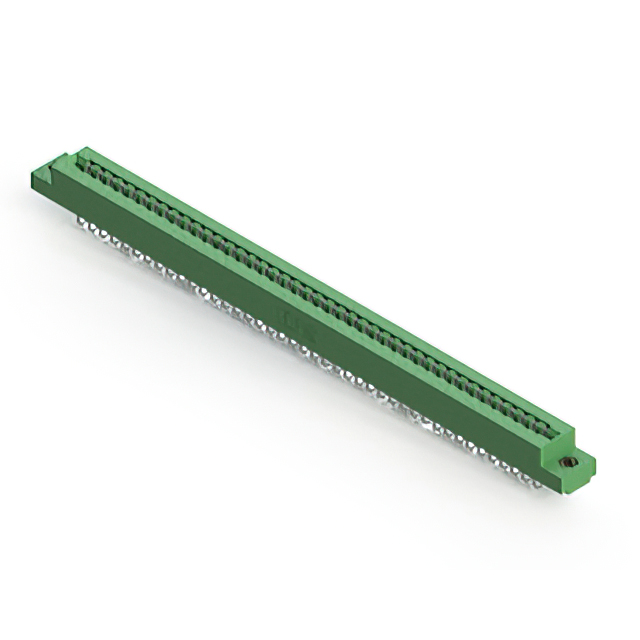

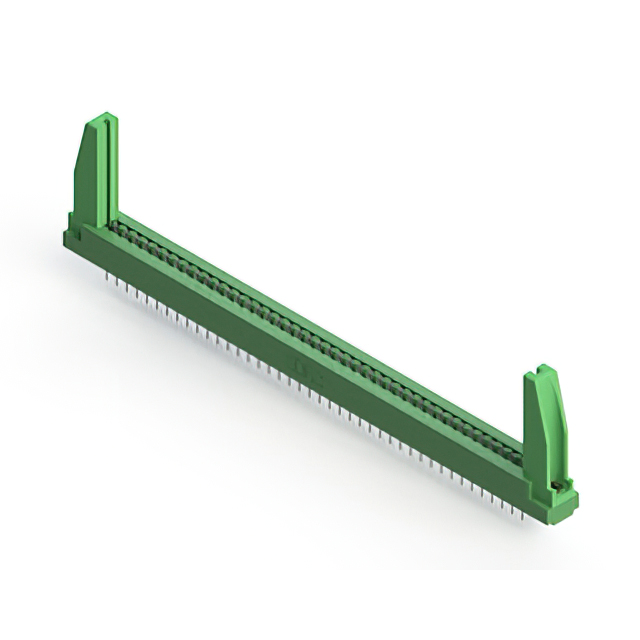

CONN EDGE DUAL FMALE 84POS 0.156
| Part | Material - Insulation | Termination Rows [custom] | Number of Positions/Bay/Row | Features | Contact Material | Flange Feature | Color | Contact Finish | Mounting Type | Number of Positions [custom] | Number of Rows [custom] | Card Type | Gender | Pitch | Pitch | Card Thickness [Max] | Card Thickness [Min] | Read Out | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | 42 | Card Extender Card Guides | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Green | Tin | Board Edge Straddle Mount | 84 | 2 | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Solder | -40 C | 105 ░C | Semi Bellows | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 42 | Copper Alloy | Floating Bobbin Flush Mount | Green | Gold | Through Hole | 84 | 2 | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Solder | -40 C | 105 ░C | Semi Bellows | 0.116 " | 2.95 mm | 0.25 Ám | 10 Áin | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 42 | Copper Alloy | Flush Mount Top Opening Unthreaded | Green | Gold | Through Hole | 84 | 2 | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Solder | -40 C | 105 ░C | Semi Bellows | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 42 | Copper Alloy | Flush Mount Top Opening Unthreaded | Green | Gold | Through Hole | 84 | 2 | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Solder Eyelet(s) | -40 C | 105 ░C | Semi Bellows | 0.156 " | 3.96 mm | 0.25 Ám | 10 Áin | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 42 | Card Guides | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Green | Tin | Through Hole | 84 | 2 | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Solder | -40 C | 105 ░C | Semi Bellows | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 42 | Card Extender Card Guides | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Green | Tin | Board Edge Straddle Mount | 84 | 2 | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Solder | -40 C | 105 ░C | Semi Bellows | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 42 | Copper Alloy | Green | Tin | Board Edge Straddle Mount | 84 | 2 | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Solder | -40 C | 105 ░C | Semi Bellows | ||||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 42 | Copper Alloy | Floating Bobbin Flush Mount | Green | Tin | Through Hole | 84 | 2 | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Solder | -40 C | 105 ░C | Semi Bellows | 0.116 " | 2.95 mm | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | 42 | Card Guides | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Green | Tin | Right Angle Through Hole | 84 | 2 | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Solder | -40 C | 105 ░C | Semi Bellows | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 42 | Card Guides | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Green | Gold | Through Hole | 84 | 2 | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Solder Eyelet(s) | -40 C | 105 ░C | Semi Bellows | 0.25 Ám | 10 Áin |
