PSA05C Series
Manufacturer: Phihong USA
Beta
⌘K

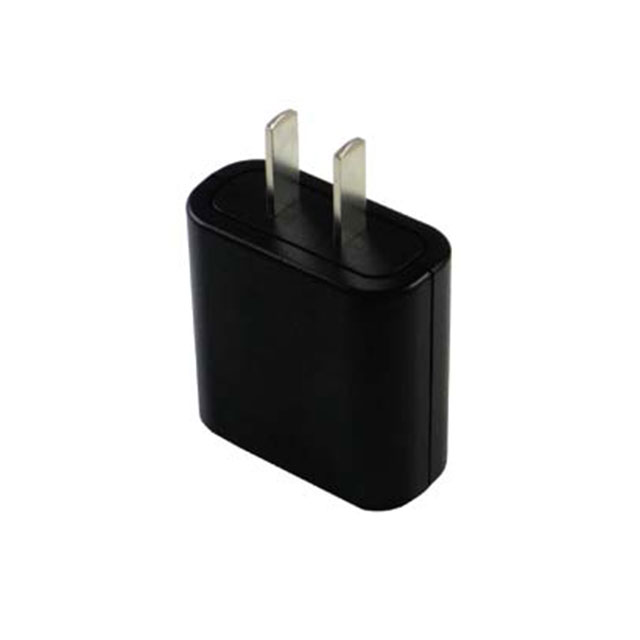

AC/DC WALL MOUNT ADAPTER 5V 5W
| Part | Weight [custom] | Weight [custom] | Region Utilized | Applications | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Voltage - Input [Max] | Voltage - Input [Min] | Power (Watts) | Input Type | Approval Agency | Efficiency | Input Connector | Operating Temperature [Max] | Operating Temperature [Min] | Output Connector | Form | No Load Power Consumption | Voltage - Output | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phihong USA | 2.82 oz | 80.36 g | China | ITE (Commercial) | 1.69 in | 1.65 in | 42 mm | 43 mm | 21 mm | 0.83 " | 264 VAC | 90 VAC | 5 W | Fixed Blade | cULus | Level VI | GB 1002 | 40 °C | 0 °C | USB A Receptacle | Wall Mount | 30 mW | 5 V | 1 A |
