sek Series

Manufacturer: HARTING

Catalog

Catalog

CONNECTOR: IDC; FEMALE; PIN: 20; SEK; IDC; 2.54MM; 1.27MM; UL94V-0

...

Part	Row Spacing	Row Spacing	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows [custom]	Number of Positions	Contact Type	Wire Type	Cable Termination	Connector Type	Pitch	Pitch	Contact Finish	Features	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Contact Length - Mating [x]	Contact Length - Mating [x]	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Number of Positions Loaded	Contact Shape	Insulation Height	Insulation Height	Shrouding	Contact Finish - Post	Contact Finish - Mating	Board-Side Pitch	Board-Side Pitch	Color	Number of Positions [custom]
HARTING 0918520581358U	2.54 mm	0.1 "	30 Áin	0.76 Ám	Free Hanging (In-Line)	2	20	Female Socket	Ribbon Cable	IDC	Receptacle	0.1 "	2.54 mm	Gold	Feed Through Polarizing Key Strain Relief

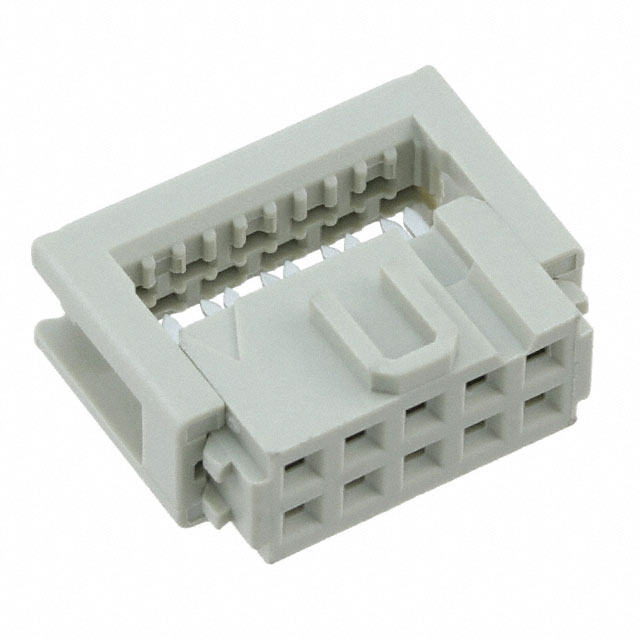

HARTING 09185105803	2.54 mm	0.1 "	30 Áin	0.76 Ám	Free Hanging (In-Line)	2	10	Female Socket	Ribbon Cable	IDC	Receptacle	0.1 "	2.54 mm	Gold	Feed Through Polarizing Key
HARTING 09185645903					Right Angle Through Hole	2	64	Male Pin			Header					Gray	0.114 in	2.9 mm	Solder	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.24 in	6.1 mm	UL94 V-0	0.1 "	2.54 mm	-55 C	125 °C	Copper Alloy	Latch Lock/Eject Hooks Long	0.76 Ám	30 Áin	Board to Cable/Wire	All	Square	0.335 "	8.51 mm	Shrouded - 4 Wall	Tin	Gold

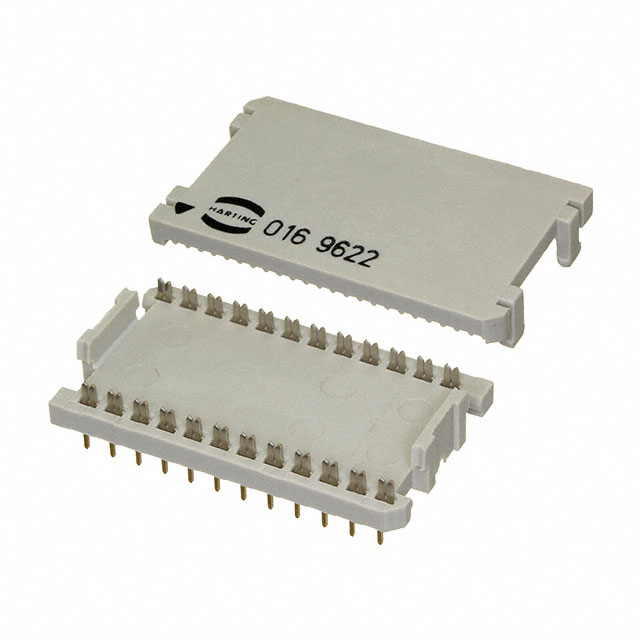

HARTING 09170249622	15.24 mm	0.6 in			Through Hole	2	24			IDC	DIP Header Ribbon Cable			Tin	Feed Through																				All							2.54 mm	0.1 "	Beige

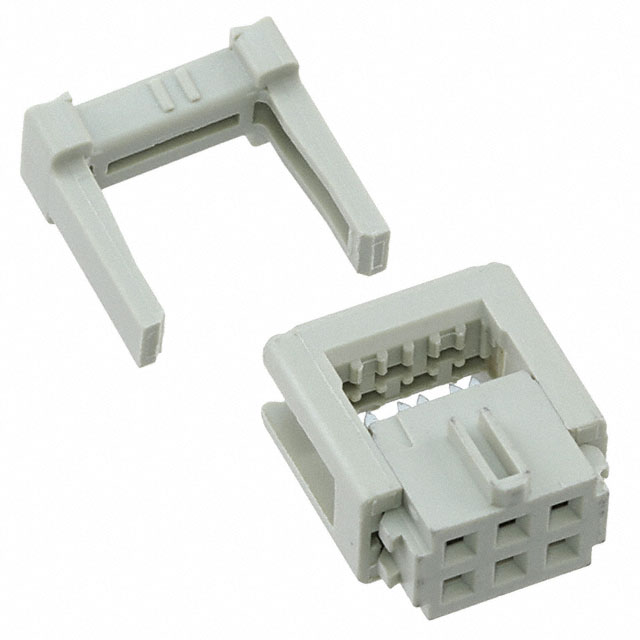

HARTING 0918506681358U	2.54 mm	0.1 "			Free Hanging (In-Line)	2	6	Female Socket	Ribbon Cable	IDC	Receptacle	0.1 "	2.54 mm	Gold	Feed Through Polarizing Key Strain Relief
HARTING 09185346813	2.54 mm	0.1 "			Free Hanging (In-Line)	2		Female Socket	Ribbon Cable	IDC	Receptacle	0.1 "	2.54 mm	Gold	Feed Through Polarizing Key Strain Relief																														34
HARTING 09185605814	2.54 mm	0.1 "	30 Áin	0.76 Ám	Free Hanging (In-Line)	2	60	Female Socket	Ribbon Cable	IDC	Receptacle	0.1 "	2.54 mm	Gold	Closed End Polarizing Key Strain Relief

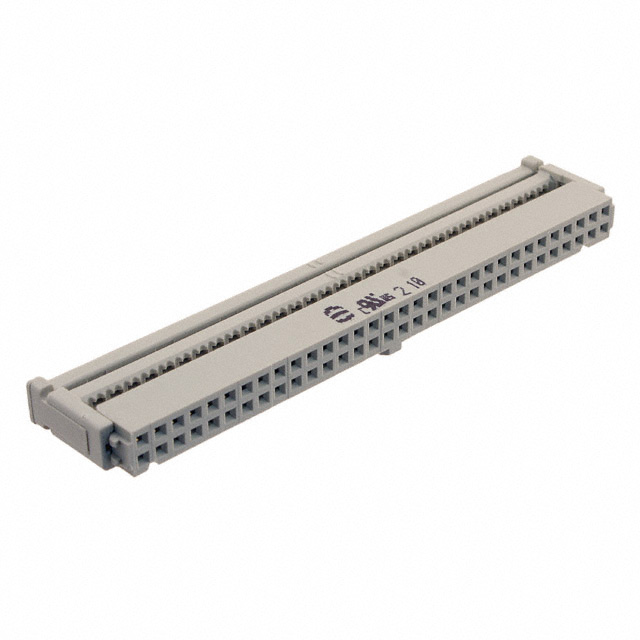

HARTING 09185647813	2.54 mm	0.1 "			Free Hanging (In-Line)	2	64	Female Socket	Ribbon Cable	IDC	Receptacle	0.1 "	2.54 mm	Gold	Feed Through Polarizing Key Strain Relief
HARTING 09185607814	2.54 mm	0.1 "			Free Hanging (In-Line)	2	60	Female Socket	Ribbon Cable	IDC	Receptacle	0.1 "	2.54 mm	Gold	Closed End Polarizing Key Strain Relief
HARTING 09185646813	2.54 mm	0.1 "			Free Hanging (In-Line)	2	64	Female Socket	Ribbon Cable	IDC	Receptacle	0.1 "	2.54 mm	Gold	Feed Through Polarizing Key Strain Relief
