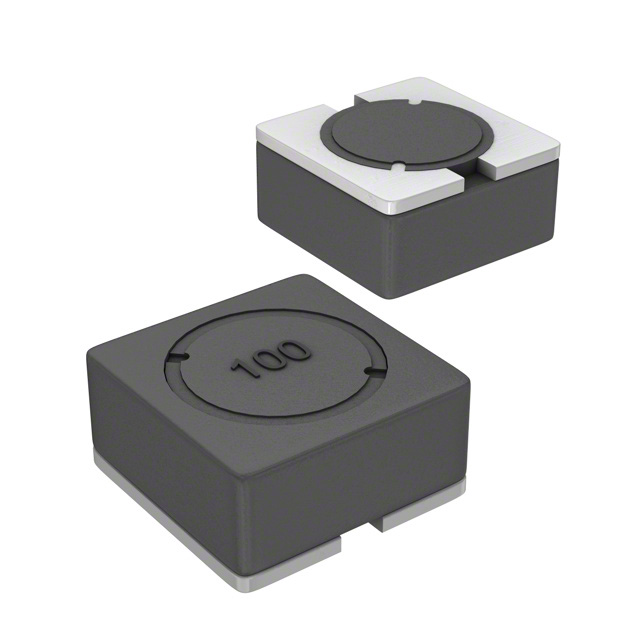

SRR5028 Series

Catalog

POWER INDUCTOR (SMD), 47 ΜH, 820 MA, SHIELDED, 650 MA, SRR5028 SERIES

Part	Package / Case	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Material - Core	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance	Shielding	DC Resistance (DCR) [Max]	Q @ Freq	Tolerance	Inductance Frequency - Test	Frequency - Self Resonant	Current Rating (Amps)	Mounting Type	Type	DC Resistance (DCR)	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. SRR5028-470Y	Nonstandard	0.65 A	125 °C	-40 C	0.228 in	5.8 mm	0.228 in	5.8 mm	Ferrite	0.118 "	3 mm	47 µH	Shielded	250 mOhm	2.52 MHz 7	30 %	100 kHz	13 MHz	820 mA	Surface Mount	Drum Core Wirewound
Bourns Inc. SRR5028-6R2Y	Nonstandard	1.8 A	125 °C	-40 C	0.228 in	5.8 mm	0.228 in	5.8 mm	Ferrite	0.118 "	3 mm	6.2 µH	Shielded	45 mOhm	7 7.96 MHz	30 %	100 kHz	39 MHz	2.2 A	Surface Mount	Drum Core Wirewound
Bourns Inc. SRR5028-100Y	Nonstandard	1.4 A	125 °C	-40 C	0.228 in	5.8 mm	0.228 in	5.8 mm	Ferrite	0.118 "	3 mm	10 µH	Shielded			30 %	100 kHz	30 MHz	1.5 A	Surface Mount	Drum Core Wirewound	70 mOhm	2.52 MHz	9
Bourns Inc. SRR5028-331Y	Nonstandard	200 mA	125 °C	-40 C	0.228 in	5.8 mm	0.228 in	5.8 mm	Ferrite	0.118 "	3 mm	330 µH	Shielded	2 Ohm		30 %	100 kHz	5 MHz	0.2 A	Surface Mount	Drum Core Wirewound			8	796 kHz
Bourns Inc. SRR5028-151Y	Nonstandard	350 mA	125 °C	-40 C	0.228 in	5.8 mm	0.228 in	5.8 mm	Ferrite	0.118 "	3 mm	150 µH	Shielded		7 796 kHz	30 %	100 kHz	7.5 MHz	0.33 A	Surface Mount	Drum Core Wirewound
Bourns Inc. SRR5028-270Y	Nonstandard	900 mA	125 °C	-40 C	0.228 in	5.8 mm	0.228 in	5.8 mm	Ferrite	0.118 "	3 mm	27 µH	Shielded	160 mOhm		30 %	100 kHz	17 MHz	1.05 A	Surface Mount	Drum Core Wirewound		2.52 MHz	10
Bourns Inc. SRR5028-681Y	Nonstandard	140 mA	125 °C	-40 C	0.228 in	5.8 mm	0.228 in	5.8 mm	Ferrite	0.118 "	3 mm	680 µH	Shielded	4.3 Ohm	11 796 kHz	30 %	100 kHz	3 MHz	130 mA	Surface Mount	Drum Core Wirewound
Bourns Inc. SRR5028-120Y	Nonstandard	1.25 A	125 °C	-40 C	0.228 in	5.8 mm	0.228 in	5.8 mm	Ferrite	0.118 "	3 mm	12 µH	Shielded	80 mOhm	2.52 MHz 11	30 %	100 kHz	28 MHz	1.46 A	Surface Mount	Drum Core Wirewound
Bourns Inc. SRR5028-221Y	Nonstandard	300 mA	125 °C	-40 C	0.228 in	5.8 mm	0.228 in	5.8 mm	Ferrite	0.118 "	3 mm	220 µH	Shielded	1.25 Ohm	7 796 kHz	30 %	100 kHz	6.5 MHz	0.3 A	Surface Mount	Drum Core Wirewound
