0300-2 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Contact Finish	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Length - Overall	Length - Overall	Accepts Square Pin Size	Accepts Square Pin Size	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Socket Depth	Socket Depth	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Termination
Mill-Max Manufacturing Corp. 0300-2-15-80-47-80-10-0	-55 C	125 °C	Standard Tail	Tin	1.02 mm	0.04 "	200 Áin	5.08 Ám	10.08 mm	0.397 in	0.025 in	0.64 mm	0.078 "	1.98 mm	Beryllium Copper	0.042 in	1.07 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	4.57 mm	0.18 in	0.051 in	1.3 mm	Solder
Mill-Max Manufacturing Corp. 0300-2-15-15-47-14-10-0	-55 C	125 °C	Standard Tail	Gold	1.02 mm	0.04 "	10 Áin	0.25 Ám	10.08 mm	0.397 in	0.025 in	0.64 mm	0.078 "	1.98 mm	Beryllium Copper	0.042 in	1.07 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	4.57 mm	0.18 in	0.051 in	1.3 mm	Solder

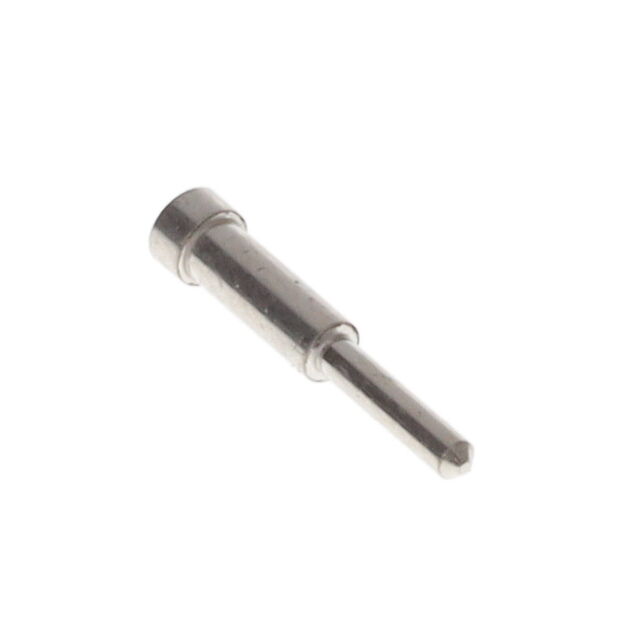

Mill-Max Manufacturing Corp. 0300-2-15-01-47-01-10-0	-55 C	125 °C	Standard Tail	Tin-Lead	1.02 mm	0.04 "	200 Áin	5.08 Ám	10.08 mm	0.397 in	0.025 in	0.64 mm	0.078 "	1.98 mm	Beryllium Copper	0.042 in	1.07 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	4.57 mm	0.18 in	0.051 in	1.3 mm	Solder
Mill-Max Manufacturing Corp. 0300-2-15-01-47-27-10-0	-55 C	125 °C	Standard Tail	Gold	1.02 mm	0.04 "	30 Áin	0.76 Ám	10.08 mm	0.397 in	0.025 in	0.64 mm	0.078 "	1.98 mm	Beryllium Copper	0.042 in	1.07 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	4.57 mm	0.18 in	0.051 in	1.3 mm	Solder
Mill-Max Manufacturing Corp. 0300-2-15-80-47-27-10-0	-55 C	125 °C	Standard Tail	Gold	1.02 mm	0.04 "	30 Áin	0.76 Ám	10.08 mm	0.397 in	0.025 in	0.64 mm	0.078 "	1.98 mm	Beryllium Copper	0.042 in	1.07 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	4.57 mm	0.18 in	0.051 in	1.3 mm	Solder

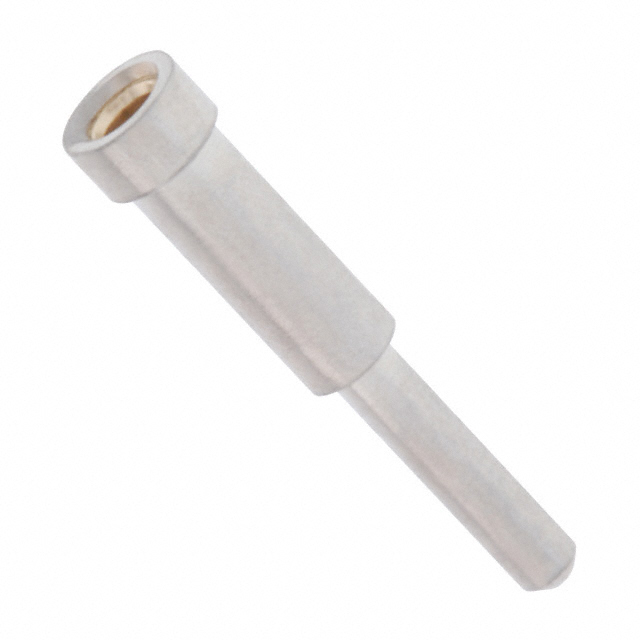

Mill-Max Manufacturing Corp. 0300-2-15-15-47-27-10-0	-55 C	125 °C	Standard Tail	Gold	1.02 mm	0.04 "	30 Áin	0.76 Ám	10.08 mm	0.397 in	0.025 in	0.64 mm	0.078 "	1.98 mm	Beryllium Copper	0.042 in	1.07 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	4.57 mm	0.18 in	0.051 in	1.3 mm	Solder
Mill-Max Manufacturing Corp. 0300-2-15-80-47-14-10-0	-55 C	125 °C	Standard Tail	Gold	1.02 mm	0.04 "	10 Áin	0.25 Ám	10.08 mm	0.397 in	0.025 in	0.64 mm	0.078 "	1.98 mm	Beryllium Copper	0.042 in	1.07 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	4.57 mm	0.18 in	0.051 in	1.3 mm	Solder
