RF1V Series
Manufacturer: IDEC
Beta
⌘K
RELAY SOCKET, THROUGH HOLE, 10 PINS, 6 A, 250 V, RF1V SERIES
| Part | Number of Positions | For Use With/Related Products | Termination Style | Type | Mounting Type | Coil Resistance | Coil Current | Coil Power | Must Release Voltage | Contact Form | Switching Voltage [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Coil Voltage | Operate Time | Contact Rating (Current) | Must Operate Voltage | Contact Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | 10 | RF1V Series | PC Pin | Socket | Through Hole | |||||||||||||||
 IDEC | PC Pin | Through Hole | 1.6 kOhms | 0.015 A | 360 mW | 2.4 VDC | 4PST-3NO/1NC (3 Form A 1 Form B) | 30 VDC 250 VAC | 85 °C | -40 C | 20 ms | 24 VDC | 20 ms | 6 A | 18 VDC | Silver Tin Oxide (AgSnO) | ||||

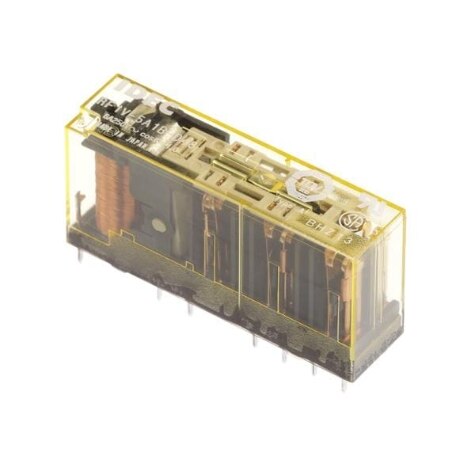

 IDEC | PC Pin | Through Hole | 288 Ohms | 41.7 mA | 1.2 VDC | 6PST-3NO/3NC (3 Form A 3 Form B) | 30 VDC 250 VAC | 85 °C | -40 C | 20 ms | 12 VDC | 20 ms | 6 A | 9 VDC | Gold (Au) Silver Tin Oxide (AgSnO) | Diode Lighted Indicator | ||||
 IDEC | PC Pin | Through Hole | 6.4 kOhms | 7.5 mA | 360 mW | 4.8 VDC | 4PST-2NO/2NC (2 Form A 2 Form B) | 30 VDC 250 VAC | 85 °C | -40 C | 20 ms | 48 VDC | 20 ms | 6 A | 36 VDC | Gold (Au) Silver Tin Oxide (AgSnO) | Diode Lighted Indicator | |||
IDEC | PC Pin | Through Hole | 1.6 kOhms | 0.015 A | 360 mW | 2.4 VDC | 4PST-3NO/1NC (3 Form A 1 Form B) | 30 VDC 250 VAC | 85 °C | -40 C | 20 ms | 24 VDC | 20 ms | 6 A | 18 VDC | Silver Tin Oxide (AgSnO) | Diode Lighted Indicator | |||
IDEC | PC Pin | Through Hole | 4.608 kOhms | 10.4 mA | 4.8 VDC | 6PST-3NO/3NC (3 Form A 3 Form B) | 30 VDC 250 VAC | 85 °C | -40 C | 20 ms | 48 VDC | 20 ms | 6 A | 36 VDC | Gold (Au) Silver Tin Oxide (AgSnO) | Diode Lighted Indicator | ||||
IDEC | PC Pin | Through Hole | 400 Ohms | 0.03 A | 360 mW | 1.2 VDC | 4PST-2NO/2NC (2 Form A 2 Form B) | 30 VDC 250 VAC | 85 °C | -40 C | 20 ms | 12 VDC | 20 ms | 6 A | 9 VDC | Gold (Au) Silver Tin Oxide (AgSnO) | Diode Lighted Indicator | |||
 IDEC | PC Pin | Through Hole | 1.6 kOhms | 0.015 A | 360 mW | 2.4 VDC | 4PST-2NO/2NC (2 Form A 2 Form B) | 30 VDC 250 VAC | 85 °C | -40 C | 20 ms | 24 VDC | 20 ms | 6 A | 18 VDC | Silver Tin Oxide (AgSnO) | Lighted Indicator | |||
IDEC | PC Pin | Through Hole | 4.608 kOhms | 10.4 mA | 4.8 VDC | 6PST-5NO/1NC (5 Form A 1 Form B) | 30 VDC 250 VAC | 85 °C | -40 C | 20 ms | 48 VDC | 20 ms | 6 A | 36 VDC | Gold (Au) Silver Tin Oxide (AgSnO) | Diode Lighted Indicator | ||||
IDEC | PC Pin | Through Hole | 1.15 kOhms | 20.8 mA | 2.4 VDC | 6PST-3NO/3NC (3 Form A 3 Form B) | 30 VDC 250 VAC | 85 °C | -40 C | 20 ms | 24 VDC | 20 ms | 6 A | 18 VDC | Silver Tin Oxide (AgSnO) | Diode Lighted Indicator |
