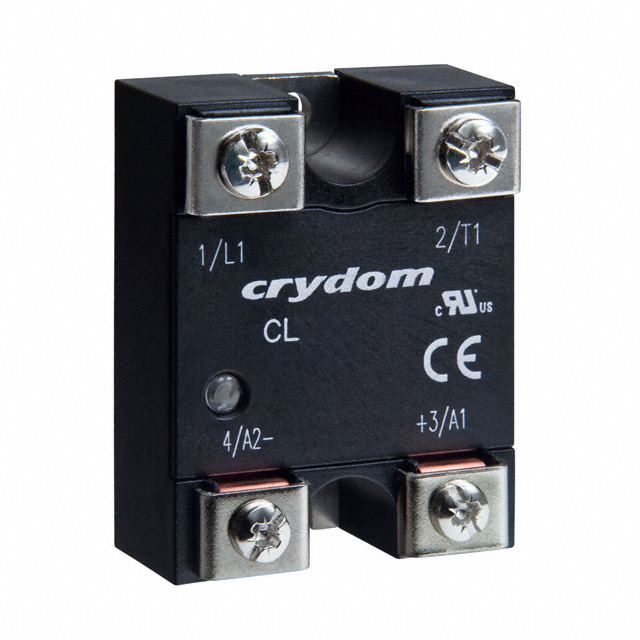

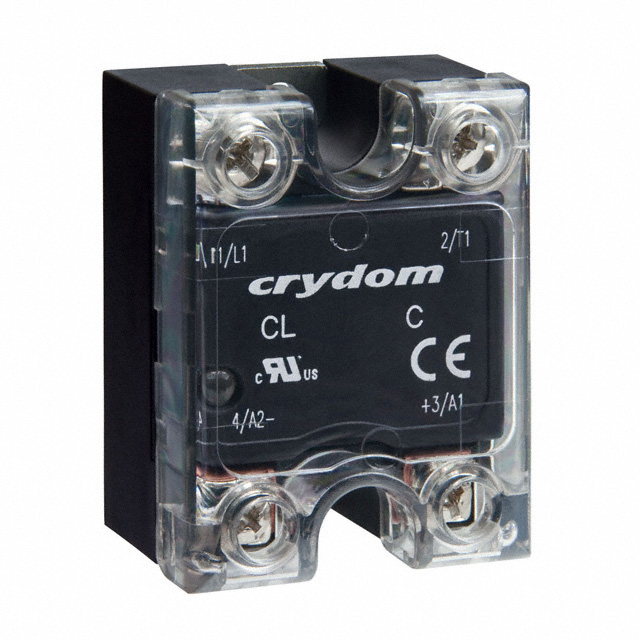

CL240A Series

Catalog

SSR RELAY SPST-NO 10A 24-280V

Part	Mounting Type	Termination Style	Package / Case	Voltage - Load [Min]	Voltage - Load [Max]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Load Current	Voltage - Input [Max]	Voltage - Input [Min]
Sensata-Crydom CL240A10R	Chassis Mount	Screw Terminal	Hockey Puck	24 V	280 V	AC	80 °C	-40 C	CE cURus	10 A	250 VAC	90 VAC
Sensata-Crydom CL240A10C	Chassis Mount	Screw Terminal	Hockey Puck	24 V	280 V	AC Zero Cross	80 °C	-40 C	CE cURus	10 A	250 VAC	90 VAC
Sensata-Crydom CL240A05C	Chassis Mount	Screw Terminal	Hockey Puck	24 V	280 V	AC Zero Cross	80 °C	-40 C	CE cURus	5 A	250 VAC	90 VAC
Sensata-Crydom CL240A05RC	Chassis Mount	Screw Terminal	Hockey Puck	24 V	280 V	AC	80 °C	-40 C	CE cURus	5 A	250 VAC	90 VAC
Sensata-Crydom CL240A10RC	Chassis Mount	Screw Terminal	Hockey Puck	24 V	280 V	AC	80 °C	-40 C	CE cURus	10 A	250 VAC	90 VAC

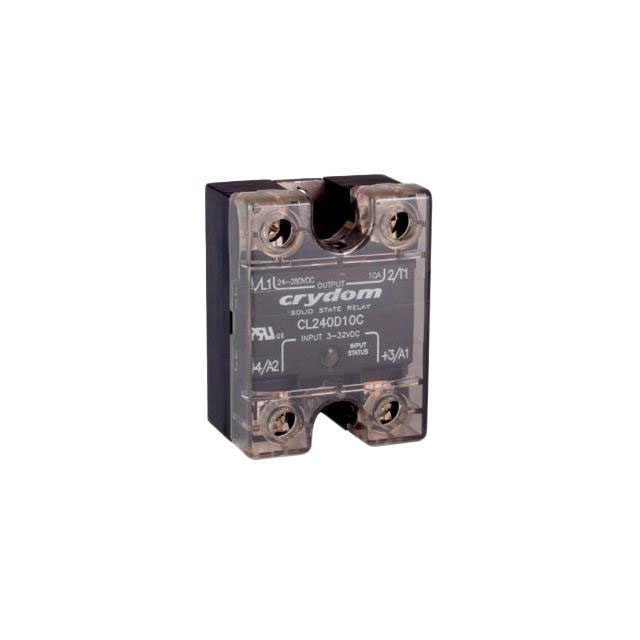

Sensata-Crydom CL240A05CH	Chassis Mount	Screw Terminal	Hockey Puck	24 V	280 V	AC Zero Cross	80 °C	-40 C	CE cURus	5 A	250 VAC	90 VAC
