21.732 Series
Manufacturer: Jacob GmbH
Beta
⌘K

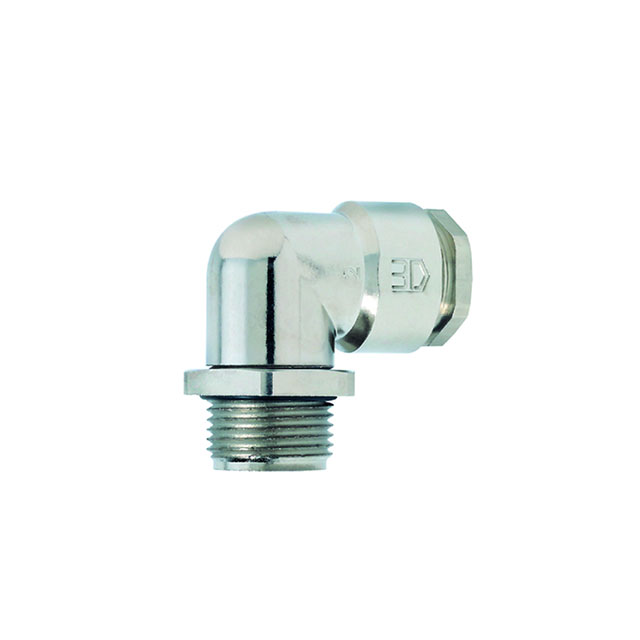

CABLE GLAND RA 14-20MM M32 ZINC
| Part | Ingress Protection | Type | Color | Material | Outside Cable Diameter (Max) [Max] | Outside Cable Diameter (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Outside Cable Diameter (Min) [Min] | Outside Cable Diameter (Min) [Min] | Thread Size | Thread Length | Thread Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Jacob GmbH | IP55 - Dust Protected Water Resistant | Cable Gland - 90° | Silver | Zinc Nickel Plated | 0.787 in | 20 mm | -20 ░C | 100 °C | Locknut O-Ring Seal | 0.551 in | 14 mm | M32x1.5 | 0.728 in | 18.5 mm |

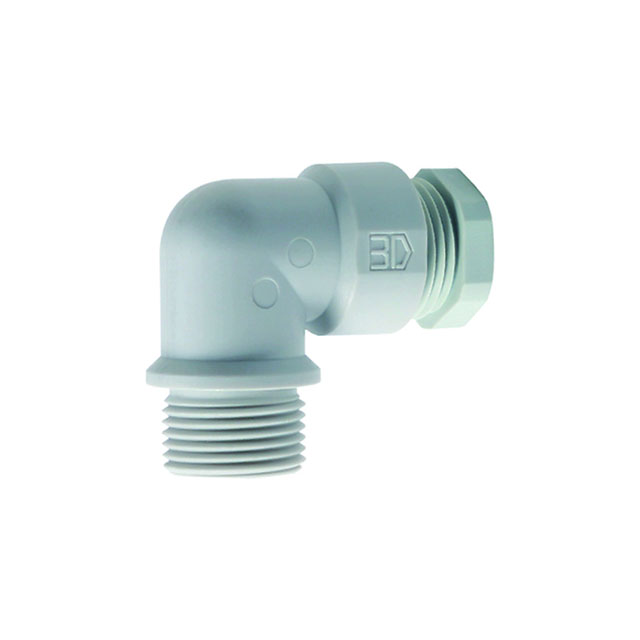

 Jacob GmbH | IP55 - Dust Protected Water Resistant | Cable Gland - 90° | Gray | 0.787 in | 20 mm | -20 ░C | 100 °C | Sealing Ring | 0.551 in | 14 mm | M32x1.5 | 0.551 in | 14 mm |
