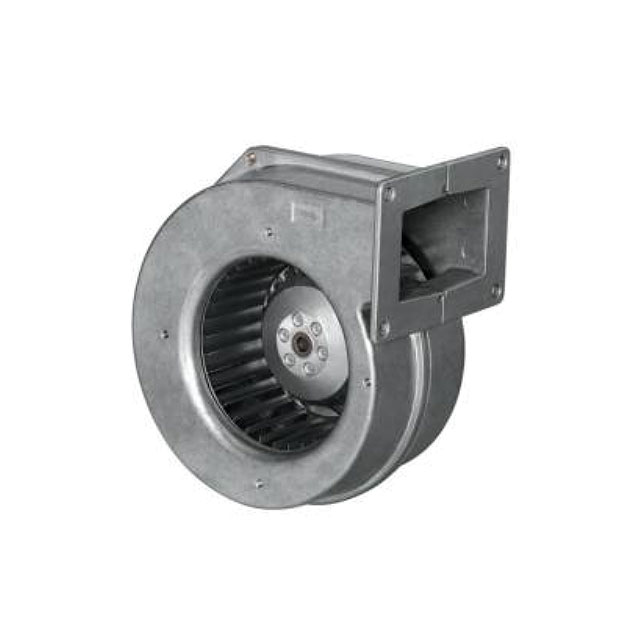

G2E120 Series

Catalog

FAN BLWR CENT 174X115MM 230VAC

Part	Material - Frame	Material - Blade	Air Flow	Air Flow	Termination	Voltage - Rated	Noise	Weight	Weight	Fan Type	Bearing Type	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [z]	Width [y]	Power (Watts)	Current Rating (Amps)	Approval Agency	RPM	Features	Size / Dimension	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	Width	Weight [custom]	Weight [custom]
ebm-papst Inc. G2E120-AR38-43	Aluminum	Steel	152 CFM	4.26 mł/min	4 Wire Leads	230 VAC	62 dB(A)	2 kg	4.5 lbs	Blower Centrifugal	Ball	120 mm	174 mm	190 mm	115 mm	90 W
ebm-papst Inc. G2E120-CR21-13	Steel	Steel			4 Wire Leads	230 VAC				Blower Centrifugal	Ball		171 mm		99 mm	100 W	0.45 A	CE	2050 RPM	Capacitor Thermal Overload Protector (TOP)	Rectangular/Rounded	180 mm	40 °C	-25 °C	-25 °C	40 °C	IP44
ebm-papst Inc. G2E120-AR77-01	Aluminum	Steel			4 Wire Leads	230 VAC				Blower Centrifugal	Ball		178 mm		115 mm	100 W	0.44 A	CCC CE EAC	2450 RPM	Capacitor Thermal Overload Protector (TOP)	Rectangular/Rounded	193.5 mm	55 °C	-25 °C			IP44
ebm-papst Inc. G2E120-AR77-23	Aluminum	Steel			Terminal Block	240 VAC				Blower Centrifugal	Ball		178 mm		115 mm	115 W	490 mA	CE	2950 RPM	Capacitor Thermal Overload Protector (TOP)	Rectangular/Rounded	193.5 mm	30 °C	-25 °C			IP44	240 VAC	220 VAC	0.201 in H2O	50 Pa
ebm-papst Inc. G2E120-AR38-01	Aluminum	Steel			4 Wire Leads with Splice Terminals	230 VAC				Blower Centrifugal	Ball		178 mm		115 mm	110 W	0.5 A	CE	2600 RPM	Capacitor Thermal Overload Protector (TOP)	Rectangular/Rounded	193.5 mm	60 °C	-25 °C			IP44
ebm-papst Inc. G2E120-CR21-01	Aluminum	Steel	150 CFM	4.2 mł/min	2 Wire Leads	230 VAC	63 dB			Blower Centrifugal	Ball		171 mm			100 W		CCC CE GOST	2050 RPM		Rectangular/Rounded	180 mm										110 mm	1.9 kg	4.2 lbs

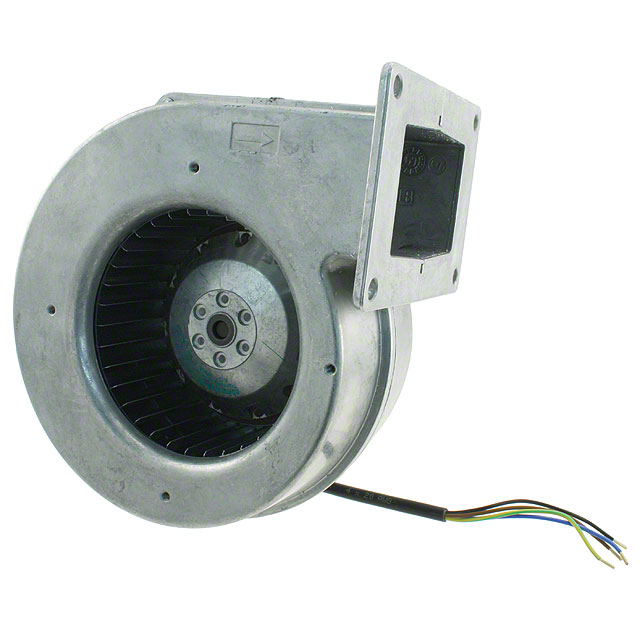

ebm-papst Inc. G2E120-AR54-43	Aluminum	Steel	152 CFM	4.26 mł/min	4 Wire Leads	115 VAC	62 dB(A)	2 kg	4.5 lbs	Blower Centrifugal	Ball	120 mm	174 mm	190 mm	115 mm	105 W
ebm-papst Inc. G2E120-DO16-17	Aluminum	Steel			3 Wire Leads	230 VAC				Blower Centrifugal	Ball		178 mm		115 mm	115 W	0.51 A	CE	2300 RPM	Capacitor	Rectangular/Rounded	193.5 mm	75 ░C	-25 °C
