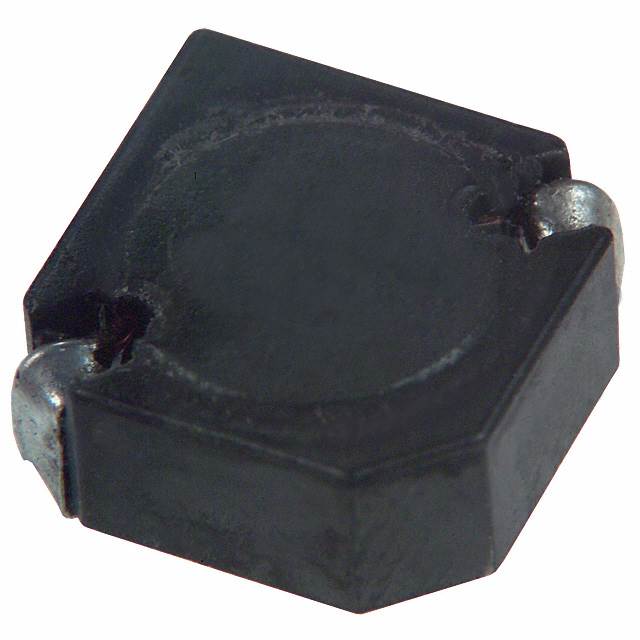

ELL-ATV Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
FIXED IND 10UH 3.3A 23 MOHM SMD
| Part | Inductance | Current Rating (Amps) | Shielding | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | DC Resistance (DCR) | Material - Core | Height - Seated (Max) [Max] | Height - Seated (Max) | Tolerance | Inductance Frequency - Test | Package / Case | Mounting Type | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 10 µH | 3.3 A | Shielded | 10 mm | 0.394 in | 10 mm | 0.394 " | 23 mOhm | Ferrite | 0.177 " | 4.5 mm | 20 % | 100 kHz | Nonstandard | Surface Mount | Drum Core Wirewound |
Panasonic Industrial Automation Sales | 150 µH | 780 mA | Shielded | 10 mm | 0.394 in | 10 mm | 0.394 " | 250 mOhm | Ferrite | 0.177 " | 4.5 mm | 20 % | 100 kHz | Nonstandard | Surface Mount | Drum Core Wirewound |
Panasonic Industrial Automation Sales | 680 µH | 370 mA | Shielded | 10 mm | 0.394 in | 10 mm | 0.394 " | 1.15 Ohm | Ferrite | 0.177 " | 4.5 mm | 20 % | 100 kHz | Nonstandard | Surface Mount | Drum Core Wirewound |
Panasonic Industrial Automation Sales | 270 µH | 600 mA | Shielded | 10 mm | 0.394 in | 10 mm | 0.394 " | 460 mOhm | Ferrite | 0.177 " | 4.5 mm | 20 % | 100 kHz | Nonstandard | Surface Mount | Drum Core Wirewound |
Panasonic Industrial Automation Sales | 39 µH | 1.6 A | Shielded | 10 mm | 0.394 in | 10 mm | 0.394 " | 74 mOhm | Ferrite | 0.177 " | 4.5 mm | 20 % | 100 kHz | Nonstandard | Surface Mount | Drum Core Wirewound |
Panasonic Industrial Automation Sales | 68 µH | 1.2 A | Shielded | 10 mm | 0.394 in | 10 mm | 0.394 " | 130 mOhm | Ferrite | 0.177 " | 4.5 mm | 20 % | 100 kHz | Nonstandard | Surface Mount | Drum Core Wirewound |
Panasonic Industrial Automation Sales | 18 µH | 2.5 A | Shielded | 10 mm | 0.394 in | 10 mm | 0.394 " | 38 mOhm | Ferrite | 0.177 " | 4.5 mm | 20 % | 100 kHz | Nonstandard | Surface Mount | Drum Core Wirewound |
Panasonic Industrial Automation Sales | 470 mA | Shielded | 10 mm | 0.394 in | 10 mm | 0.394 " | 780 mOhm | Ferrite | 0.177 " | 4.5 mm | 20 % | 100 kHz | Nonstandard | Surface Mount | Drum Core Wirewound | |
Panasonic Industrial Automation Sales | 0.84 A | Shielded | 10 mm | 0.394 in | 10 mm | 0.394 " | 190 mOhm | Ferrite | 0.177 " | 4.5 mm | 20 % | 100 kHz | Nonstandard | Surface Mount | Drum Core Wirewound | |
Panasonic Industrial Automation Sales | 47 µH | 1.55 A | Shielded | 10 mm | 0.394 in | 10 mm | 0.394 " | Ferrite | 0.177 " | 4.5 mm | 20 % | 100 kHz | Nonstandard | Surface Mount | Drum Core Wirewound |
