M20-973 Series

Catalog

CONN HEADER VERT 3POS 2.54MM

Part	Mated Stacking Heights	Operating Temperature [Min]	Operating Temperature [Max]	Style	Termination	Material Flammability Rating	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating	Contact Length - Mating [x]	Pitch - Mating	Pitch - Mating	Number of Rows	Mounting Type	Insulation Color	Contact Material	Contact Shape	Connector Type	Insulation Material	Contact Type	Number of Positions Loaded	Overall Contact Length [x]	Overall Contact Length [x]	Contact Finish - Mating	Current Rating (Amps)	Fastening Type	Shrouding	Number of Positions	Contact Finish - Post

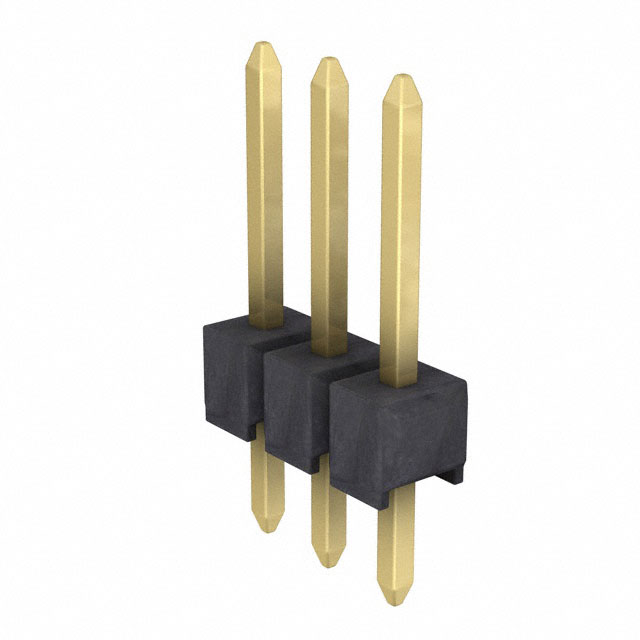

Harwin Inc. M20-9730345	10.04 mm 10.64 mm 11.04 mm 16.54 mm	-40 C	105 ░C	Board to Board Cable	Solder	UL94 V-0	0.1 in	2.54 mm	0.122 in	3.1 mm	7 mm	0.276 in	0.1 "	2.54 mm	1	Through Hole	Black	Brass	Square	Header Cuttable	Nylon 6T Polyamide (PA6T)	Male Pin	All	0.496 in	12.6 mm	Gold	3 A	Push-Pull	Unshrouded
Harwin Inc. M20-9732046	10.04 mm 10.64 mm 11.04 mm 16.54 mm	-40 C	105 ░C	Board to Board Cable	Solder	UL94 V-0	0.1 in	2.54 mm	0.122 in	3.1 mm	7 mm	0.276 in	0.1 "	2.54 mm	1	Through Hole	Black	Brass	Square	Header Cuttable	Nylon 6T Polyamide (PA6T)	Male Pin	All	0.496 in	12.6 mm		3 A	Push-Pull	Unshrouded	20	Tin
Harwin Inc. M20-9730645	10.04 mm 10.64 mm 11.04 mm 16.54 mm	-40 C	105 ░C	Board to Board Cable	Solder	UL94 V-0	0.1 in	2.54 mm	0.122 in	3.1 mm	7 mm	0.276 in	0.1 "	2.54 mm	1	Through Hole	Black	Brass	Square	Header Cuttable	Nylon 6T Polyamide (PA6T)	Male Pin	All	0.496 in	12.6 mm	Gold	3 A	Push-Pull	Unshrouded	6
Harwin Inc. M20-9731645	10.04 mm 10.64 mm 11.04 mm 16.54 mm	-40 C	105 ░C	Board to Board Cable	Solder	UL94 V-0	0.1 in	2.54 mm	0.122 in	3.1 mm	7 mm	0.276 in	0.1 "	2.54 mm	1	Through Hole	Black	Brass	Square	Header Cuttable	Nylon 6T Polyamide (PA6T)	Male Pin	All	0.496 in	12.6 mm	Gold	3 A	Push-Pull	Unshrouded	16
Harwin Inc. M20-9731045	10.04 mm 10.64 mm 11.04 mm 16.54 mm	-40 C	105 ░C	Board to Board Cable	Solder	UL94 V-0	0.1 in	2.54 mm	0.122 in	3.1 mm	7 mm	0.276 in	0.1 "	2.54 mm	1	Through Hole	Black	Brass	Square	Header Cuttable	Nylon 6T Polyamide (PA6T)	Male Pin	All	0.496 in	12.6 mm	Gold	3 A	Push-Pull	Unshrouded	10
Harwin Inc. M20-9730946	10.04 mm 10.64 mm 11.04 mm 16.54 mm	-40 C	105 ░C	Board to Board Cable	Solder	UL94 V-0	0.1 in	2.54 mm	0.122 in	3.1 mm	7 mm	0.276 in	0.1 "	2.54 mm	1	Through Hole	Black	Brass	Square	Header Cuttable	Nylon 6T Polyamide (PA6T)	Male Pin	All	0.496 in	12.6 mm		3 A	Push-Pull	Unshrouded	9	Tin
Harwin Inc. M20-9731145	10.04 mm 10.64 mm 11.04 mm 16.54 mm	-40 C	105 ░C	Board to Board Cable	Solder	UL94 V-0	0.1 in	2.54 mm	0.122 in	3.1 mm	7 mm	0.276 in	0.1 "	2.54 mm	1	Through Hole	Black	Brass	Square	Header Cuttable	Nylon 6T Polyamide (PA6T)	Male Pin	All	0.496 in	12.6 mm	Gold	3 A	Push-Pull	Unshrouded	11
Harwin Inc. M20-9730446	10.04 mm 10.64 mm 11.04 mm 16.54 mm	-40 C	105 ░C	Board to Board Cable	Solder	UL94 V-0	0.1 in	2.54 mm	0.122 in	3.1 mm	7 mm	0.276 in	0.1 "	2.54 mm	1	Through Hole	Black	Brass	Square	Header Cuttable	Nylon 6T Polyamide (PA6T)	Male Pin	All	0.496 in	12.6 mm		3 A	Push-Pull	Unshrouded	4	Tin
Harwin Inc. M20-9733645	10.04 mm 10.64 mm 11.04 mm 16.54 mm	-40 C	105 ░C	Board to Board Cable	Solder	UL94 V-0	0.1 in	2.54 mm	0.122 in	3.1 mm	7 mm	0.276 in	0.1 "	2.54 mm	1	Through Hole	Black	Brass	Square	Header Cuttable	Nylon 6T Polyamide (PA6T)	Male Pin	All	0.496 in	12.6 mm	Gold	3 A	Push-Pull	Unshrouded	36

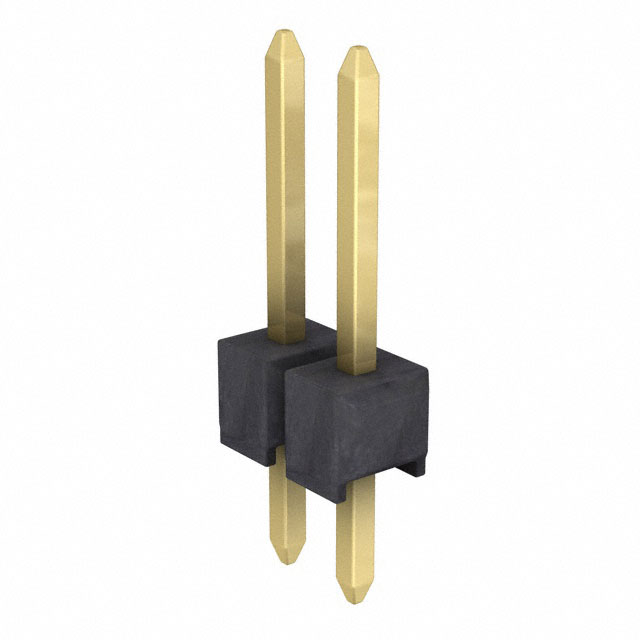

Harwin Inc. M20-9730245	10.04 mm 10.64 mm 11.04 mm 16.54 mm	-40 C	105 ░C	Board to Board Cable	Solder	UL94 V-0	0.1 in	2.54 mm	0.122 in	3.1 mm	7 mm	0.276 in	0.1 "	2.54 mm	1	Through Hole	Black	Brass	Square	Header Cuttable	Nylon 6T Polyamide (PA6T)	Male Pin	All	0.496 in	12.6 mm	Gold	3 A	Push-Pull	Unshrouded	2
