5595101 Series

Manufacturer: DIALIGHT

Catalog

LED PANEL RED DIFF SNAP-IN

Part	Lens Color	Wavelength - Peak	Current	Viewing Angle	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Millicandela Rating	Type	Lamp Color	Lens Size	Lens Size	Lens Style	Lens Transparency	Voltage	Panel Cutout Shape	Termination Style	Termination Style	Termination Style
DIALIGHT 5595101809F	Red	650 nm	25 mA	50 °	6.35 mm	0.25 in	34 mcd	LED	Red	5 mm	T-1 3/4	Round with Domed Top	Diffused	2.1 V	Round

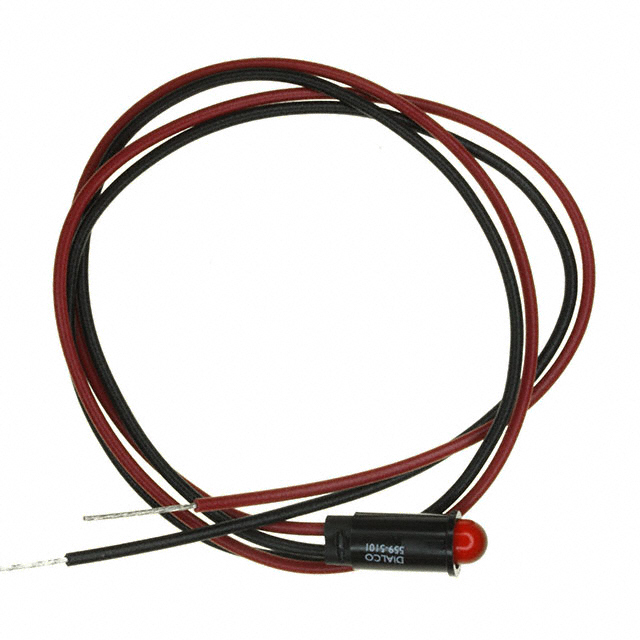

DIALIGHT 5595101007F		650 nm	25 mA	50 °	6.35 mm	0.25 in	34 mcd	LED	Red	5 mm	T-1 3/4	Round with Domed Top	Diffused	2.1 V	Round	Wire Leads	14 in	355.6 mm

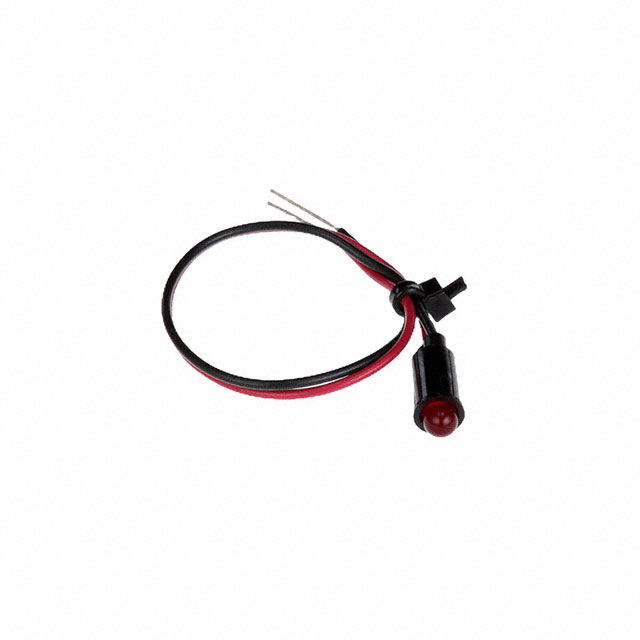

DIALIGHT 5595101003F	Red	650 nm	25 mA	50 °	6.35 mm	0.25 in	34 mcd	LED	Red	5 mm	T-1 3/4	Round with Domed Top	Diffused	2.1 V	Round

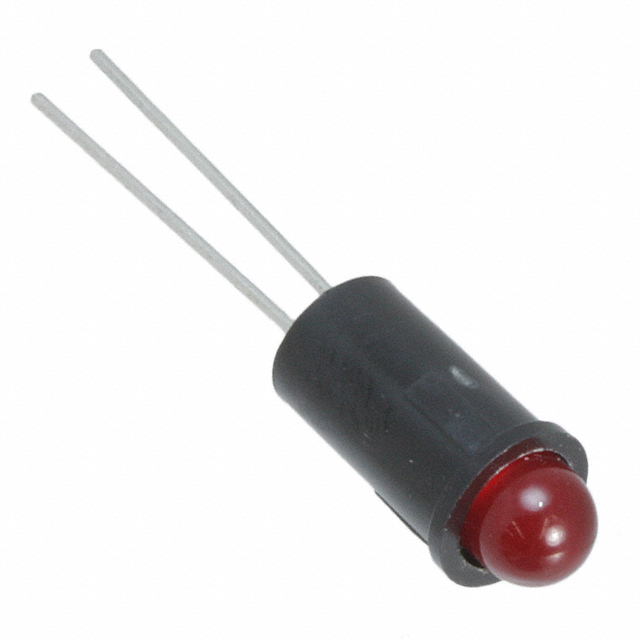

DIALIGHT 5595101001F	Red	650 nm	25 mA	50 °	6.35 mm	0.25 in	34 mcd	LED	Red	5 mm	T-1 3/4	Round with Domed Top	Diffused	2.1 V	Round	PC Pin
DIALIGHT 5595101807F	Red	650 nm	25 mA	50 °	6.35 mm	0.25 in	34 mcd	LED	Red	5 mm	T-1 3/4	Round with Domed Top	Diffused	2.1 V	Round	Wire Leads	14 in	355.6 mm
