PRPC034 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER R/A 34POS 2.54MM
| Part | Contact Finish Thickness - Post | Material Flammability Rating | Insulation Color | Contact Material | Insulation Height | Insulation Height | Contact Type | Shrouding | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Number of Positions [custom] | Connector Type | Style | Contact Length - Mating | Contact Length - Mating | Current Rating (Amps) | Number of Rows | Contact Finish - Post | Termination | Contact Finish Thickness - Mating | Number of Positions Loaded | Insulation Material | Mounting Type | Contact Finish - Mating | Overall Contact Length | Overall Contact Length | Number of Rows [custom] | Number of Positions | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Overall Contact Length [x] | Overall Contact Length [x] | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

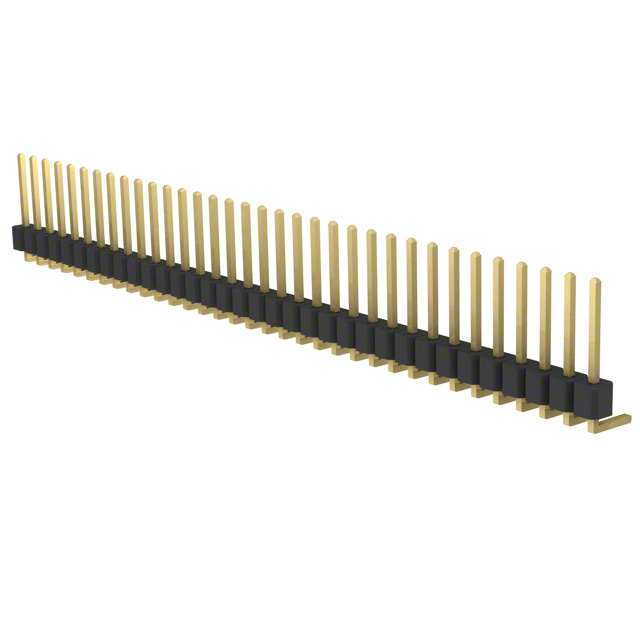

 Sullins Connector Solutions | Flash | UL94 V-0 | Black | Brass | 0.098 " | 2.5 mm | Male Pin | Unshrouded | Square | -40 C | 105 ░C | Push-Pull | 3.05 mm | 0.12 in | 0.1 " | 2.54 mm | 34 | Header Breakaway | Board to Board Cable | 8.08 mm | 0.318 in | 3 A | 1 | Gold | Solder | Flash | All | Polybutylene Terephthalate (PBT) | Right Angle Through Hole | Gold | |||||||||

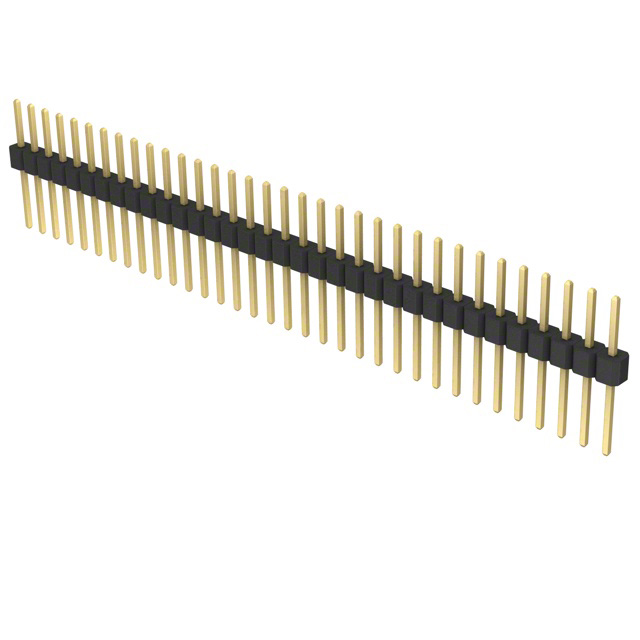

 Sullins Connector Solutions | Flash | UL94 V-0 | Black | Brass | 0.098 " | 2.5 mm | Male Pin | Unshrouded | Square | -40 C | 105 ░C | Push-Pull | 3.05 mm | 0.12 in | 0.1 " | 2.54 mm | 34 | Header Breakaway | Board to Board Cable | 5.84 mm | 0.23 in | 3 A | 1 | Gold | Solder | Flash | All | Polybutylene Terephthalate (PBT) | Through Hole | Gold | 0.448 in | 11.39 mm | |||||||

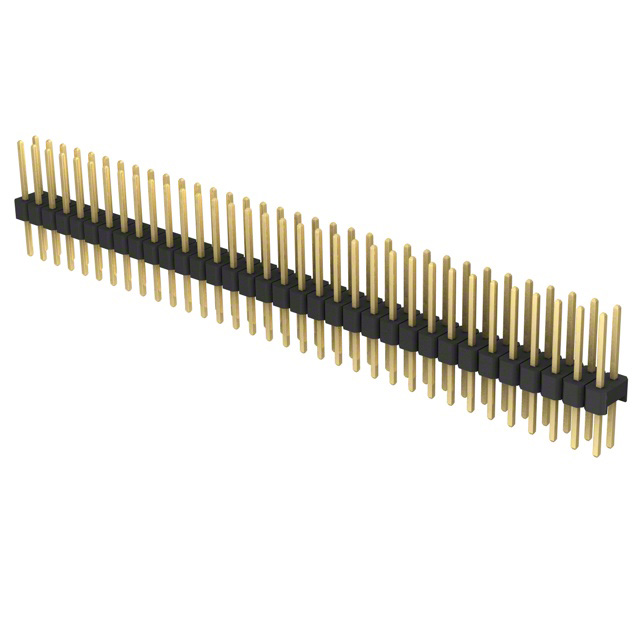

 Sullins Connector Solutions | Flash | UL94 V-0 | Black | Brass | 0.098 " | 2.5 mm | Male Pin | Unshrouded | Square | -40 C | 105 ░C | Push-Pull | 3.05 mm | 0.12 in | 0.1 " | 2.54 mm | Header Breakaway | Board to Board Cable | 5.84 mm | 0.23 in | 3 A | Gold | Solder | Flash | All | Polybutylene Terephthalate (PBT) | Through Hole | Gold | 0.448 in | 11.39 mm | 2 | 68 positions | 0.1 in | 2.54 mm | |||||
 Sullins Connector Solutions | Flash | UL94 V-0 | Black | Brass | 0.098 " | 2.5 mm | Male Pin | Unshrouded | Square | -40 C | 105 ░C | Push-Pull | 3.05 mm | 0.12 in | 0.1 " | 2.54 mm | 34 | Header Breakaway | Board to Board Cable | 8.08 mm | 0.318 in | 3 A | 1 | Gold | Solder | Flash | All | Polybutylene Terephthalate (PBT) | Through Hole | Gold | 13.63 mm | 0.537 in | |||||||
 Sullins Connector Solutions | Flash | UL94 V-0 | Black | Brass | 0.098 " | 2.5 mm | Male Pin | Unshrouded | Square | -40 C | 105 ░C | Push-Pull | 3.05 mm | 0.12 in | 0.1 " | 2.54 mm | Header Breakaway | Board to Board Cable | 8.08 mm | 0.318 in | 3 A | Gold | Solder | Flash | All | Polybutylene Terephthalate (PBT) | Through Hole | Gold | 2 | 68 positions | 0.1 in | 2.54 mm | 13.63 mm | 0.537 in | |||||
 Sullins Connector Solutions | Flash | UL94 V-0 | Black | Brass | 0.098 " | 2.5 mm | Male Pin | Unshrouded | Square | -40 C | 105 ░C | Push-Pull | 8.13 mm | 0.32 in | 0.1 " | 2.54 mm | 34 | Header Breakaway | Board to Board Cable | 5.84 mm | 0.23 in | 3 A | 1 | Gold | Solder | Flash | All | Polybutylene Terephthalate (PBT) | Through Hole | Gold | 16.47 mm | 0.648 in | |||||||
 Sullins Connector Solutions | Flash | UL94 V-0 | Black | Brass | 0.098 " | 2.5 mm | Male Pin | Unshrouded | Square | -40 C | 105 ░C | Push-Pull | 5.58 mm | 0.22 in | 0.1 " | 2.54 mm | Header Breakaway | Board to Board Cable | 8.08 mm | 0.318 in | 3 A | Gold | Solder | Flash | All | Polybutylene Terephthalate (PBT) | Through Hole | Gold | 0.637 in | 2 | 68 positions | 0.1 in | 2.54 mm | 16.17 mm |
