6E17C015 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
CONN D-SUB PLUG 15POS R/A SLDR
| Part | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Mounting Type | Flange Feature | Flange Feature | Shell Size, Connector Layout | Contact Finish | Number of Positions | Material Flammability Rating | Termination | Contact Type | Backset Spacing | Backset Spacing | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Connector Style | Number of Rows [custom] | Connector Type | Features | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Copper Alloy | Black | -55 C | 105 ░C | Glass Filled Nylon Polyamide (PA) | Right Angle Through Hole | Housing/Shell | 4-40 | 2 | Gold | 15 | UL94 V-0 | Solder | Signal | 8.08 mm | 0.318 " | 3 µin | 0.076 Ám | 5 A | D-Sub | 2 | Plug Male Pins | Board Lock Grounding Indents Shielded | Nickel Plated Steel |

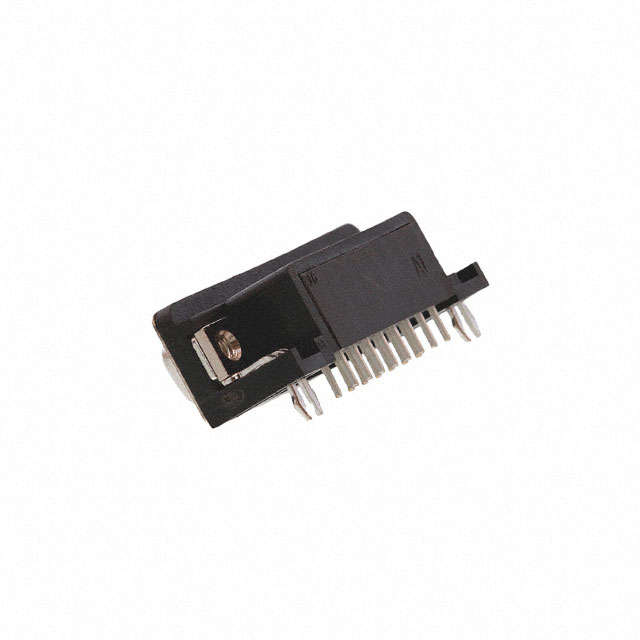

 Amphenol ICC (Commercial Products) | Copper Alloy | Black | -55 C | 105 ░C | Glass Filled Nylon Polyamide (PA) | Right Angle Through Hole | Housing/Shell | 4-40 | 2 | Gold | 15 | UL94 V-0 | Solder | Signal | 8.08 mm | 0.318 " | 15 µin | 0.38 µm | 5 A | D-Sub | 2 | Receptacle Female Sockets | Board Lock Shielded | Nickel Plated Steel |
Amphenol ICC (Commercial Products) | Copper Alloy | Black | -55 C | 105 ░C | Glass Filled Nylon Polyamide (PA) | Right Angle Through Hole | 4-40 Mating Side Female Screwlock | 2 | Gold | 15 | UL94 V-0 | Solder | Signal | 8.08 mm | 0.318 " | 30 Áin | 0.76 Ám | 5 A | D-Sub | 2 | Receptacle Female Sockets | Board Lock Shielded | Nickel Plated Steel | |
 Amphenol ICC (Commercial Products) | Copper Alloy | Black | -55 C | 105 ░C | Glass Filled Nylon Polyamide (PA) | Right Angle Through Hole | Housing/Shell | 4-40 | 2 | Gold | 15 | UL94 V-0 | Solder | Signal | 8.08 mm | 0.318 " | 30 Áin | 0.76 Ám | 5 A | D-Sub | 2 | Receptacle Female Sockets | Board Lock Shielded | Nickel Plated Steel |

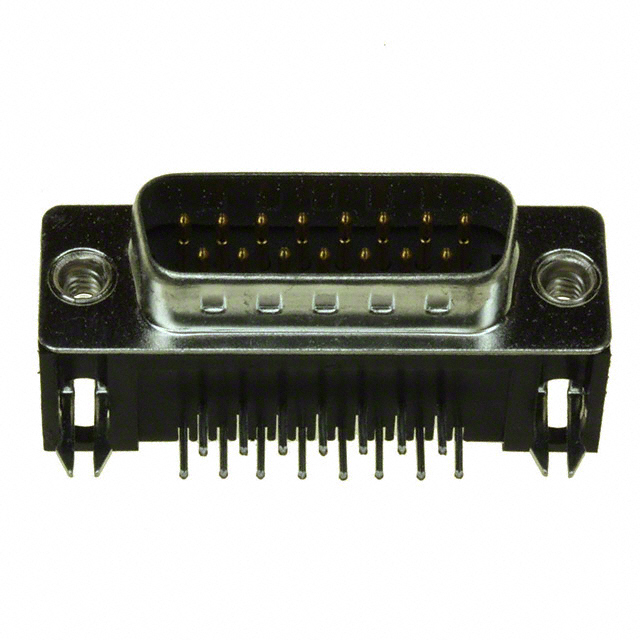

 Amphenol ICC (Commercial Products) | Copper Alloy | Black | -55 C | 105 ░C | Glass Filled Nylon Polyamide (PA) | Right Angle Through Hole | Housing/Shell | 4-40 | 2 | Gold | 15 | UL94 V-0 | Solder | Signal | 8.08 mm | 0.318 " | 30 Áin | 0.76 Ám | 5 A | D-Sub | 2 | Plug Male Pins | Board Lock Grounding Indents Shielded | Nickel Plated Steel |
