- Series

Manufacturer: Adam Tech

Catalog

CABLE GLAND 2.5-4.5MM M8

Part	Outside Cable Diameter (Min) [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Thread Length	Thread Length	Material	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Ingress Protection	Thread Size	Includes	Type	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max)	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Panel Hole Size [custom]

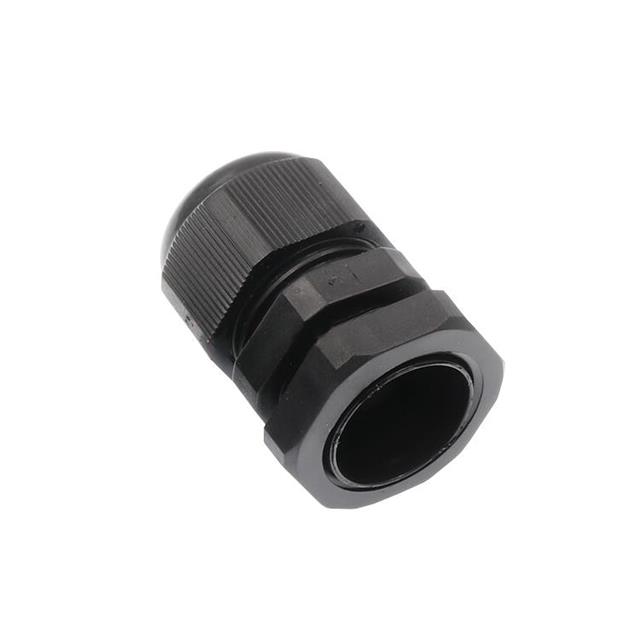

Adam Tech CG-P-M8-1.25	2.5 mm	0.098 in	0.327 in	8.3 mm	7.5 mm	0.295 in	Polyamide (PA66) Nylon 6/6	4.5 mm	0.177 in	IP68 - Dust Tight Waterproof	M8	Locknut Seal	Cable Gland
Adam Tech CG-P-M10-1.5		0.118 in			8 mm	0.315 "	Polyamide (PA66) Nylon 6/6		0.236 in	IP68 - Dust Tight Waterproof	M10	Locknut Seal	Cable Gland	0.406 in	10.3 mm	3 mm	6 mm
Adam Tech CG-P-36		23 mm			15 mm	0.591 in	Polyamide (PA66) Nylon 6/6		1.26 in	IP68 - Dust Tight Waterproof	PG36	Locknut Seal	Cable Gland	1.85 in	47 mm		32 mm	0.906 "
Adam Tech CG-P-M12-1.5					9 mm	0.354 in	Polyamide (PA66) Nylon 6/6		0.256 in	IP68 - Dust Tight Waterproof	M12	Locknut Seal	Cable Gland	0.484 in	12.3 mm		6.5 mm		4 mm	0.157 in

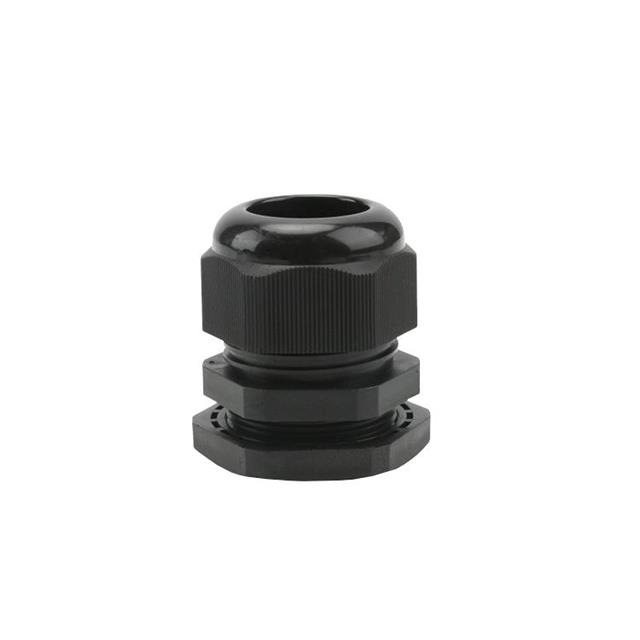

Adam Tech CG-P-21					12 mm	0.472 in	Polyamide (PA66) Nylon 6/6			IP68 - Dust Tight Waterproof	PG21	Locknut Seal	Cable Gland	1.126 in	28.6 mm				13 mm	0.512 in	18.01 mm	0.709 in
Adam Tech CG-P-11		5 mm			9 mm	0.354 in	Polyamide (PA66) Nylon 6/6			IP68 - Dust Tight Waterproof	PG11	Locknut Seal	Cable Gland	0.736 in	18.7 mm			0.197 in			10 mm	0.394 in
Adam Tech CG-P-42		30 mm			18.01 mm	0.709 in	Polyamide (PA66) Nylon 6/6			IP68 - Dust Tight Waterproof	PG42	Locknut Seal	Cable Gland		54 mm		38 mm	1.181 in				1.496 in	2.126 in
Adam Tech CG-P-M18-1.5		5 mm			9 mm	0.354 in	Polyamide (PA66) Nylon 6/6			IP68 - Dust Tight Waterproof	M18	Locknut Seal	Cable Gland	0.72 in	18.3 mm			0.197 in			10 mm	0.394 in
Adam Tech CG-P-M50-1.5		30 mm			18.01 mm	0.709 in	Polyamide (PA66) Nylon 6/6			IP68 - Dust Tight Waterproof	M50	Locknut Seal	Cable Gland	1.98 in	50.3 mm		38 mm	1.181 in				1.496 in
Adam Tech CG-P-M16		4.5 mm			9 mm	0.354 in	Polyamide (PA66) Nylon 6/6			IP68 - Dust Tight Waterproof	M16	Locknut Seal	Cable Gland	0.642 "	16.3 mm			0.177 in			8.5 mm	0.335 in
