ETQ-P6 Series

Catalog

FIXED IND 3.2UH 10.8A 4.92 MOHM

Part	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material - Core	Package / Case	Current - Saturation (Isat)	Inductance	Mounting Type	Shielding	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Inductance Frequency - Test	DC Resistance (DCR)	Type	Ratings
Panasonic Industrial Automation Sales ETQ-P6F3R2HFA	10.8 A	0.492 in	0.492 "	12.5 mm	12.5 mm	Ferrite	2-SMD J-Lead	8.6 A	3.2 µH	Surface Mount	Shielded	25 %	5.7 mm	0.224 in	4.92 mOhm	100 kHz
Panasonic Industrial Automation Sales ETQ-P6F1R3LFA	12.5 Amps	0.492 in	0.492 "	12.5 mm	12.5 mm	Ferrite	2-SMD J-Lead	18.6 A	1.3 µH	Surface Mount	Shielded	30 %	5.7 mm	0.224 in	3.3 mOhm	100 kHz

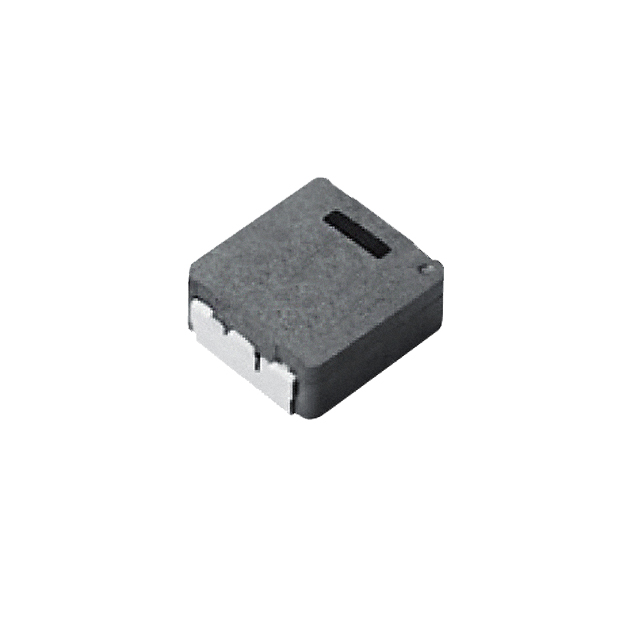

Panasonic Industrial Automation Sales ETQ-P6M3R3YLC	17 A	0.429 "	0.394 in	10.9 mm	10 mm	Metal Composite	2-SMD J-Lead	26 A	3.3 µH	Surface Mount	Shielded	20 %	6 mm	0.236 in		100 kHz	6.6 mOhm	Drum Core Wirewound	AEC-Q200
Panasonic Industrial Automation Sales ETQ-P6F0R6BFA	19 A	0.492 in	0.492 "	12.5 mm	12.5 mm	Ferrite	2-SMD J-Lead		580 nH	Surface Mount	Shielded	20 %	5.7 mm	0.224 in	1.44 mOhm	100 kHz
Panasonic Industrial Automation Sales ETQ-P6F102HFA	6.5 A	0.492 in	0.492 "	12.5 mm	12.5 mm	Ferrite	2-SMD J-Lead	4.7 A	10.2 µH	Surface Mount	Shielded	25 %	5.7 mm	0.224 in	13.3 mOhm	100 kHz
Panasonic Industrial Automation Sales ETQ-P6F1R6SFA	12.5 Amps	0.492 in	0.492 "	12.5 mm	12.5 mm	Ferrite	2-SMD J-Lead		1.6 µH	Surface Mount	Shielded	30 %	5.7 mm	0.224 in	3.3 mOhm	100 kHz
