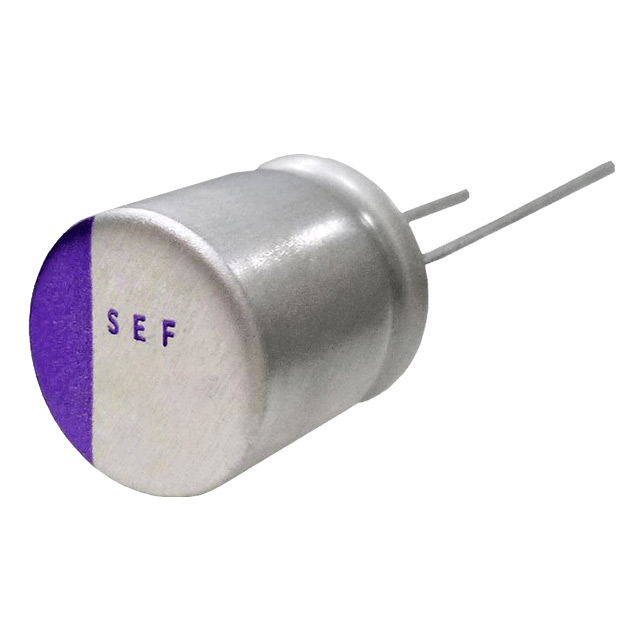

25SEF Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
CAP ALUM POLY 180UF 20% 25V TH
| Part | Mounting Type | ESR (Equivalent Series Resistance) | Type | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Ripple Current @ Low Frequency | Voltage - Rated | Lead Spacing | Lead Spacing | Height - Seated (Max) [Max] | Height - Seated (Max) | Ripple Current @ High Frequency | Capacitance | Lifetime @ Temp. | Size / Dimension [diameter] | Size / Dimension [diameter] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | Through Hole | 16 mOhm | Polymer | 20 % | -55 C | 125 °C | General Purpose | 73.5 mA | 25 VDC | 0.138 in | 3.5 mm | 0.472 in | 12 mm | 1.47 A | 180 µF | 1000 Hrs | 0.315 in | 8 mm | Can Radial |
