ADS8505 Series
Manufacturer: Texas Instruments
Beta
⌘K
16-BIT, 250-KSPS, 1-CH SAR ADC WITH PROGRAMMABLE (±10/±5/±3.3V) INPUT RANGES AND PARALLEL INTERFACE
| Part | Reference Type | Supplier Device Package | Number of Bits | Number of Inputs | Architecture | Input Type | Number of A/D Converters | Voltage - Supply, Analog | Package / Case | Package / Case [x] | Package / Case [y] | Mounting Type | Voltage - Supply, Digital | Ratio - S/H:ADC | Configuration | Sampling Rate (Per Second) | Data Interface | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case [custom] | Package / Case [custom] | Supplied Contents | Input Range | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | External Internal | 28-SOIC | 16 | 1 | SAR | Single Ended | 1 | 5 V | 28-SOIC | 0.295 in | 7.5 mm | Surface Mount | 5 V | 1:1 | S/H-ADC | 250 k | Parallel | 85 °C | -40 °C | |||||
 Texas Instruments | External Internal | 28-SSOP | 16 | 1 | SAR | Single Ended | 1 | 5 V | 28-SSOP | Surface Mount | 5 V | 1:1 | S/H-ADC | 250 k | Parallel | 85 °C | -40 °C | 0.209 in | 5.3 mm | |||||
Texas Instruments | External Internal | 28-SSOP | 16 | 1 | SAR | Single Ended | 1 | 5 V | 28-SSOP | Surface Mount | 5 V | 1:1 | S/H-ADC | 250 k | Parallel | 85 °C | -40 °C | 0.209 in | 5.3 mm | |||||
Texas Instruments | External Internal | 28-SSOP | 16 | 1 | SAR | Single Ended | 1 | 5 V | 28-SSOP | Surface Mount | 5 V | 1:1 | S/H-ADC | 250 k | Parallel | 85 °C | -40 °C | 0.209 in | 5.3 mm | |||||
Texas Instruments | External Internal | 28-SSOP | 16 | 1 | SAR | Single Ended | 1 | 5 V | 28-SSOP | Surface Mount | 5 V | 1:1 | S/H-ADC | 250 k | Parallel | 85 °C | -40 °C | 0.209 in | 5.3 mm | |||||

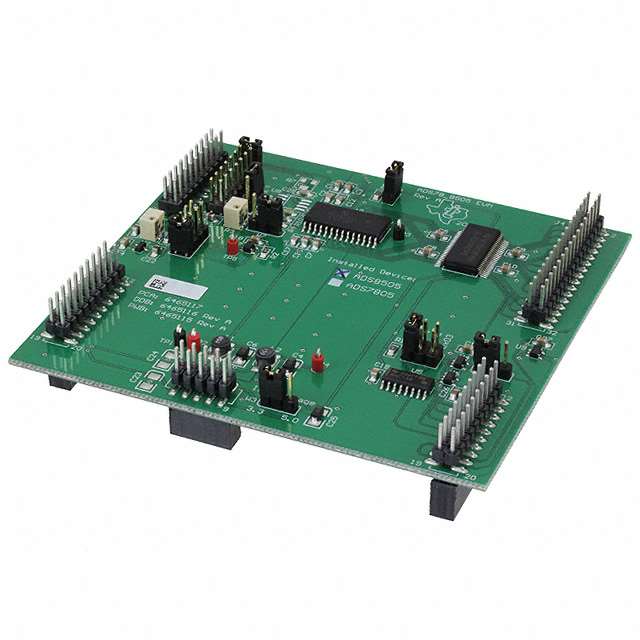

 Texas Instruments | 16 | 1 | 250 k | Parallel | Board(s) | 10 V | ADS8505 | |||||||||||||||||
Texas Instruments | External Internal | 28-SOIC | 16 | 1 | SAR | Single Ended | 1 | 5 V | 28-SOIC | 0.295 in | 7.5 mm | Surface Mount | 5 V | 1:1 | S/H-ADC | 250 k | Parallel | 85 °C | -40 °C | |||||
 Texas Instruments | External Internal | 28-SSOP | 16 | 1 | SAR | Single Ended | 1 | 5 V | 28-SSOP | Surface Mount | 5 V | 1:1 | S/H-ADC | 250 k | Parallel | 85 °C | -40 °C | 0.209 in | 5.3 mm | |||||
Texas Instruments | External Internal | 28-SSOP | 16 | 1 | SAR | Single Ended | 1 | 5 V | 28-SSOP | Surface Mount | 5 V | 1:1 | S/H-ADC | 250 k | Parallel | 85 °C | -40 °C | 0.209 in | 5.3 mm | |||||
Texas Instruments | External Internal | 28-SSOP | 16 | 1 | SAR | Single Ended | 1 | 5 V | 28-SSOP | Surface Mount | 5 V | 1:1 | S/H-ADC | 250 k | Parallel | 85 °C | -40 °C | 0.209 in | 5.3 mm |
