86403CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

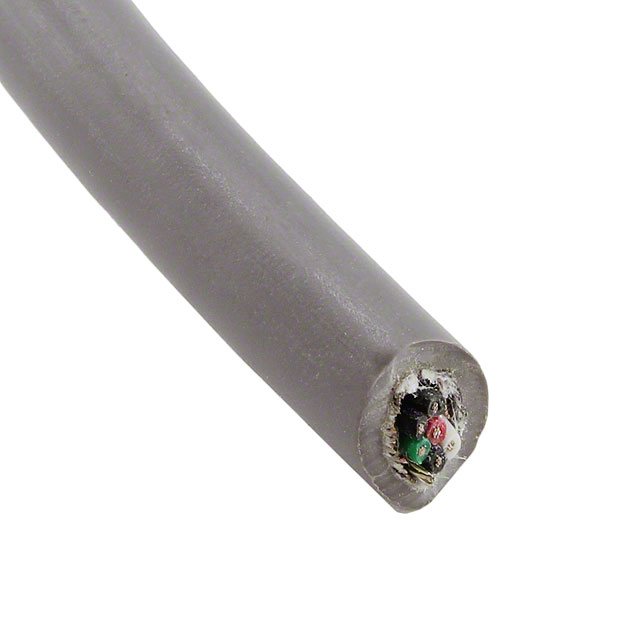

DATA CABLE 6CONDUCTORS 28AWG 6.1MM 300V GRAY SPOOL
| Part | Shield Material | Shield Coverage | Features | Number of Conductors | Conductor Insulation | Cable Type | Length [x] | Length [x] | Wire Gauge | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Voltage | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Shield Type | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 85 % 100 % | Biological Compatibility Drain Wire | 6 | Poly-Vinyl Chloride (PVC) | Multi-Pair | 100 ft | 30.5 m | 28 AWG | Slate | 7 | 36 AWG | ISO 10993 UL Style 2661 | 1.143 mm | 0.045 in | 300 VDC | Copper Tinned | 0.24 " | 6.1 mm | Poly-Vinyl Chloride (PVC) | Braid Foil | ||
 ALPHA WIRE | Aluminum Copper Tinned | 85 % 100 % | Biological Compatibility Drain Wire | 6 | Poly-Vinyl Chloride (PVC) | Multi-Pair | 28 AWG | Slate | 7 | 36 AWG | ISO 10993 UL Style 2661 | 1.143 mm | 0.045 in | 300 VDC | Copper Tinned | 0.24 " | 6.1 mm | Poly-Vinyl Chloride (PVC) | Braid Foil | 304.8 m | 1000 ft | ||
ALPHA WIRE | Aluminum Copper Tinned | 85 % 100 % | Biological Compatibility Drain Wire | 6 | Poly-Vinyl Chloride (PVC) | Multi-Pair | 28 AWG | Slate | 7 | 36 AWG | ISO 10993 UL Style 2661 | 1.143 mm | 0.045 in | 300 VDC | Copper Tinned | 0.24 " | 6.1 mm | Poly-Vinyl Chloride (PVC) | Braid Foil | 152.4 m | 500 ft |
