J80020 Series

Catalog

CU-CN M12X-BS C6A THR 2PC

Part	Shell Size - Insert	Number of Positions	Termination	Shell Finish	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Applications	Contact Finish - Mating	Color	Primary Material	Shielding	Fastening Type	Features	Contact Material	Current Rating (Amps)	Orientation [x]	Shell Material	Voltage Rating	Mounting Feature	Insert Material [custom]	Insert Material [custom]	Ingress Protection	Connector Type

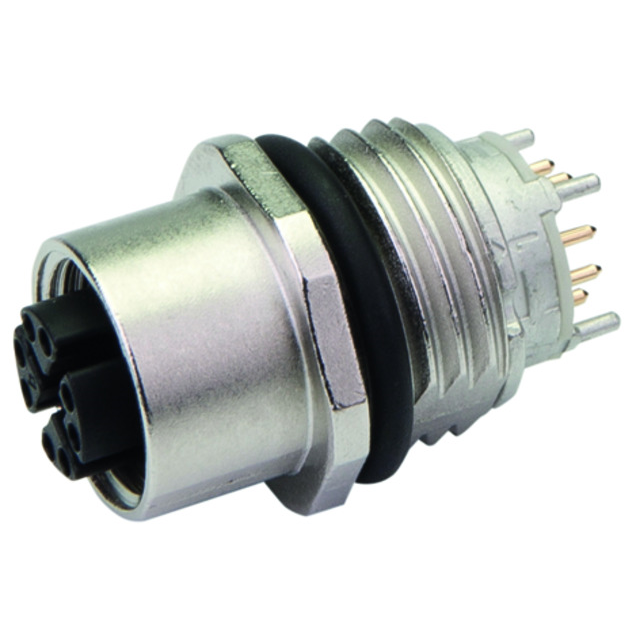

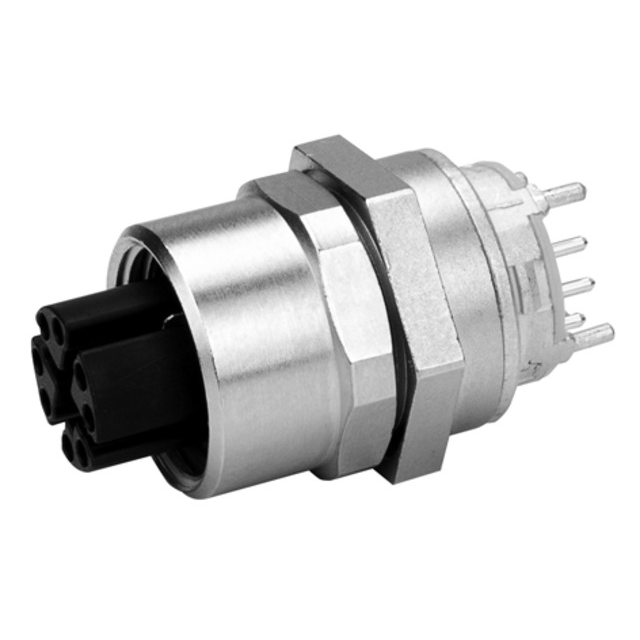

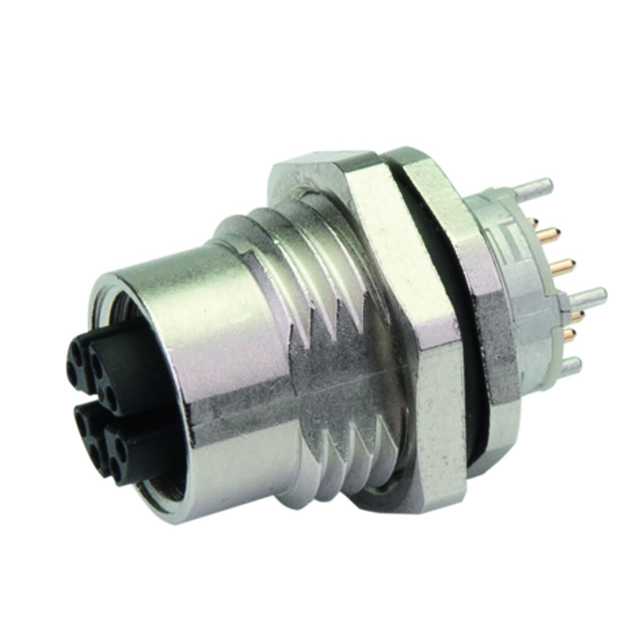

Telegartner Inc 100007548	M12-8	8	Solder	Nickel	85 °C	-40 C	Panel Mount Through Hole	Industrial	Gold	Silver	Metal	Unshielded	Threaded	Board Guide	Bronze	0.5 A	X	Brass and Zinc Die Cast	50 VAC 60 VDC	Bulkhead - Front Side Nut	Nylon	Polyamide (PA)	IP67 - Dust Tight Waterproof	Plug Female Sockets
Telegartner Inc 100007427	M12-8	8	Solder	Nickel	85 °C	-40 C	Panel Mount Through Hole	Industrial	Gold	Silver	Metal	Unshielded	Threaded	Board Guide	Bronze	0.5 A	X	Brass and Zinc Die Cast	50 VAC 60 VDC	Bulkhead - Front Side Nut	Nylon	Polyamide (PA)	IP67 - Dust Tight Waterproof	Plug Female Sockets

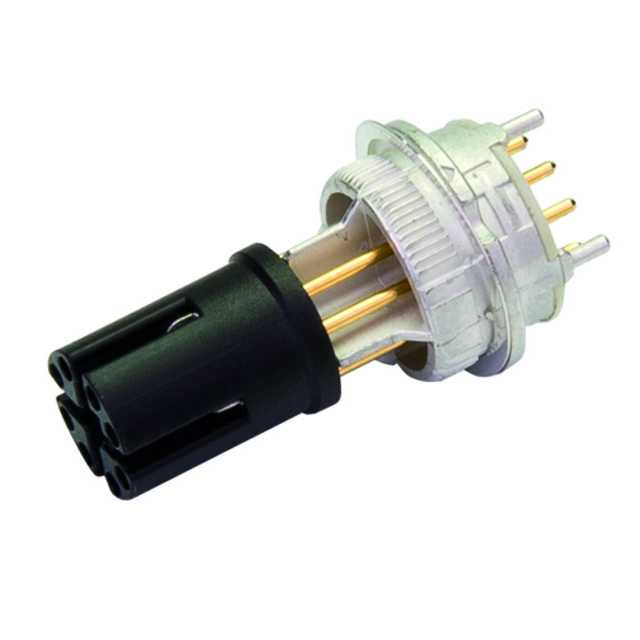

Telegartner Inc 100007550	M12-8	8	Solder		85 °C	-40 C	Through Hole	Industrial	Gold	Black		Unshielded		Board Guide Insert Only Requires Shell	Bronze	0.5 A	X		50 VAC 60 VDC		Nylon	Polyamide (PA)	IP67 - Dust Tight Waterproof	Insert Female Sockets
Telegartner Inc 100007428	M12-8	8	Solder	Nickel	85 °C	-40 C	Panel Mount Through Hole	Industrial	Gold	Silver	Metal	Unshielded	Threaded	Board Guide	Bronze	0.5 A	X	Brass and Zinc Die Cast	50 VAC 60 VDC	Bulkhead - Front Side Nut	Nylon	Polyamide (PA)	IP67 - Dust Tight Waterproof	Plug Female Sockets
Telegartner Inc 100007429	M12-8	8	Solder	Nickel	85 °C	-40 C	Panel Mount Through Hole	Industrial	Gold	Silver	Metal	Unshielded	Threaded	Board Guide	Bronze	0.5 A	X	Brass and Zinc Die Cast	50 VAC 60 VDC	Bulkhead - Rear Side Nut	Nylon	Polyamide (PA)	IP67 - Dust Tight Waterproof	Plug Female Sockets
