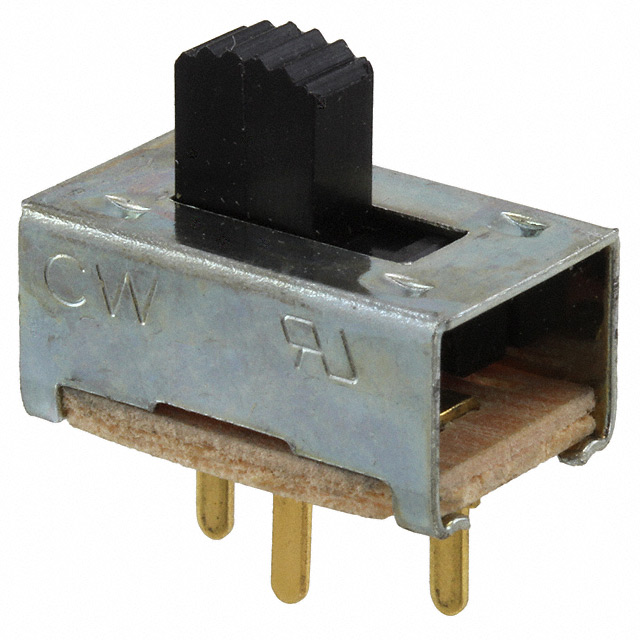

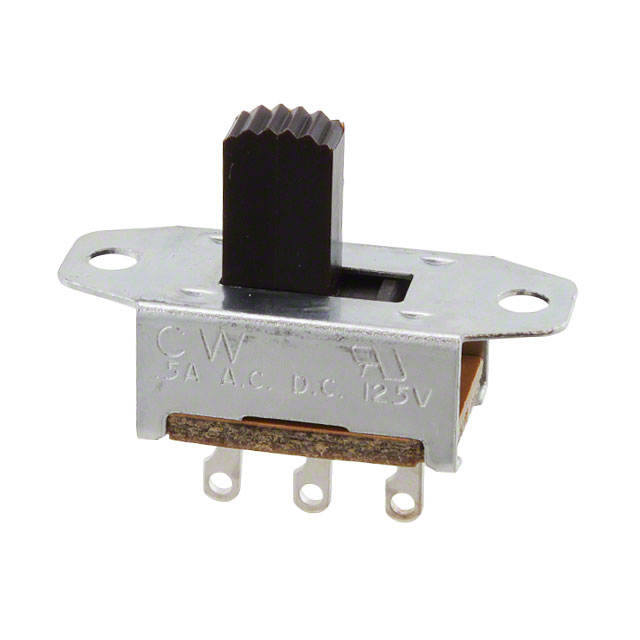

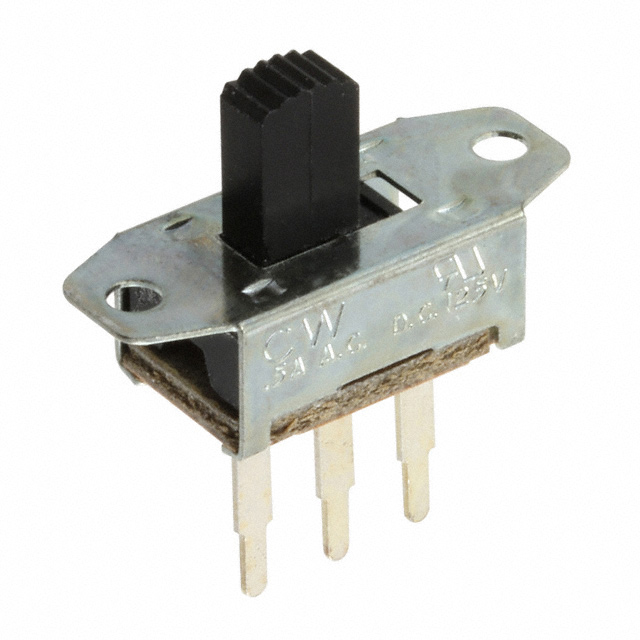

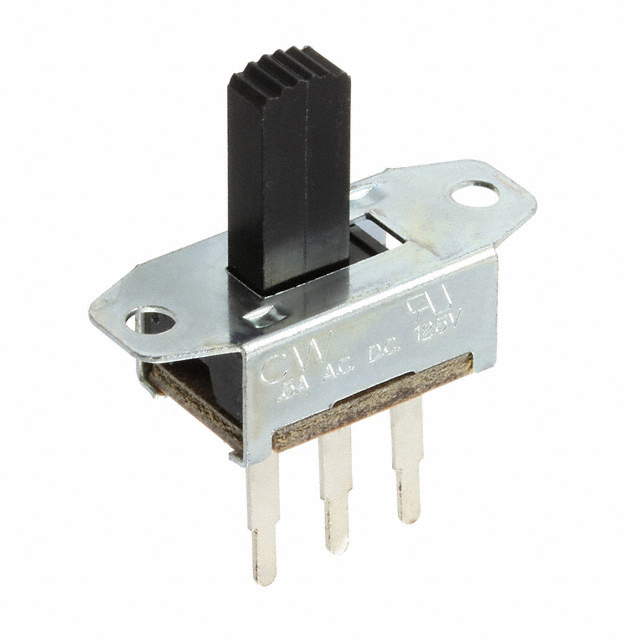

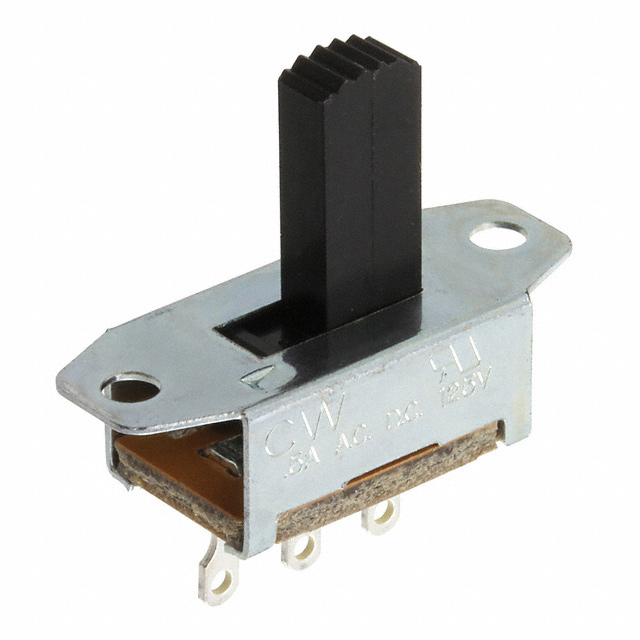

GF-124 Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH SLIDE SPDT 500MA 125V
| Part | Mechanical Life | Electrical Life | Actuator Material | Switch Travel | Circuit | Switch Function | Termination Style | Contact Timing | Current Rating (Amps) | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Actuator Type | Contact Material | Voltage Rating - DC | Mounting Type | Actuator Length [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 3.61 mm | SPDT | On-On | Solder Lug | Not Specified | 500 mA | Silver | -10 °C | 104 °C | 125 V | Standard | Copper | 125 VDC | Panel Mount | 11.5 mm | |
 CW Industries | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 3.61 mm | SPDT | On-On | PC Pin | Not Specified | 500 mA | Silver | -10 °C | 104 °C | 125 V | Standard | Copper | 125 VDC | Panel Mount | 5.08 mm | |
 CW Industries | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 3.61 mm | SPDT | On-On | PC Pin | Not Specified | 500 mA | Silver | -10 °C | 104 °C | 125 V | Standard | Copper | 125 VDC | Through Hole | 5.08 mm | |
 CW Industries | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 3.61 mm | SPDT | On-On | PC Pin | Not Specified | 500 mA | Silver | -10 °C | 104 °C | 125 V | Standard | Copper | 125 VDC | Through Hole | 5.08 mm | |
 CW Industries | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 3.61 mm | SPDT | On-On | PC Pin | Not Specified | 500 mA | Silver | -10 °C | 104 °C | 125 V | Standard | Copper | 125 VDC | Panel Mount | 11.5 mm | |
CW Industries | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 3.61 mm | SPDT | On-On | Solder Lug | Not Specified | 500 mA | Silver | -10 °C | 104 °C | 125 V | Standard | Copper | 125 VDC | Panel Mount | 5.08 mm | |
CW Industries | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 3.61 mm | SPDT | On-On | PC Pin | Not Specified | 500 mA | Silver | -10 °C | 104 °C | 125 V | Standard | Copper | 125 VDC | Through Hole | 5.08 mm | |
 CW Industries | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 3.61 mm | SPDT | On-On | Solder Lug | Not Specified | 500 mA | Silver | -10 °C | 104 °C | 125 V | Standard | Copper | 125 VDC | Panel Mount | 5.08 mm | |
 CW Industries | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 3.61 mm | SPDT | On-On | Solder Lug | Not Specified | 500 mA | Silver | -10 °C | 104 °C | 125 V | Standard | Copper | 125 VDC | Panel Mount | 5.08 mm | |

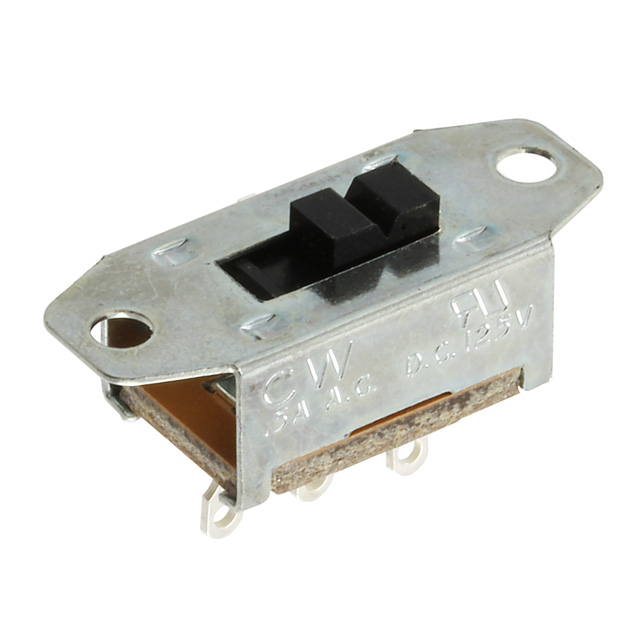

 CW Industries | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 3.61 mm | SPDT | On-On (Line Voltage Selector) | Solder Lug | Not Specified | 500 mA | Silver | -10 °C | 104 °C | 125 V | Screwdriver Slot | Copper | 125 VDC | Panel Mount | 1.27 mm | No Marking |
