325-100 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 3.18 MM, 100 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Material - Insulation	Termination Rows [custom]	Read Out	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Contact Type	Flange Feature	Card Type	Pitch	Pitch	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness	Card Thickness	Gender	Number of Rows [custom]	Termination	Number of Positions/Bay/Row	Number of Positions	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]

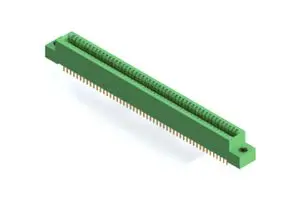

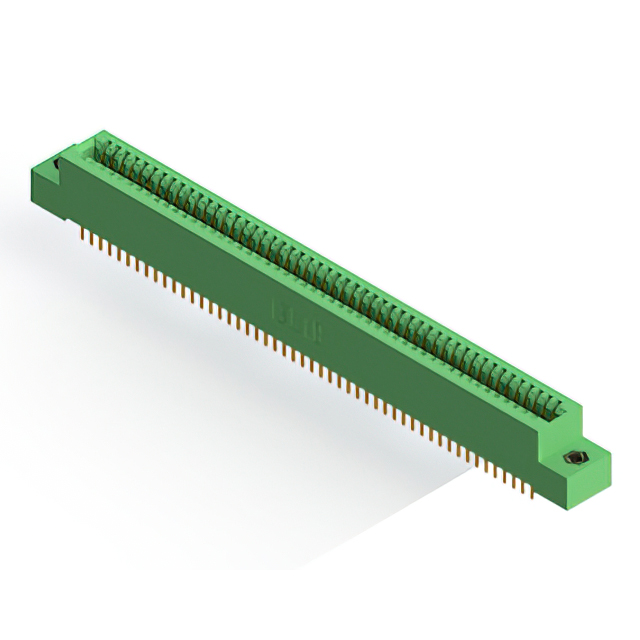

EDAC Inc. 325-100-520-207	Diallyl Phthalate (DAP)	2	Dual	Green	0.25 Ám	10 Áin	Copper Alloy	Cantilever	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Dual Edge	0.1 "	2.54 mm	Through Hole	-65 ░C	125 °C	3.18 mm	0.125 in	Female	2	Solder	50	100	Gold

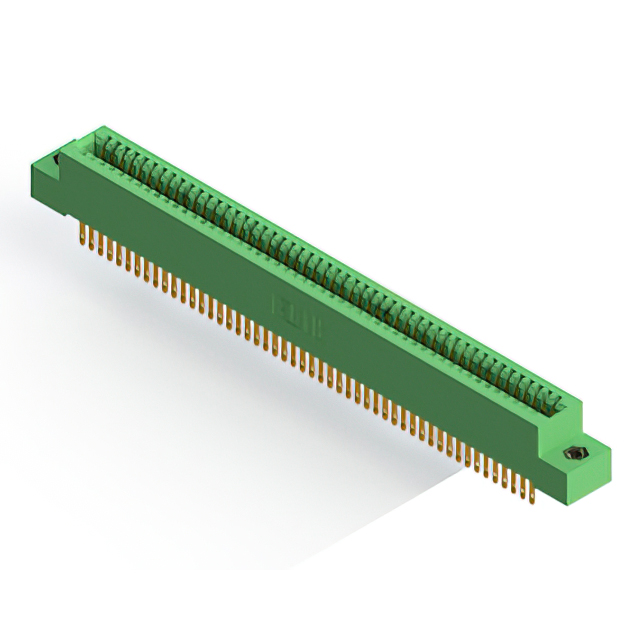

EDAC Inc. 325-100-500-208	Diallyl Phthalate (DAP)	2	Dual	Green	0.25 Ám	10 Áin	Copper Alloy	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	0.1 "	2.54 mm	Through Hole	-65 ░C	125 °C	3.18 mm	0.125 in	Female	2	Solder Eyelet(s)	50	100	Gold
EDAC Inc. 325-100-540-209	Diallyl Phthalate (DAP)	2	Dual	Green	0.25 Ám	10 Áin	Copper Alloy	Cantilever	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	0.1 "	2.54 mm	Through Hole	-65 ░C	125 °C	3.18 mm	0.125 in	Female	2	Wire Wrap	50	100	Gold	0.16 "	4.06 mm
EDAC Inc. 325-100-520-201	Diallyl Phthalate (DAP)	2	Dual	Green	0.25 Ám	10 Áin	Copper Alloy	Cantilever		Non Specified - Dual Edge	0.1 "	2.54 mm	Through Hole	-65 ░C	125 °C	3.18 mm	0.125 in	Female	2	Solder	50	100	Gold
EDAC Inc. 325-100-540-208	Diallyl Phthalate (DAP)	2	Dual	Green	0.25 Ám	10 Áin	Copper Alloy	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	0.1 "	2.54 mm	Through Hole	-65 ░C	125 °C	3.18 mm	0.125 in	Female	2	Wire Wrap	50	100	Gold

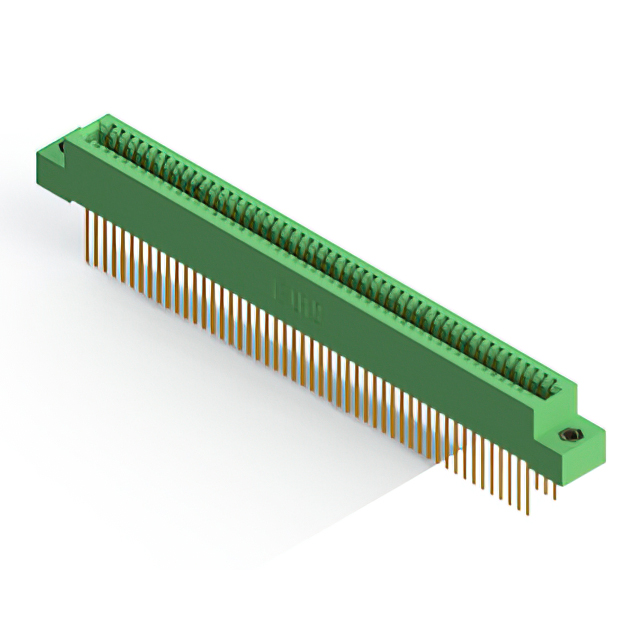

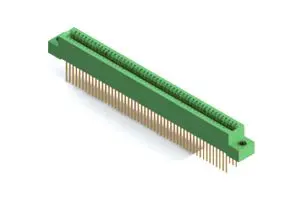

EDAC Inc. 325-100-540-207	Diallyl Phthalate (DAP)	2	Dual	Green	0.25 Ám	10 Áin	Copper Alloy	Cantilever	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Dual Edge	0.1 "	2.54 mm	Through Hole	-65 ░C	125 °C	3.18 mm	0.125 in	Female	2	Wire Wrap	50	100	Gold

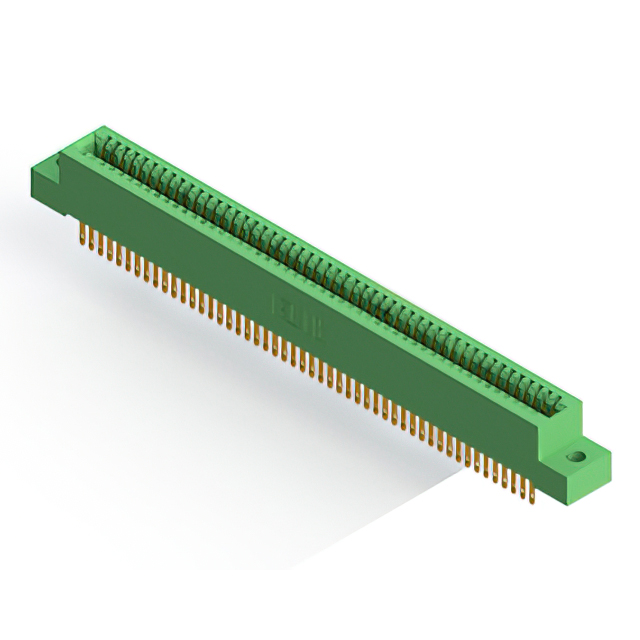

EDAC Inc. 325-100-500-209	Diallyl Phthalate (DAP)	2	Dual	Green	0.25 Ám	10 Áin	Copper Alloy	Cantilever	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	0.1 "	2.54 mm	Through Hole	-65 ░C	125 °C	3.18 mm	0.125 in	Female	2	Solder Eyelet(s)	50	100	Gold	0.16 "	4.06 mm
EDAC Inc. 325-100-540-201	Diallyl Phthalate (DAP)	2	Dual	Green	0.25 Ám	10 Áin	Copper Alloy	Cantilever		Non Specified - Dual Edge	0.1 "	2.54 mm	Through Hole	-65 ░C	125 °C	3.18 mm	0.125 in	Female	2	Wire Wrap	50	100	Gold
