SI8435 Series

Catalog

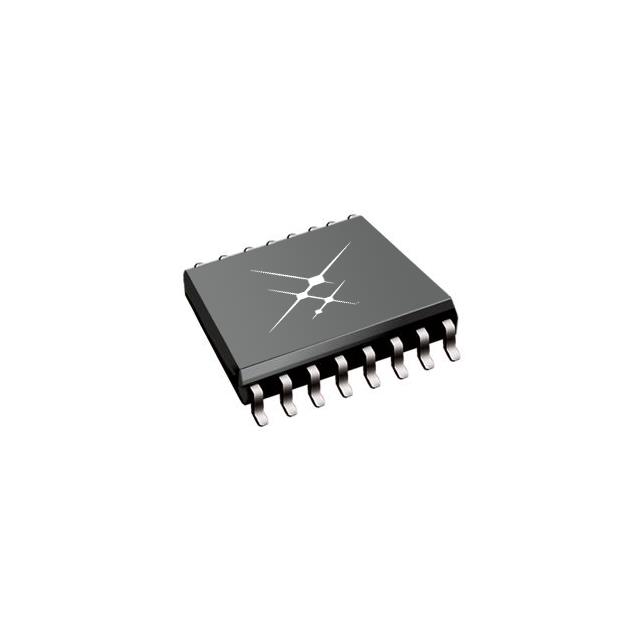

IC ISOLATOR 3CH 5.5V 16-SOIC

Part	Voltage - Isolation	Package / Case	Package / Case	Channel Type	Data Rate	Voltage - Supply [Max]	Voltage - Supply [Min]	Technology	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Supplier Device Package	Pulse Width Distortion (Max) [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Type	Number of Channels	Common Mode Transient Immunity (Min) [Min]	Inputs - Side 1/Side 2 [custom]	Package / Case	Package / Case
Skyworks Solutions Inc. SI8435BB-C-ISR	2500 Vrms	16-SOIC	0.154 in 3.9 mm	Unidirectional	150 Mbps	5.5 V	2.7 V	Capacitive Coupling	9.5 ns	9.5 ns	16-SOIC	2.5 ns	3.8 ns	2.8 ns	Surface Mount	125 °C	-40 C	General Purpose	3	25 kV/µs	3
Skyworks Solutions Inc. SI8435BB-C-IS	2500 Vrms	16-SOIC		Unidirectional	150 Mbps	5.5 V	2.7 V	Capacitive Coupling	9.5 ns	9.5 ns	16-SOIC	2.5 ns	3.8 ns	2.8 ns	Surface Mount	125 °C	-40 C	General Purpose	3	25 kV/µs	3	7.5 mm	0.295 "
Skyworks Solutions Inc. SI8435BB-D-IS	2500 Vrms	16-SOIC		Unidirectional	150 Mbps	5.5 V	2.7 V	Capacitive Coupling	9.5 ns	9.5 ns	16-SOIC	2.5 ns	3.8 ns	2.8 ns	Surface Mount	125 °C	-40 C	General Purpose	3	25 kV/µs	3	7.5 mm	0.295 "
Skyworks Solutions Inc. SI8435BB-C-IS1R	2500 Vrms	16-SOIC	0.154 in 3.9 mm	Unidirectional	150 Mbps	5.5 V	2.7 V	Capacitive Coupling	9.5 ns	9.5 ns	16-SOIC	2.5 ns	3.8 ns	2.8 ns	Surface Mount	125 °C	-40 C	General Purpose	3	25 kV/µs	3
Skyworks Solutions Inc. SI8435BB-C-IS1	2500 Vrms	16-SOIC	0.154 in 3.9 mm	Unidirectional	150 Mbps	5.5 V	2.7 V	Capacitive Coupling	9.5 ns	9.5 ns	16-SOIC	2.5 ns	3.8 ns	2.8 ns	Surface Mount	125 °C	-40 C	General Purpose	3	25 kV/µs	3
Skyworks Solutions Inc. SI8435BB-D-IS1R	2500 Vrms	16-SOIC	0.154 in 3.9 mm	Unidirectional	150 Mbps	5.5 V	2.7 V	Capacitive Coupling	9.5 ns	9.5 ns	16-SOIC	2.5 ns	3.8 ns	2.8 ns	Surface Mount	125 °C	-40 C	General Purpose	3	25 kV/µs	3
