1546657 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN BARRIER STRIP 6CIRC 0.25"
| Part | Material Flammability Rating | Mounting Type | Terminal Screw Finish | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Terminal Screw Material | Number of Circuits | Voltage Rating | Top Termination | Bottom Termination | Color | Wire Gauge [Min] | Wire Gauge [Max] | Number of Rows | Pitch | Pitch | Number of Wire Entries | Current Rating (Amps) | Terminal Block Type | Barrier Type | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | UL94 V-0 | Through Hole | Nickel | -40 C | 105 ░C | Nylon 6/6 Polyamide (PA66) | Steel | 6 | 300 VDC | Screws with Captive Plate | PC Pin | Black | 16 AWG | 30 AWG | 1 | 6.35 mm | 0.25 in | 6 | 10 A | Barrier Block | 2 Wall (Dual) | |
 TE Connectivity AMP Connectors | UL94 V-0 | Through Hole | Nickel | -40 C | 105 ░C | Nylon 6/6 Polyamide (PA66) | Steel | 7 | 300 VDC | Screws with Captive Plate | PC Pin | Black | 16 AWG | 30 AWG | 1 | 6.35 mm | 0.25 in | 10 A | Barrier Block | 2 Wall (Dual) | 7 | |

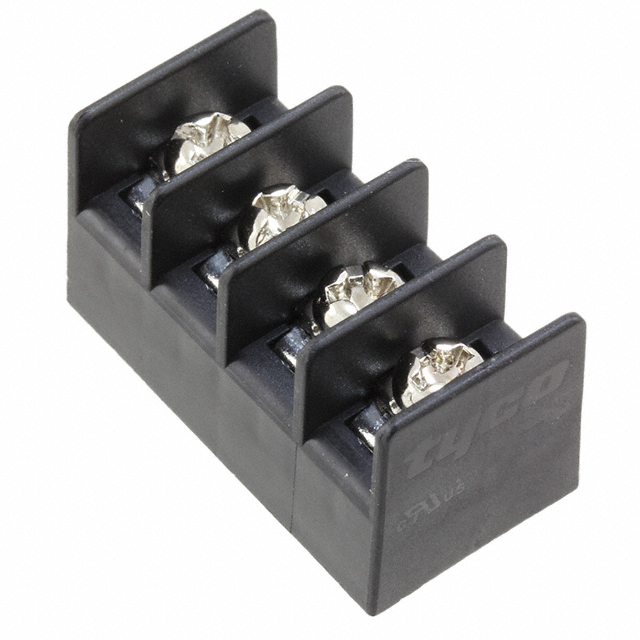

 TE Connectivity AMP Connectors | UL94 V-0 | Through Hole | Nickel | -40 C | 105 ░C | Nylon 6/6 Polyamide (PA66) | Steel | 4 | 300 VDC | Screws with Captive Plate | PC Pin | Black | 16 AWG | 30 AWG | 1 | 6.35 mm | 0.25 in | 4 | 10 A | Barrier Block | 2 Wall (Dual) |
