PCW1J Series
Manufacturer: Bourns Inc.
Beta
⌘K

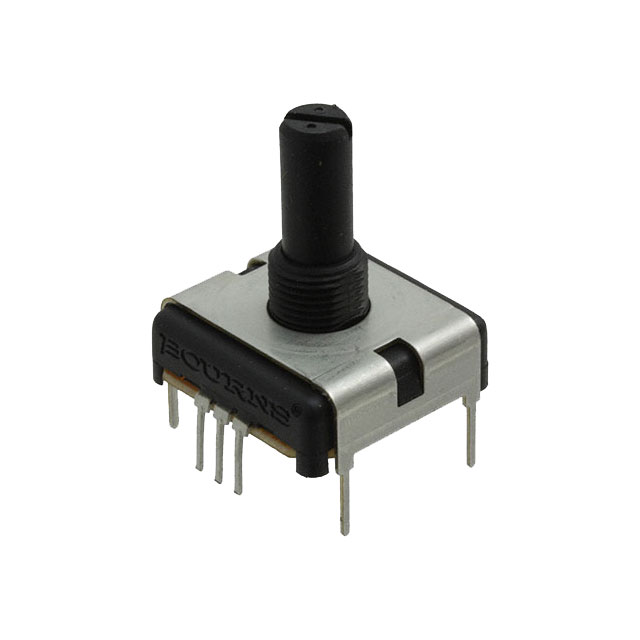

POT 10K OHM 3/4W PLASTIC LINEAR
| Part | Resistance (Ohms) | Size - Body [x] | Size - Body [x] | Size - Body [y] | Size - Body [y] | Adjustment Type | Resistive Material | Actuator Type | Termination Style | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Bushing Thread | Temperature Coefficient | Taper | Number of Gangs | Built in Switch | Mounting Type | Tolerance | Number of Turns | Actuator Length [x] | Actuator Length [x] | Power (Watts) | Power (Watts) | Rotation | Resistance (Ohms) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | 10k | 0.92 " | 23.37 mm | 0.874 " | 22.2 mm | Top Adjustment | Conductive Plastic | Slotted | PC Pins | 6 mm | 0.236 in | M9 x 0.75 | 1000 ppm/°C | Linear | 1 | Detent | Panel Mount | 20 % | 1 | 24 mm | 0.945 in | 3/4W | 0.75 W | 300 ░ | |
 Bourns Inc. | 100k | 0.92 " | 23.37 mm | 0.874 " | 22.2 mm | Top Adjustment | Conductive Plastic | Flatted | PC Pins | 6.35 mm | 0.25 in | M9 x 0.75 | 1000 ppm/°C | Linear | 1 | None | Panel Mount | 20 % | 1 | 19.05 mm | 0.75 in | 3/4W | 0.75 W | 300 ░ | |
Bourns Inc. | 10k | 0.92 " | 23.37 mm | 0.874 " | 22.2 mm | Top Adjustment | Conductive Plastic | Slotted | PC Pins | 6.35 mm | 0.25 in | M9 x 0.75 | 1000 ppm/°C | Linear | 1 | None | Panel Mount | 20 % | 1 | 19.05 mm | 0.75 in | 3/4W | 0.75 W | 300 ░ | |
Bourns Inc. | 10k | 0.92 " | 23.37 mm | 0.874 " | 22.2 mm | Top Adjustment | Conductive Plastic | Slotted | PC Pins | 6.35 mm | 0.25 in | M9 x 0.75 | 1000 ppm/°C | Linear | 1 | None | Panel Mount | 20 % | 1 | 19.05 mm | 0.75 in | 3/4W | 0.75 W | 300 ░ | |
Bourns Inc. | 100k | 0.92 " | 23.37 mm | 0.874 " | 22.2 mm | Top Adjustment | Conductive Plastic | Flatted | PC Pins | 6.35 mm | 0.25 in | M9 x 0.75 | 1000 ppm/°C | Linear | 1 | None | Panel Mount | 20 % | 1 | 22.23 mm | 0.875 in | 3/4W | 0.75 W | 300 ░ | |
Bourns Inc. | 0.92 " | 23.37 mm | 0.874 " | 22.2 mm | Top Adjustment | Conductive Plastic | Slotted | PC Pins | 6.35 mm | 0.25 in | M9 x 0.75 | 1000 ppm/°C | Linear | 1 | None | Panel Mount | 20 % | 1 | 19.05 mm | 0.75 in | 3/4W | 0.75 W | 300 ░ | 50 kOhms | |
Bourns Inc. | 100k | 0.92 " | 23.37 mm | 0.874 " | 22.2 mm | Top Adjustment | Conductive Plastic | Flatted | PC Pins | 6.35 mm | 0.25 in | M9 x 0.75 | 1000 ppm/°C | Linear | 1 | None | Panel Mount | 20 % | 1 | 19.05 mm | 0.75 in | 3/4W | 0.75 W | 300 ░ | |
Bourns Inc. | 10k | 0.92 " | 23.37 mm | 0.874 " | 22.2 mm | Top Adjustment | Conductive Plastic | Flatted | PC Pins | 6.35 mm | 0.25 in | M9 x 0.75 | 1000 ppm/°C | Linear | 1 | None | Panel Mount | 20 % | 1 | 22.23 mm | 0.875 in | 3/4W | 0.75 W | 300 ░ | |
Bourns Inc. | 10k | 0.92 " | 23.37 mm | 0.874 " | 22.2 mm | Top Adjustment | Conductive Plastic | Flatted | PC Pins | 6.35 mm | 0.25 in | M9 x 0.75 | 1000 ppm/°C | Linear | 1 | None | Panel Mount | 20 % | 1 | 22.23 mm | 0.875 in | 3/4W | 0.75 W | 300 ░ | |
Bourns Inc. | 10k | 0.92 " | 23.37 mm | 0.874 " | 22.2 mm | Top Adjustment | Conductive Plastic | Slotted | PC Pins | 6.35 mm | 0.25 in | M9 x 0.75 | 1000 ppm/°C | Linear | 1 | Detent | Panel Mount | 20 % | 1 | 19.05 mm | 0.75 in | 3/4W | 0.75 W | 300 ░ |
