86303CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

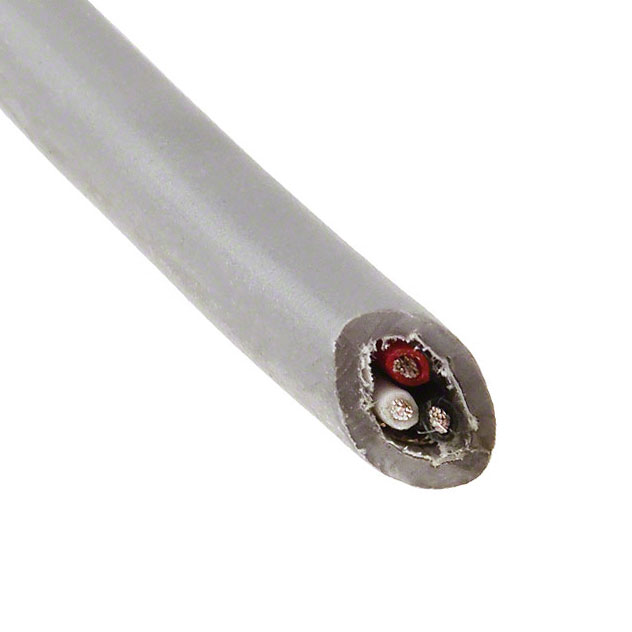

MULTICONDUCTOR CABLE, XTRA GUARD FLEX, SHIELDED, 3 CONDUCTOR, 22 AWG, 0.38 MM², 100 FT, 30.5 M
| Part | Ratings | Jacket (Insulation) Material | Shield Type | Cable Type | Voltage | Wire Gauge | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand | Conductor Material | Number of Conductors | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Shield Coverage | Length [x] | Length [x] | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | ISO 10993 UL Style 2661 | Poly-Vinyl Chloride (PVC) | Braid Foil | Multi-Conductor | 300 V | 22 AWG | Poly-Vinyl Chloride (PVC) | 5.51 mm | 0.217 in | 19 Strands | 34 AWG | Copper Tinned | 3 | Aluminum Copper Tinned | 0.04 in | 1.016 mm | Biological Compatibility Drain Wire | 90 % 100 % | 30.5 m | 100 ft | Slate |
 ALPHA WIRE | ISO 10993 UL Style 2661 | Poly-Vinyl Chloride (PVC) | Braid Foil | Multi-Conductor | 300 V | 22 AWG | Poly-Vinyl Chloride (PVC) | 5.51 mm | 0.217 in | 19 Strands | 34 AWG | Copper Tinned | 3 | Aluminum Copper Tinned | 0.04 in | 1.016 mm | Biological Compatibility Drain Wire | 90 % 100 % | 30.5 m | 100 ft | Slate |
