RELAY GEN PURPOSE SPST 18A 240V
| Part | Contact Rating (Current) | Operating Temperature [Min] | Operating Temperature [Max] | Coil Type | Coil Voltage | Must Release Voltage | Termination Style | Must Operate Voltage | Mounting Type | Contact Form | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|

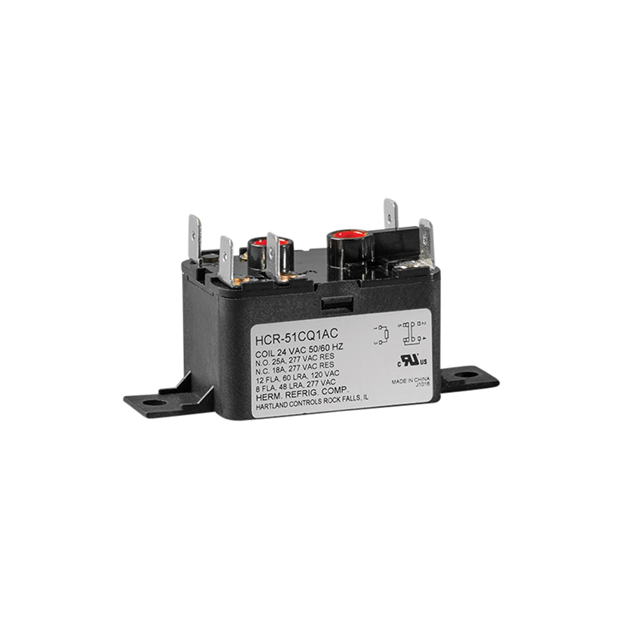

 Hartland Controls/Littelfuse | 18 A | -40 C | 65 °C | Non Latching | 240 VAC/DC | 48 VAC | Quick Connect - 0.250" (6.3mm) | 176 VAC | Chassis Mount | SPST-NO (DM) (1 Form X) | General Purpose |

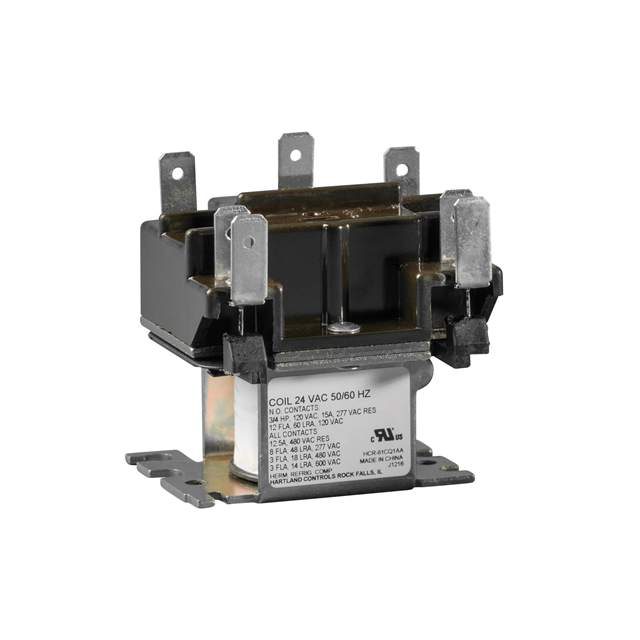

 Hartland Controls/Littelfuse | 15 A | -40 C | 65 °C | Non Latching | 24 VAC | 4.8 VAC | Quick Connect - 0.250" (6.3mm) | Chassis Mount | DPDT (2 Form C) | General Purpose |
