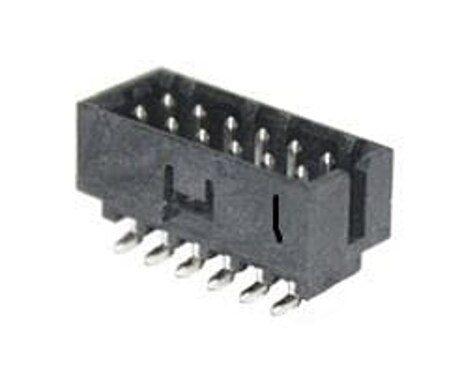

151118 Series

2.00mm Pitch, Milli-Grid PCB Header, Dual Row, Vertical, Surface Mount, 0.05µm Gold (Au) Plating, without Peg, with Pick and Place Cap, 14 Circuits, Glow-Wire Capable, Tube

Manufacturer: Molex

Catalog

2.00mm Pitch, Milli-Grid PCB Header, Dual Row, Vertical, Surface Mount, 0.05µm Gold (Au) Plating, without Peg, with Pick and Place Cap, 14 Circuits, Glow-Wire Capable, Tube

...

Part	Style	Number of Positions	Contact Shape	Fastening Type	Number of Positions Loaded	Connector Type	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Termination	Contact Length - Mating	Contact Length - Mating	Insulation Color	Contact Type	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mated Stacking Heights	Voltage Rating	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Features	Contact Material	Insulation Height [z]	Insulation Height [z]	Applications
Molex 1511181126	Board to Board Cable	26	Square	Detent Lock	All	Header	Shrouded - 4 Wall	2 çm	78.7 çin	UL94 V-0	Surface Mount	0.079 in	2 mm	2	105 ░C	-55 °C	Gold	Solder	0.142 in	3.6 mm	Black	Male Pin	Tin	1.97 Áin	0.05 Ám	8.14 mm 8.35 mm	125 VAC	2 A	0.079 in	2 mm	Board Guide Glow Wire Compliant Pick and Place	Copper Alloy	6.4 mm	0.252 in
Molex 1511181530	Board to Board Cable	30	Square	Detent Lock	All	Header	Shrouded - 4 Wall	2 çm	78.7 çin	UL94 V-0	Surface Mount	0.079 in	2 mm	2	105 ░C	-55 °C	Gold	Solder	0.142 in	3.61 mm	Black	Male Pin	Tin	2 µin	0.051 µm		125 VAC	2 A	0.079 in	2 mm	Glow Wire Compliant	Copper Alloy	6.4 mm	0.252 in	Automotive General Purpose Telecommunications
Molex 1511181236	Board to Board Cable	36	Square	Detent Lock	All	Header	Shrouded - 4 Wall	2 çm	78.7 çin	UL94 V-0	Surface Mount	0.079 in	2 mm	2	105 ░C	-55 °C	Gold	Solder	0.142 in	3.6 mm	Black	Male Pin	Tin	15 µin	0.38 µm	8.14 mm 8.35 mm	125 VAC	2 A	0.079 in	2 mm	Board Guide Glow Wire Compliant Pick and Place	Copper Alloy	6.4 mm	0.252 in
Molex 1511181038	Board to Board Cable	38	Square	Detent Lock	All	Header	Shrouded - 4 Wall	2 çm	78.7 çin	UL94 V-0	Surface Mount	0.079 in	2 mm	2	105 ░C	-55 °C		Solder	0.142 in	3.6 mm	Black	Male Pin	Tin	78.7 µin	2 µm	8.14 mm 8.35 mm	125 VAC	2 A	0.079 in	2 mm	Board Guide Glow Wire Compliant Pick and Place	Copper Alloy	6.4 mm	0.252 in
Molex 1511181198	Board to Board Cable	48	Square	Detent Lock	All	Header	Shrouded - 4 Wall	2 çm	78.7 çin	UL94 V-0	Surface Mount	0.079 in	2 mm	2	105 ░C	-55 °C	Gold	Solder	0.142 in	3.6 mm	Black	Male Pin	Tin	1.97 Áin	0.05 Ám	8.14 mm 8.35 mm	125 VAC	2 A	0.079 in	2 mm	Board Guide Glow Wire Compliant Pick and Place	Copper Alloy	6.4 mm	0.252 in

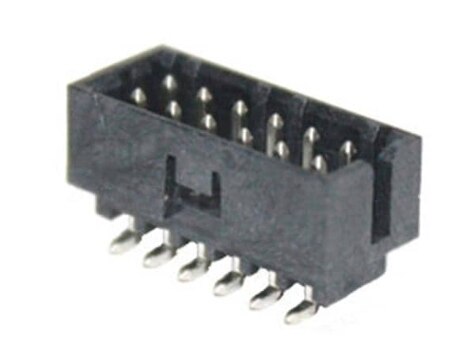

Molex 1511181680	Board to Board Cable	30	Square	Detent Lock	All	Header	Shrouded - 4 Wall	2 çm	78.7 çin	UL94 V-0	Surface Mount	0.079 in	2 mm	2	105 ░C	-55 °C	Gold	Solder	0.142 in	3.6 mm	Black	Male Pin	Tin	15 µin	0.38 µm		125 VDC	2 A	0.079 in	2 mm	Board Guide Glow Wire Compliant Pick and Place	Copper Alloy	6.4 mm	0.252 in
Molex 1511181188	Board to Board Cable	38	Square	Detent Lock	All	Header	Shrouded - 4 Wall	2 çm	78.7 çin	UL94 V-0	Surface Mount	0.079 in	2 mm	2	105 ░C	-55 °C	Gold	Solder	0.142 in	3.6 mm	Black	Male Pin	Tin	1.97 Áin	0.05 Ám	8.14 mm 8.35 mm	125 VAC	2 A	0.079 in	2 mm	Board Guide Glow Wire Compliant Pick and Place	Copper Alloy	6.4 mm	0.252 in
Molex 1511181036	Board to Board Cable	36	Square	Detent Lock	All	Header	Shrouded - 4 Wall	2 çm	78.7 çin	UL94 V-0	Surface Mount	0.079 in	2 mm	2	105 ░C	-55 °C		Solder	0.142 in	3.6 mm	Black	Male Pin	Tin	78.7 µin	2 µm	8.14 mm 8.35 mm	125 VAC	2 A	0.079 in	2 mm	Board Guide Glow Wire Compliant Pick and Place	Copper Alloy	6.4 mm	0.252 in
Molex 1511180430	Board to Board Cable	30	Square	Detent Lock	All	Header	Shrouded - 4 Wall	2 çm	78.7 çin	UL94 V-0	Surface Mount	0.079 in	2 mm	2	105 ░C	-55 °C		Solder	0.142 in	3.6 mm	Black	Male Pin	Tin	78.7 µin	2 µm	8.14 mm 8.35 mm	125 VAC	2 A	0.079 in	2 mm	Board Guide Glow Wire Compliant Pick and Place	Copper Alloy	6.4 mm	0.252 in
Molex 1511180730	Board to Board Cable	30	Square	Detent Lock	All	Header	Shrouded - 4 Wall	2 çm	78.7 çin	UL94 V-0	Surface Mount	0.079 in	2 mm	2	105 ░C	-55 °C	Gold	Solder	0.142 in	3.6 mm	Black	Male Pin	Tin	29.5 Áin	0.75 Ám	8.14 mm 8.35 mm	125 VAC	2 A	0.079 in	2 mm	Board Guide Glow Wire Compliant Pick and Place	Copper Alloy	6.4 mm	0.252 in
