2102092 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

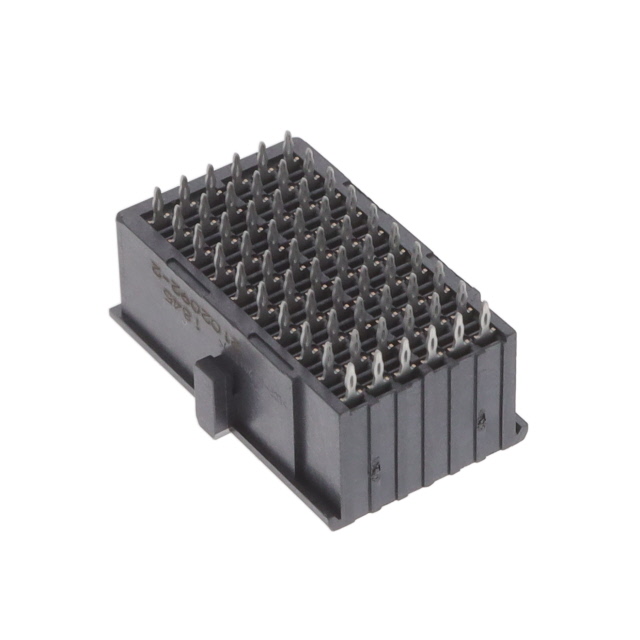

FORTIS ZD 2PR 10COL VERT END MOD
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Number of Columns | Current Rating (Amps) | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Termination | Number of Positions Loaded | Contact Finish | Pitch [x] | Pitch [x] | Connector Usage | Voltage Rating | Contact Finish Thickness | Contact Finish Thickness | Color | Mounting Type | Number of Rows | Connector Type | Number of Positions | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | 125 °C | -65 ░C | 10 | 1.5 A | 20 | 40 | Press-Fit | All | Gold | 0.075 in | 1.91 mm | Backplane Motherboard | 250 VAC | 50 µin | 1.27 µm | Black | Through Hole | 6 | Receptacle Female Sockets | 60 | UL94 V-0 |
