TDSR1350 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K

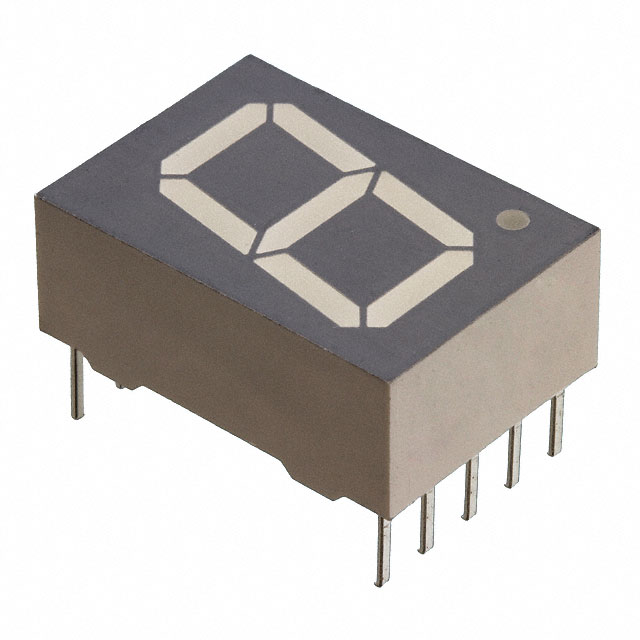

DISPLAY 7SEG 0.51" SGL RED 10DIP
| Part | Display Type | Number of Characters [custom] | Color | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Forward (Vf) (Typ) | Common Pin | Package / Case | Package / Case | Package / Case | Millicandela Rating [Min] | Millicandela Rating [Max] | Current - Test | Wavelength - Peak [custom] | Digit/Alpha Size | Digit/Alpha Size | Power Dissipation (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | 7-Segment | 1 | Red | 6.4 mm | 17.5 mm | 0.482 in | 0.252 in | 0.689 in | 12.25 mm | 1.8 V | Common Anode | 0.6 in | 15.24 mm | 10-DIP | 0.28 mcd | 3.6 mcd | 1 mA | 640 nm | 0.51 in | 13 mm | 185 mW |
