ED120 Series

Catalog

TERM BLK 2P SIDE ENT 5.08MM PCB

Part	Screw Thread	Contact Material - Plating	Torque - Screw	Torque - Screw	Operating Temperature [Min]	Operating Temperature [Max]	Clamp Material - Plating [custom]	Housing Material	Voltage	Current	Mounting Type	Color	Wire Termination	Number of Levels	Wire Gauge [Min]	Wire Gauge [Max]	Positions Per Level	Pitch	Pitch	Mating Orientation	Positions Per Level [custom]

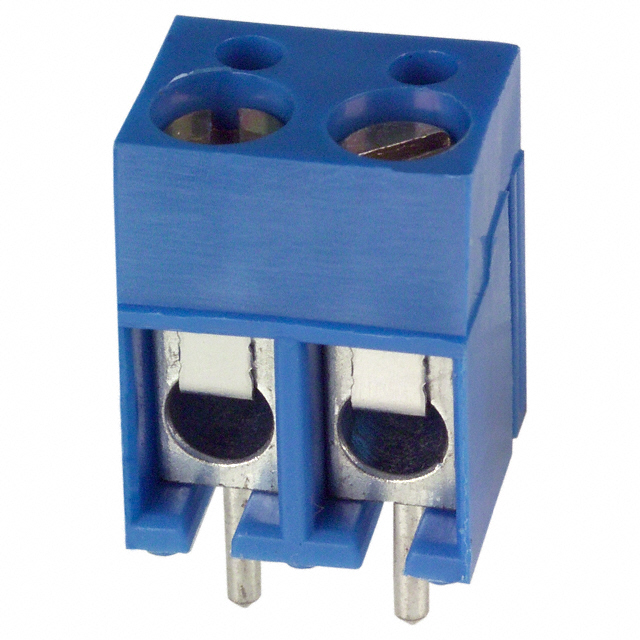

On Shore Technology Inc. ED120/2DS	M3	Brass	4.4 Lb-In	0.5 Nm	-30 ░C	105 ░C	Stainless Steel	Polyamide (PA) Nylon	300 VDC	15 A	Through Hole	Blue	Screw - Leaf Spring Wire Guard	1	14 AWG	22 AWG	2	5.08 mm	0.2 in	Horizontal with Board

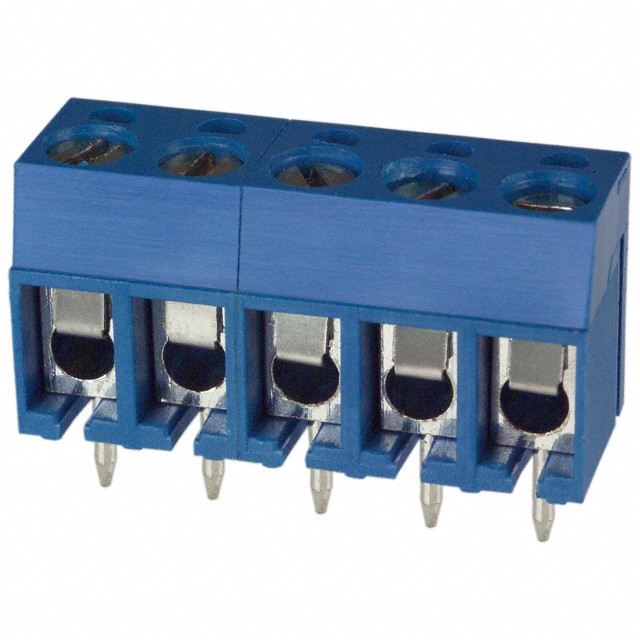

On Shore Technology Inc. ED120/5DS	M3	Brass	4.4 Lb-In	0.5 Nm	-30 ░C	105 ░C	Stainless Steel	Polyamide (PA) Nylon	300 VDC	15 A	Through Hole	Blue	Screw - Leaf Spring Wire Guard	1	14 AWG	22 AWG	5	5.08 mm	0.2 in	Horizontal with Board

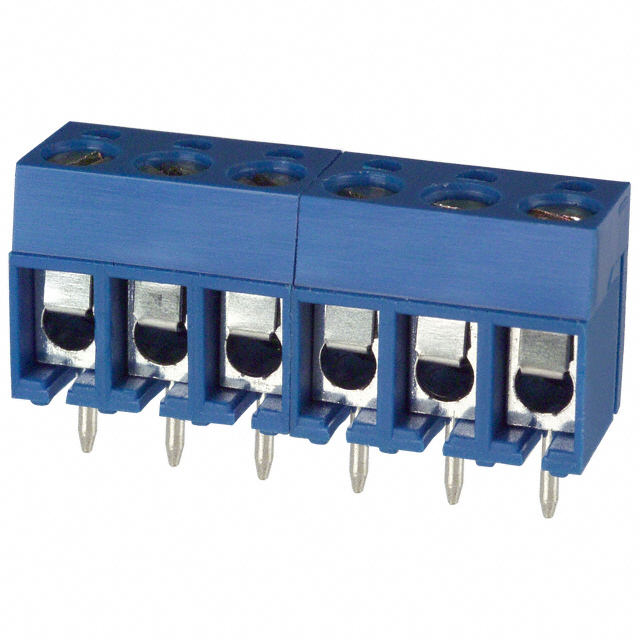

On Shore Technology Inc. ED120/6DS	M3	Brass	4.4 Lb-In	0.5 Nm	-30 ░C	105 ░C	Stainless Steel	Polyamide (PA) Nylon	300 VDC	15 A	Through Hole	Blue	Screw - Leaf Spring Wire Guard	1	14 AWG	22 AWG	6	5.08 mm	0.2 in	Horizontal with Board

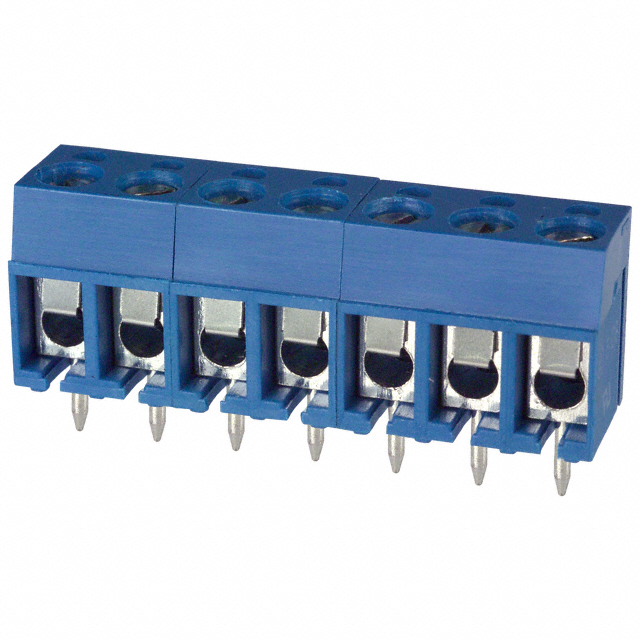

On Shore Technology Inc. ED120/7DS	M3	Brass	4.4 Lb-In	0.5 Nm	-30 ░C	105 ░C	Stainless Steel	Polyamide (PA) Nylon	300 VDC	15 A	Through Hole	Blue	Screw - Leaf Spring Wire Guard	1	14 AWG	22 AWG		5.08 mm	0.2 in	Horizontal with Board	7

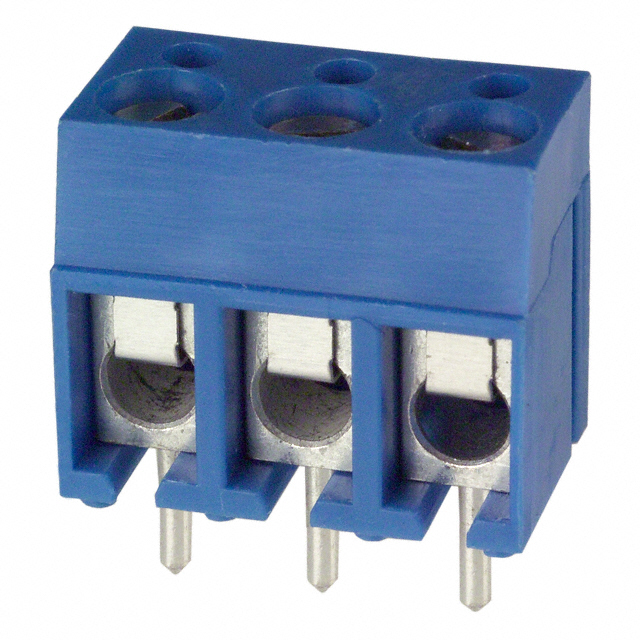

On Shore Technology Inc. ED120/3DS	M3	Brass	4.4 Lb-In	0.5 Nm	-30 ░C	105 ░C	Stainless Steel	Polyamide (PA) Nylon	300 VDC	15 A	Through Hole	Blue	Screw - Leaf Spring Wire Guard	1	14 AWG	22 AWG	3	5.08 mm	0.2 in	Horizontal with Board
On Shore Technology Inc. ED120/16DS	M3	Brass	4.4 Lb-In	0.5 Nm	-30 ░C	105 ░C	Stainless Steel	Polyamide (PA) Nylon	300 VDC	15 A	Through Hole	Blue	Screw - Leaf Spring Wire Guard	1	14 AWG	22 AWG	16	5.08 mm	0.2 in	Horizontal with Board
