0560-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type	Socket Depth	Socket Depth	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Contact Material

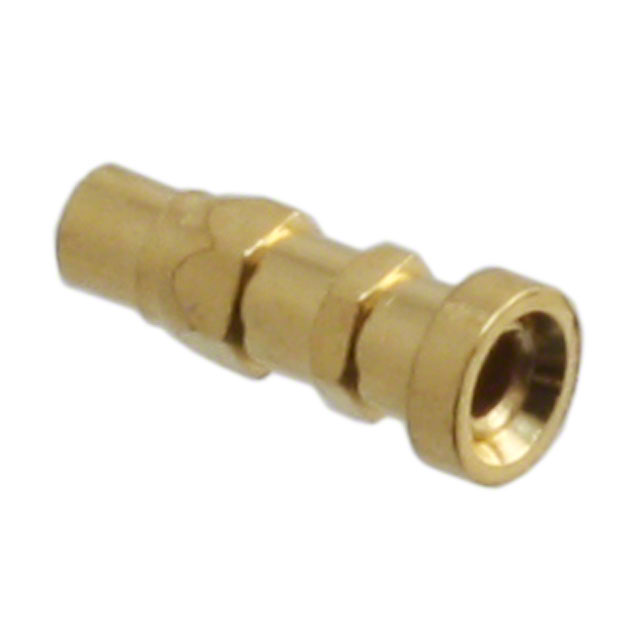

Mill-Max Manufacturing Corp. 0560-0-15-80-11-27-10-0	-55 C	125 °C	3.56 mm	0.14 in	0.031 in	0.79 mm	Hex Press-Fit	0.043 in	1.09 mm	No Tail	0.14 in	3.56 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	1.4 mm	0.055 in	30 Áin	0.76 Ám	Gold	Beryllium Copper
Mill-Max Manufacturing Corp. 0560-0-15-01-11-14-10-0	-55 C	125 °C	3.56 mm	0.14 in	0.031 in	0.79 mm	Hex Press-Fit	0.043 in	1.09 mm	No Tail	0.14 in	3.56 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	1.4 mm	0.055 in	10 Áin	0.25 Ám	Gold	Beryllium Copper
Mill-Max Manufacturing Corp. 0560-0-15-15-11-14-10-0	-55 C	125 °C	3.56 mm	0.14 in	0.031 in	0.79 mm	Hex Press-Fit	0.043 in	1.09 mm	No Tail	0.14 in	3.56 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	1.4 mm	0.055 in	10 Áin	0.25 Ám	Gold	Beryllium Copper
Mill-Max Manufacturing Corp. 0560-0-15-15-11-27-10-0	-55 C	125 °C	3.56 mm	0.14 in	0.031 in	0.79 mm	Hex Press-Fit	0.043 in	1.09 mm	No Tail	0.14 in	3.56 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	1.4 mm	0.055 in	30 Áin	0.76 Ám	Gold	Beryllium Copper

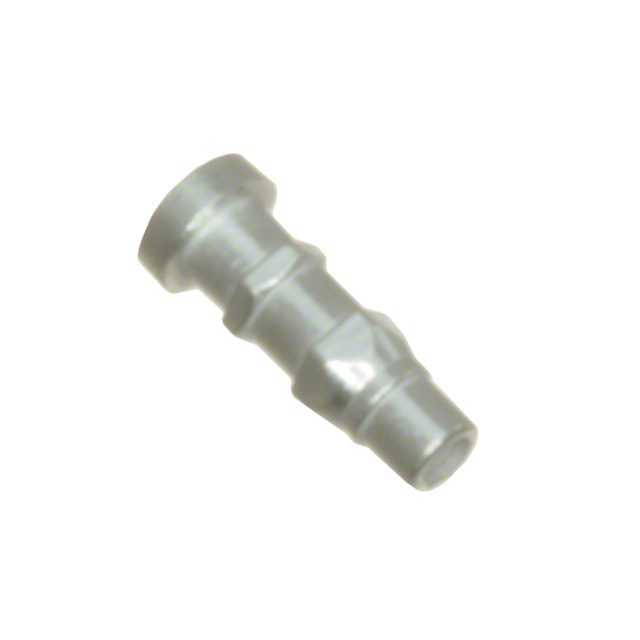

Mill-Max Manufacturing Corp. 0560-0-15-80-11-84-10-0	-55 C	125 °C	3.56 mm	0.14 in	0.031 in	0.79 mm	Hex Press-Fit	0.043 in	1.09 mm	No Tail	0.14 in	3.56 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	1.4 mm	0.055 in	100 µin	2.54 µm	Tin	Beryllium Copper
Mill-Max Manufacturing Corp. 0560-0-15-80-11-14-10-0	-55 C	125 °C	3.56 mm	0.14 in	0.031 in	0.79 mm	Hex Press-Fit	0.043 in	1.09 mm	No Tail	0.14 in	3.56 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	1.4 mm	0.055 in	10 Áin	0.25 Ám	Gold	Beryllium Copper
Mill-Max Manufacturing Corp. 0560-0-15-01-11-02-10-0	-55 C	125 °C	3.56 mm	0.14 in	0.031 in	0.79 mm	Hex Press-Fit	0.043 in	1.09 mm	No Tail	0.14 in	3.56 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	1.4 mm	0.055 in	100 µin	2.54 µm	Tin-Lead	Beryllium Copper
